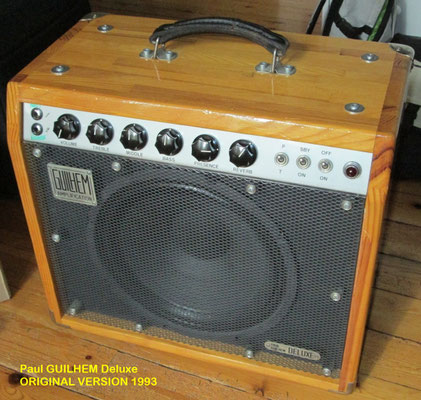

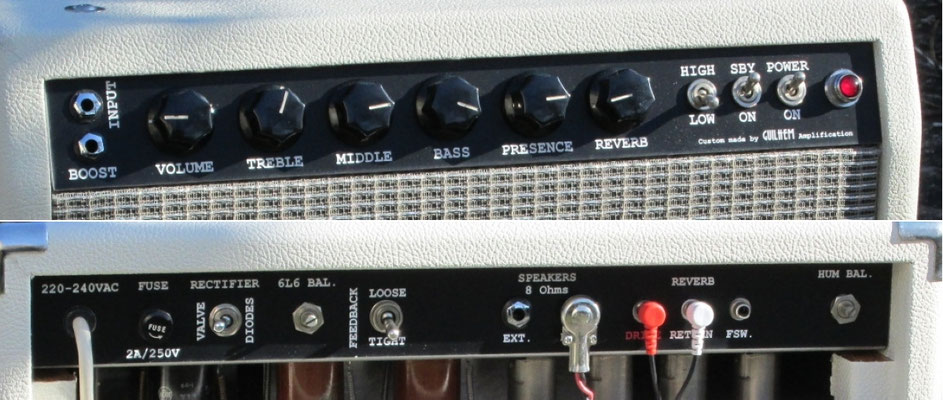

Construit initialement en 1993, le Paul GUILHEM Deluxe se situe entre un Fender Deluxe Reverb et un Fender Vibroverb, sans tremolo mais avec une reverb au timbre délicat et profond, un booster footswitchable et diverses options de configuration de son étage de puissance.

Originally built in 1993, the Paul GUILHEM Deluxe comes in-between a Fender Deluxe Reverb and a Fender Vibroverb, without the tremolo but with a deep enharmonic sounding reverb, a footswitchable booster facility and several selectable power stage modes.

SPECS :

- 22mm pinewood cabinet (now bicolor tolexed)

- 12" Eminence ME12-100PE8 speaker (renamed Guitar Legend 1218 today)

- aluminium chassis with vintage WWII or 50-60s transformers.

- Cathode bias (LO) / Fixed bias (HI) power stage modes.

- Valve / Diodes rectifier PSU modes.

- Tight / Loose feedback modes.

- footswitchable booster with constant-balanced reverb level.

- 3 springs long-tank reverb unit, shielded and in a damped bag.

- 4 position Presence selector.

- 14 to 24W RMS clean power output, depending on the power stage and PSU modes selected.

- dimensions (WxHxD) = 480x425x265mm

- weight = 23.5kg

Overdrive naturel de l'ampli / Natural overdriven tone of the amplifier :

Son clean / Clean tone :

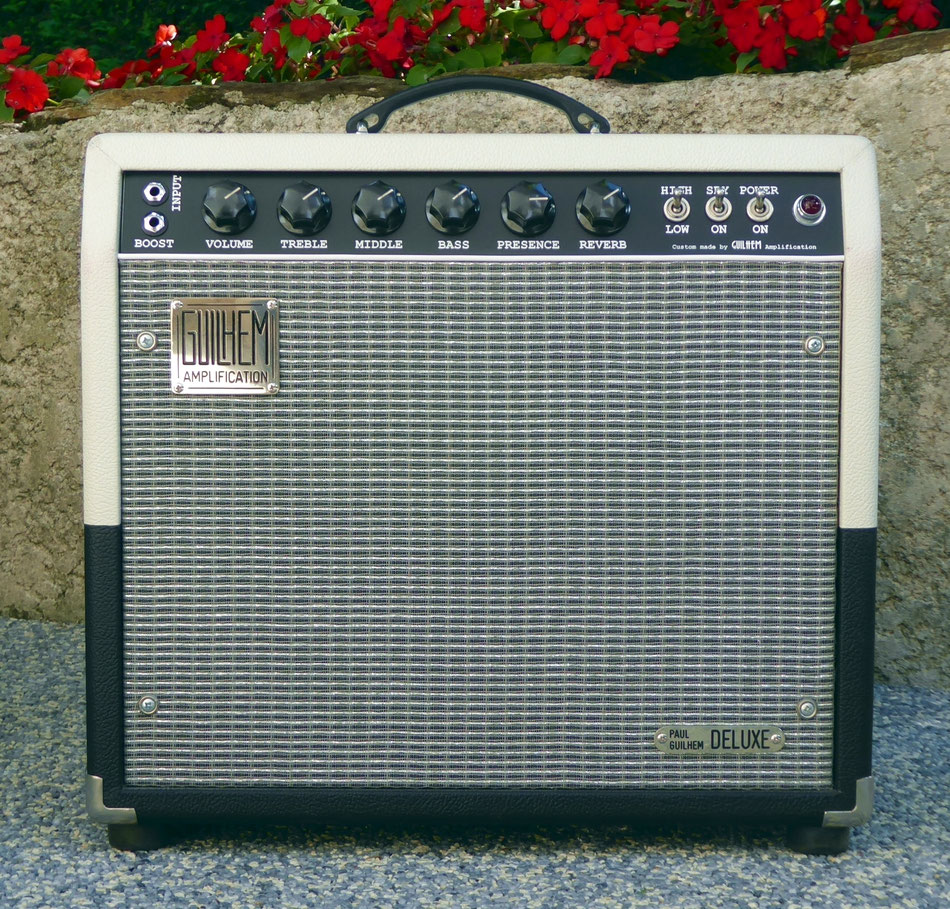

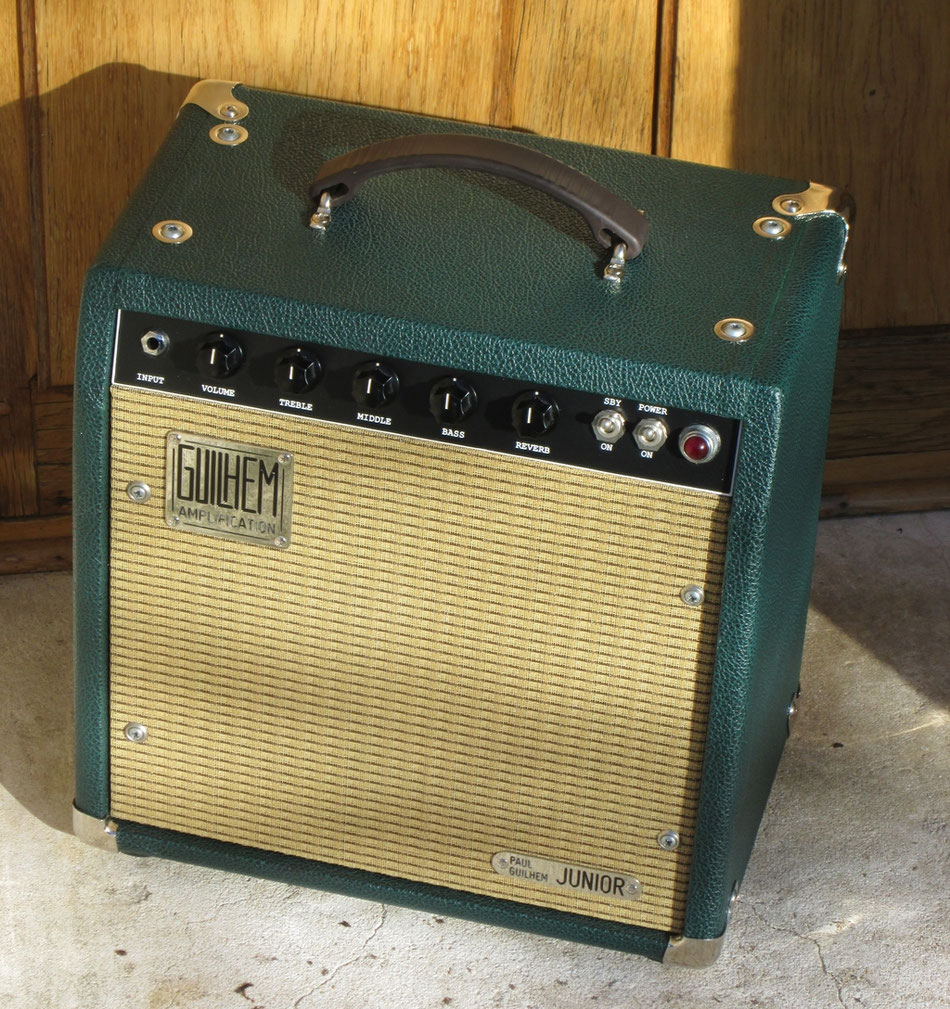

C'est la version compacte du Paul GUILHEM Deluxe. Elle se situe entre les FENDER Champ et Princeton Reverb mais avec une puissance supérieure à ces modèles.

This is a compact version of the Paul GUILHEM Deluxe, located between the FENDER Champ and the Princeton Reverb, but with a higher power than these two amps.

SPECS :

- 18mm plywood cabinet Levant Green Tolexed.

- 10" JENSEN NEO 10-100 Neodymium speaker.

- aluminium chassis with vintage WWII or 50-60s transformers.

- Triode (LO) / Pentode (HI) power stage modes.

- 5-position Presence selector.

- footswitchable booster with constant-balanced reverb level.

- 3 springs short-tank reverb, shielded and in a damped bag.

- 5 to 23W RMS clean power output, depending on the power stage mode selected.

- dimensions (WxHxD) = 350x365x225mm

- weight = 14.5kg

 Son clean et overdrive naturel de l'ampli / Natural clean and overdriven tone of the amplifier :

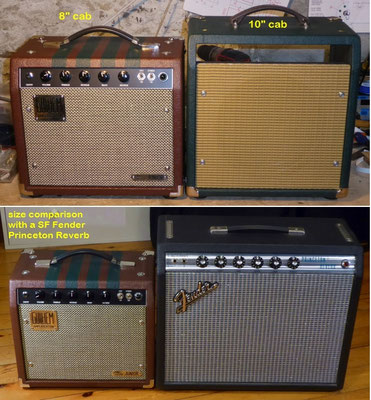

Nouvelle version compacte, utilisant un haut-parleur de 8" Eminence ME8-100...

New compact version, fitted with an Eminence ME8-100 loudspeaker...

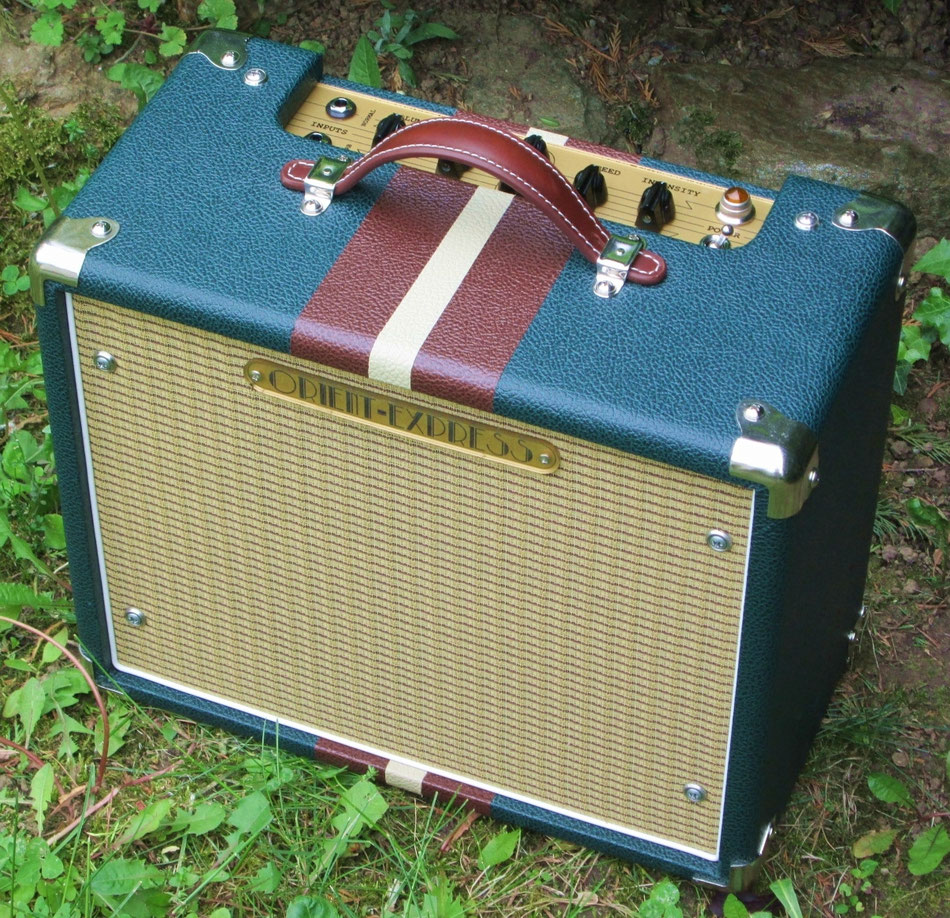

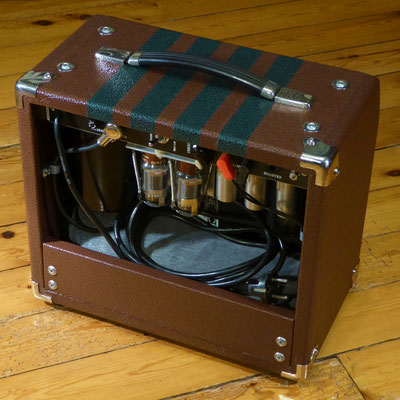

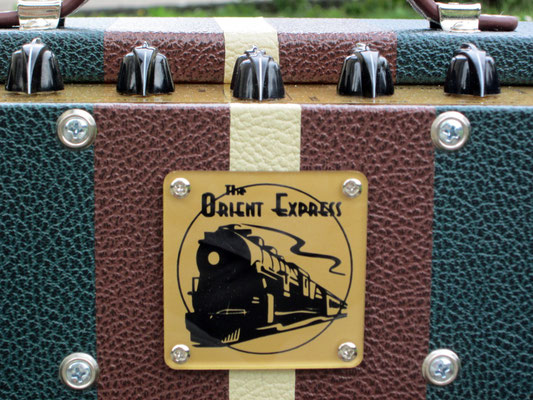

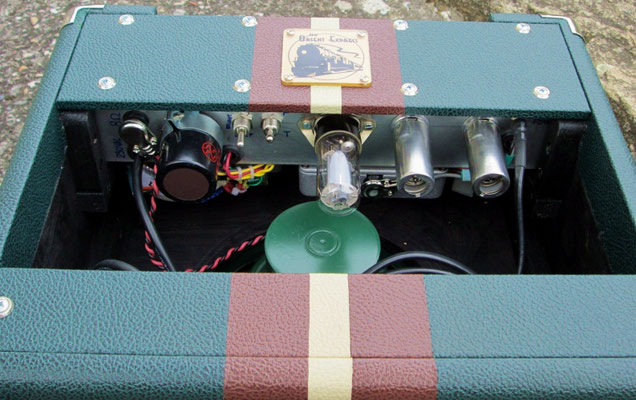

C'est un petit modèle inspiré par l'ambiance bagagerie précieuse façon Orient-Express... Parfait pour une utilisation "at home", pour l'enregistrement ou le jeu en petit comité.

This small amplifier takes its inspiration on the classy luggagery of the Orient-Express... Ideal for home use, for recording or small gigs and venues.

SPECS :

- Normal (HI) / Power Attenuator (LO) modes.

- Tight (FB) / Loose (no FB) / Deep (no FB + treble damping) modes.

- integrated EH Holy Grail Nano digital reverb unit.

- footswitchable tremolo adjustable in speed and intensity, à la Vibro-Champ FENDER.

- 15mm plywood cabinet

- Tri-color Tolex covering : Levant Green with Cocoa Brown and Cream stripes.

- AlNiCo 8" UTAH "John Deere tractor green" from 1953, reconed.

- 3.2 RMS power output clean / 5WRMS overdriven.

- dimensions (WxHxD) = 385x330x200mm

- weight = 8.9kg

 Dirty Tremolo Soul rhythm :

Dirty Tremolo Rock'n'Roll rhythm :

"Goldfinger" Tremolo test :

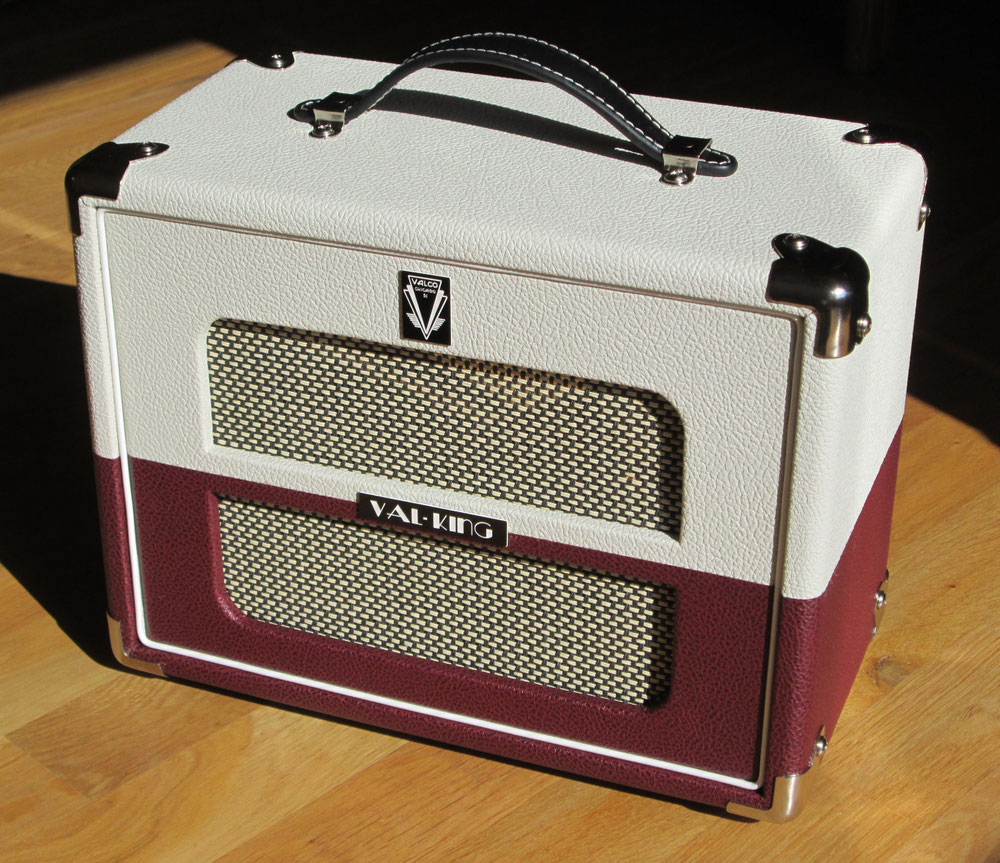

Le VAL- KING est encore plus petit que l'ORIENT - EXPRESS mais un peu plus puissant. Il se destine au même usage : "at home", enregistrement, petits concerts. Son style bicolore s'inspire des amplis VALCO des années 40-50. Il excelle dans le style Jazz, avec les guitares Archtop...

The VAL- KING is smaller than the ORIENT- EXPRESS, but just a bit more powerful. Also perfect for home use, recording, small gigs in small venues. Its bi-colorism comes from the style of the 40s-50s VALCO amplifiers. That's the amp for Jazz playing with an Archtop guitar...

SPECS :

- 12AX7 preamp and JAN-6L6WGB/5881 Tung-Sol powered.

- integrated EH Holy Grail Nano digital reverb unit.

- 15mm plywood cabinet

- Two-tone Tolex : Ivory White and Cocoa Redwine.

- 8" Vintage 47 (Tone Tubby) hemp cone AlNiCo loudspeaker.

- 7W RMS power output.

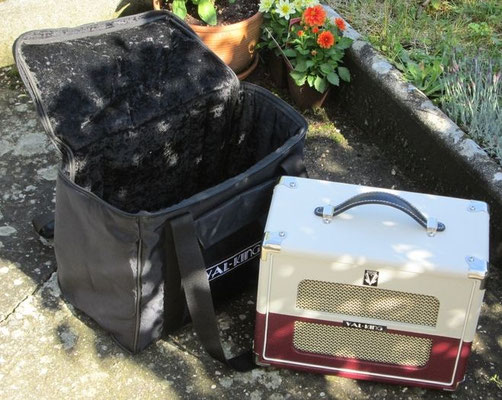

- Custom-made gig-bag by Visiondann amp covers.

- dimensions (WxHxD) = 345x270x180mm

- weight = 7.3kg

 Clean Jazz tones :

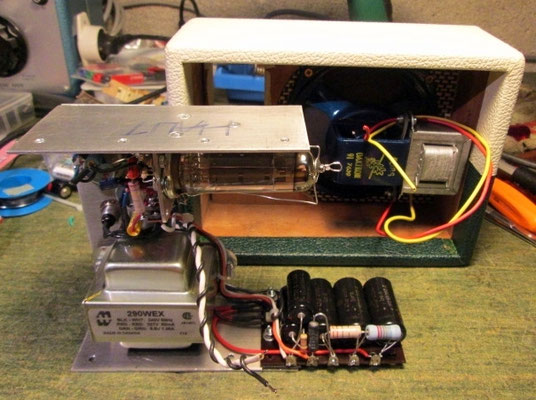

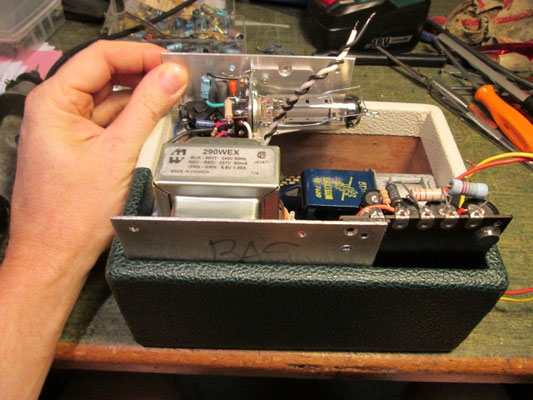

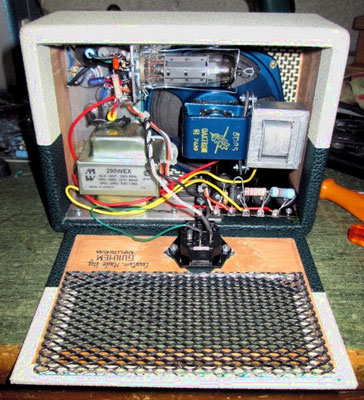

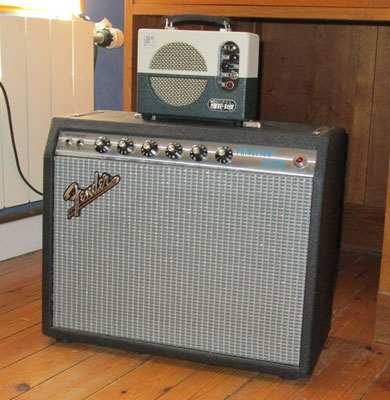

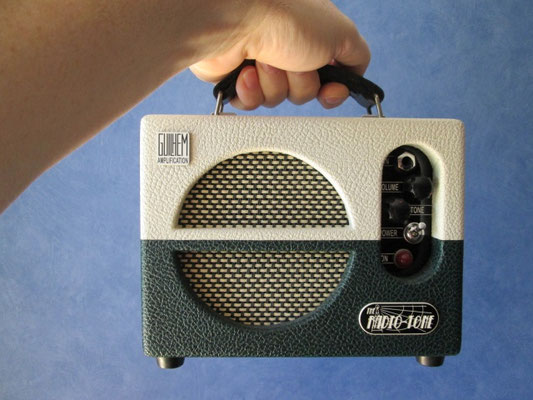

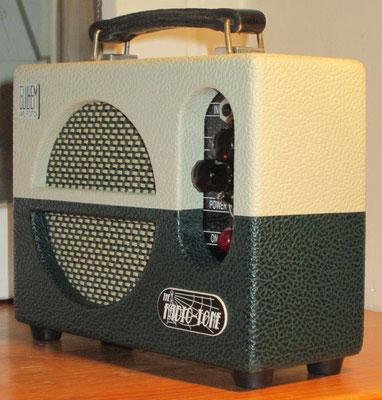

e Radio-Tone est un combo ultra-compact, capable d'entrer dans un étui de guitare... Et à lampes, bien sûr. Peut-être l'un des plus petits  jamais construit ? Mais tout à fait utilisable !

The Radio-Tone is a compact tube combo amplifier, able to fit in a guitar case. Maybe one of the smallest ever built ? Plentifully playable though !

SPECS :

- 10mm plywood cabinet.

- 2 tone Tolex Ivory White and Levant Green covered

- standalone unit : no ext. adaptor, 240V powered.

- ECL86/6GW8 preamp  & power amp combined tube.

-  2.5W RMS output power clean tone.

- 60's 5" 1/2 OAKTRON AlNiCo NOS automotive speaker.

- 1 Tone / 1 Volume.

- dimensions (WxHxD) = 200x150x80mm

- weight = 1.9kg

Sound Sample : Squier Std Strat 2005, neck PU, a touch of EHX Cathedral reverb, bluesy vintage smooth crunch

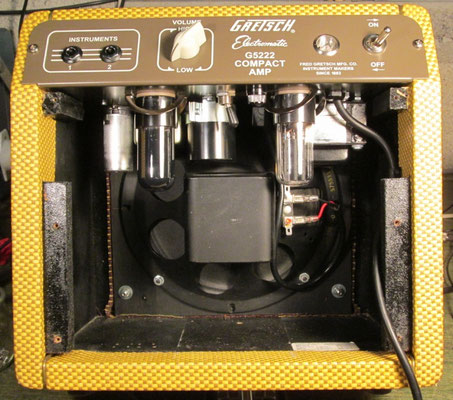

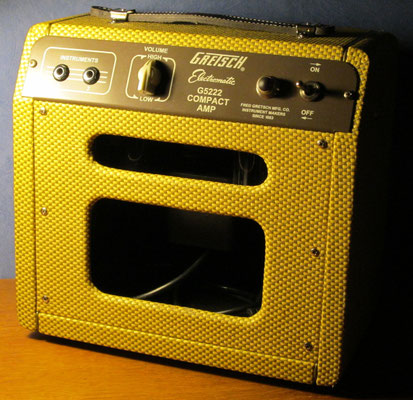

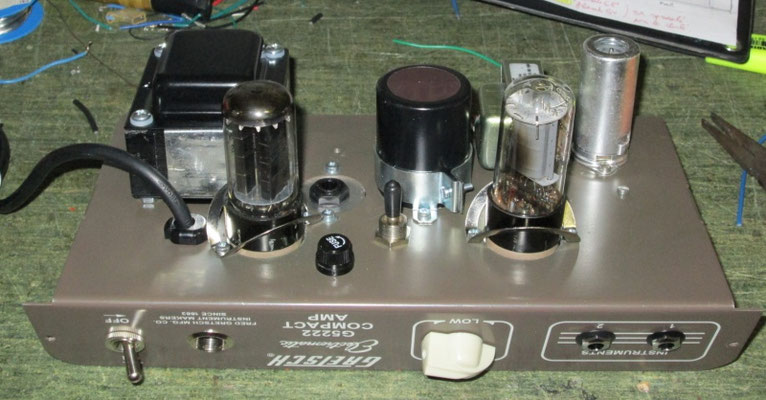

C'est une version "Vintage Custom Modified" du petit GRETSCH G5222 ElectroMatic Compact Amp,  basé sur un circuit de Fender Champ 5E1 mais modifié. Cet ampli appartient désormais à un ami :)

This is a "Vintage Custom Modified" version of the tiny GRETSCH G5222 Electromatic Compact Amp, based  on modified Fender Champ 5E1 design. This amp now belongs to a friend :)

SPECS :

- Hanwired turret board wiring.

- Satin Polyurethane clear coat on tweed fabric.

- tubes = 12AX7 / 6V6GTA / 5Y3GT.

- 3-position amp mode selector (Tight/Raw/Boost).

- unique Volume control.

- 1956 8" Heppner AlNiCo Speaker.

-  4W RMS Clean / 5W RMS Overdrive.

- dimensions (WxHxD) = never measured...

- weight = circa 7kg IIRC

 Sorry, I missed to record samples with this amp... To have an idea, think "Tweed Champ Tone !"

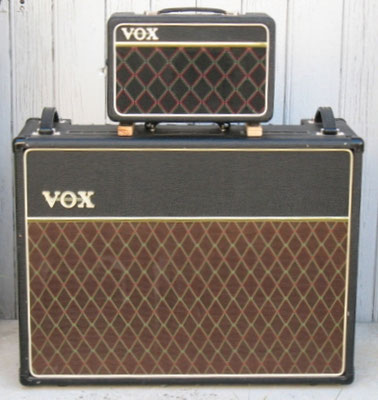

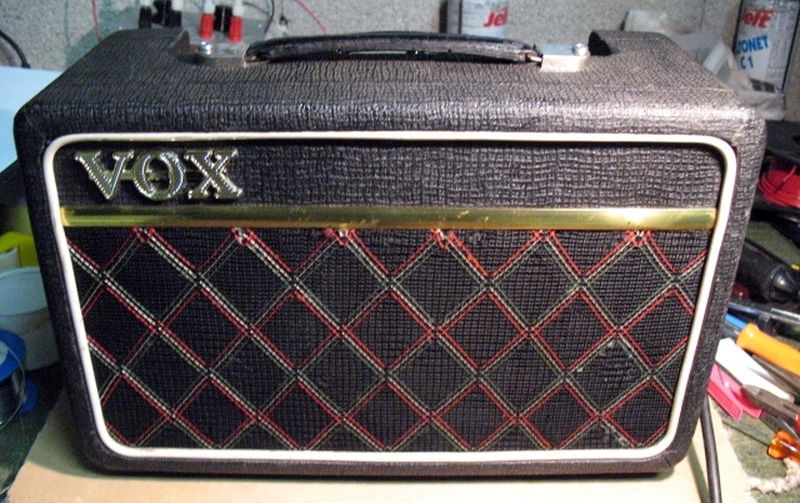

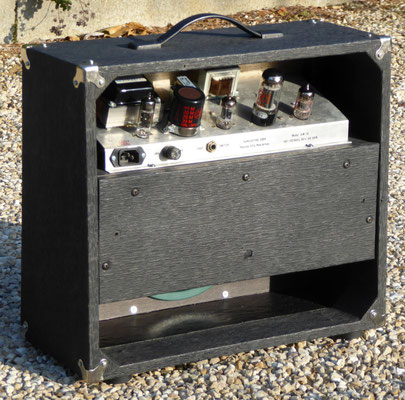

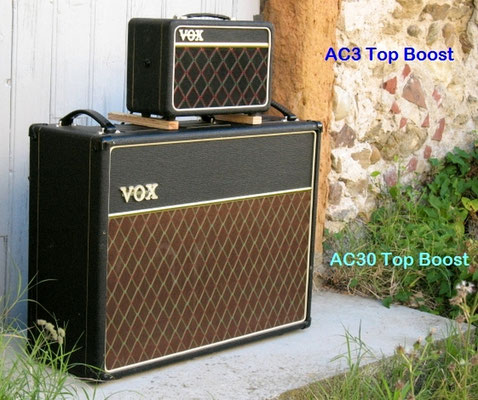

Réalisé en 2009, donc bien avant la réédition du VOX AC4 RI, ce VOX AC3 Top Boost est construit avec le chassis et le cab modifiés d'un VOX Escort fin 60's début 70's, dont les circuits et le haut-parleur étaient moribonds... Il s'agit d'un circuit à tubes (voir schéma) qui n'a aucun mal à faire oublier le circuit solid-state original !

Buit in 2009, so before the existence of the VOX AC4 RI, this VOX AC3 Top Boost is built with the chassis and the cab of a defunct VOX Escort from the late 60's early 70's. This is now a tube circuit (see schematic), which surpasses easily the original solid-state circuit !

SPECS :

- 1x 12AX7/ECC83, 1x 6BQ5/EL84.

- HI / LO inputs.

- 1 Volume, 1 Tone.

- 3-position Mode switch = pentode / pentode with attenuated highs / triode.

- 5" SIARE 25Wrms all paper cone speaker.

- Power output = 4Wrms clean / 5Wrms overdriven in pentode mode.

- Weight = 6kg

- Dimensions = 210x140x330mm

 Dirty Soul-Funk : Fender Eric Johnson Strat 2005, amp alone, no FX, demo played by my pal "Dood" :)

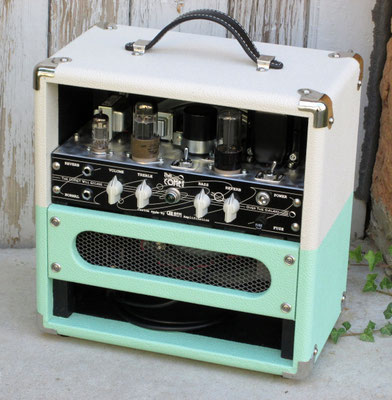

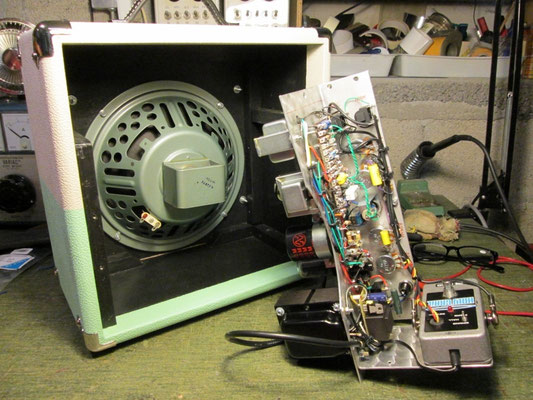

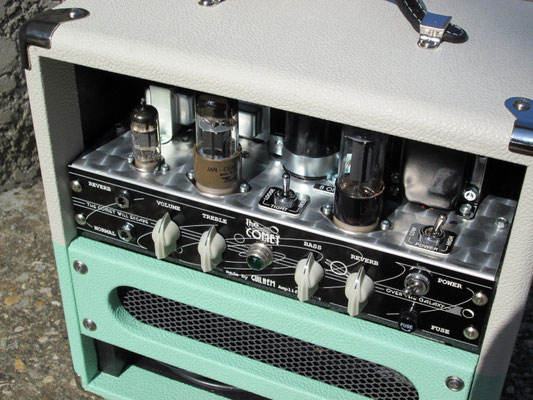

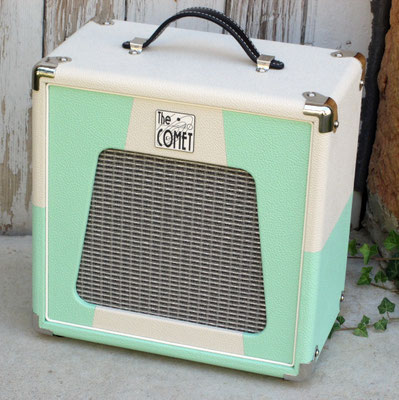

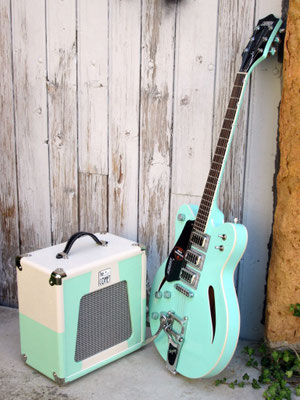

The COMET will escape over the galaxy... Version agrandie du VAL-KING, il se destine au même usage : at home, enregistrement, petits concerts. Son style bicolore Ivory White et Surf Green s'inspire d'un ampli VALCO Spectator tourné à la sauce Rock'n'Roll/Surf music...

The COMET is bigger version of the VAL-KING . Also perfect for home use, recording, small gigs in small venues. Its bi-colorism Ivory White plus Surf Green comes from the style of  a VALCO Spectator amp which would have fallen in a 60's Rock'n'Roll/Surf music craze...

SPECS :

- NOS tubes : RTC-STTA 12AX7WA preamp,  JAN-CEA 5992 USAF Bendix power, plus 5Y3GT Brimar rectifier.

- integrated EH Holy Grail Nano digital reverb unit.

- 18mm plywood cabinet.

- Two-tone Tolex : Ivory White and Surf Green.

- 1957 10" UTAH AlNiCo loudspeaker (reconed).

- 4W RMS clean tone power output / 6WRMS overdriven.

- HI (normal) and LO (power attenuator) mode switch.

- Loose/Tight/Deep tone mode switch.

- Dimensions = 340x340x200mm.

- Weight = 7.4kg.

 Blues lead with Gibson ES335-TD :

60s Twang with "Lipstick" pickups :

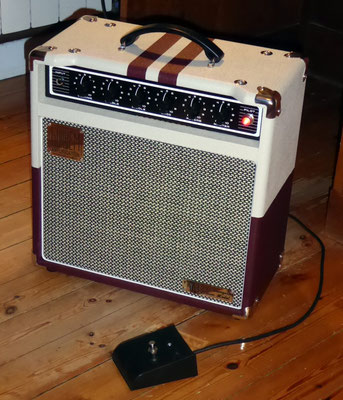

Cet ampli est en quelque sorte un mix Fender / Marshall. Il permet d'obtenir de beaux sons clairs mais également une belle palette de sons "sweet spot" allant d'un crunch léger a lourd, en jouant sur le volume et le master. Parfait pour jouer à la maison, en répétition ou en petits concerts. C'est un cadeau offert à un ami luthier amateur de talent :)

This amplifier is somewhat a Fender / Marshall mix. You can get nice clean tones but you can also dial in a good array of "sweet spot" tone, ranging from subtle to heavy crunch, by playing between the volume and the master. Perfect for home playing, reharsal and small venues. It's a gift offered to a skilled amateur luthier friend :)

SPECS :

- 15mm plywood cab.

- 2 tone Tolex covered Cocoa Redwine and Ivory White.

- 10" Eminence V1030 speaker.

- Power output = 10W RMS clean, 13.5W RMS overdriven.

- Classic Fender reverb circuit, balanced when booster is engaged.

- 8AB3C1B reverb unit in damped bag and shielded..

- 3x12AX7, 1x12AT7, 2x6BQ5 in cathode bias.

- Footswitchable booster, allowing a clean-crunch facility.

- Dimensions (WxHxD) = 400x400x200 mm.

- Weight = 11.6kg.

Clean Jazz tone :

Rock Blues Dirtyness with and without Booster :

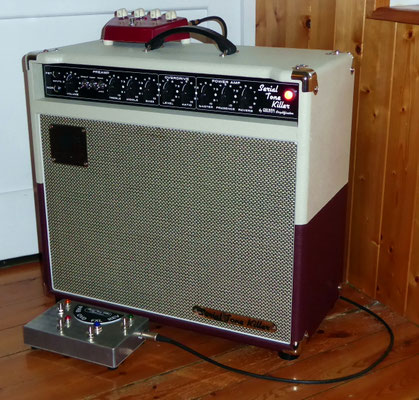

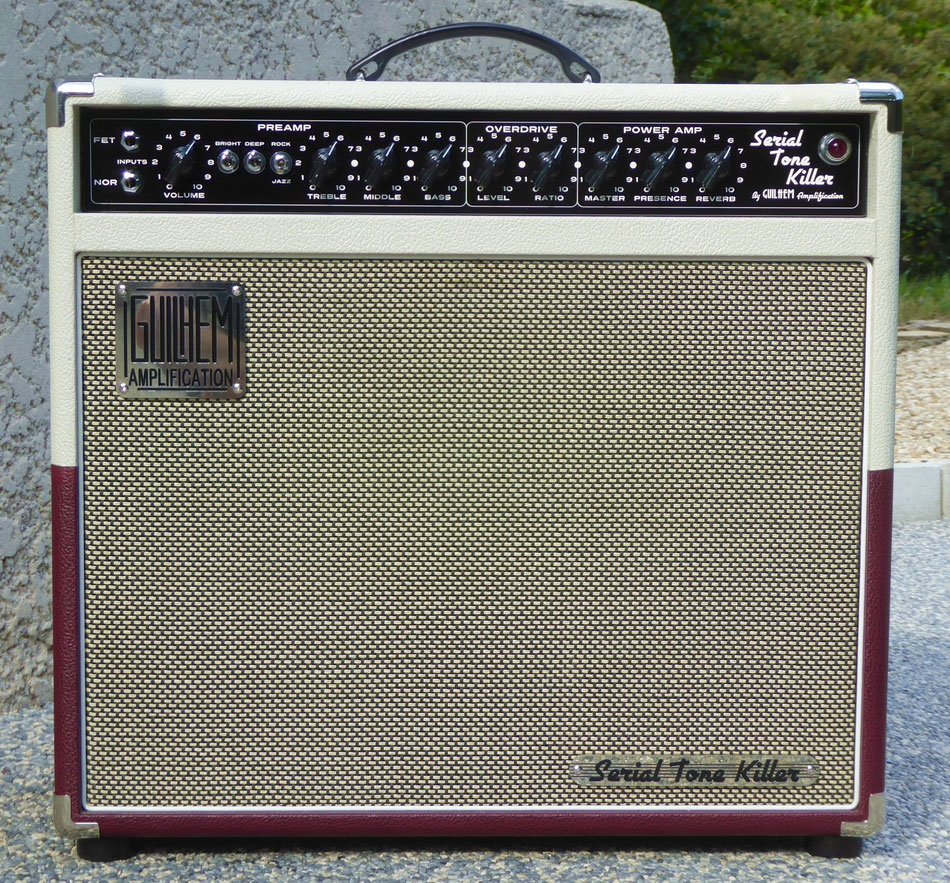

Le Serial Tone Killer est une version - très modifiée - du célèbre amplificateur Dumble Overdrive Special : ses possibilités sonores sont élargies et moins centrées uniquement sur le style Rock. En outre, il offre des options supplémentaires par rapport à l'original, augmentant encore sa versatilité vers d'autres styles musicaux. Merci à Nik Azam / Ceriatone pour son assistance, et non merci aux membres dogmatiques, dédaigneux et jaloux du forum TAG (The Amp Garage).

The Serial Tone Killer is a very modified version of the famed Dumble Overdrive Special : its sonic possibilites are enhanced and less exclusivery Rock-orientated. Moreover, it offers supplementary options versus the original, adding to its versatility for other musical styles. Thanks to Nik Azam / Ceriatone for his assistance, and no thanks to the TAG  (The Amp Garage) forum members for their uglyness, dogmatism and jealousy.

SPECS :

- selectable power output modes : 5W / 15W / 30W / 90WRMS clean tone.

- footswitchable overdrive, booster, reverb and FX Loop facilities.

- Jazz (more Fendery) and Rock (more Marshally) tailored tone modes.

- low-level FX Loop (-10dBm) stompboxes compliant.

- integrated 4x9VDC DC regulated PSU facility.

- integrated EXH Holy Grail Nano reverb unit.

-  3x 12AX7/ECC83 + 4x Tung-Sol NOS JAN-6L6WGB/5881.

- dimensions (WxHxD= 530x480x260mm.

- weight : 28.5kg, including FSW, cords, padded cover.

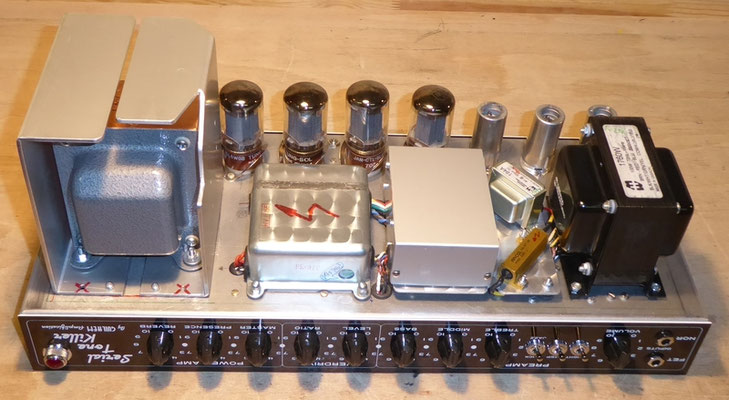

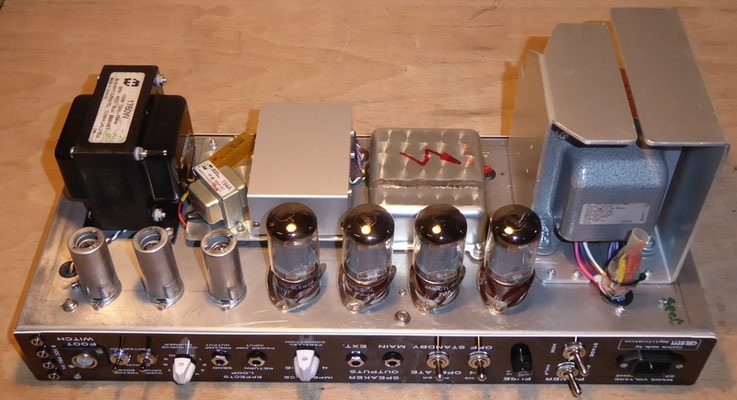

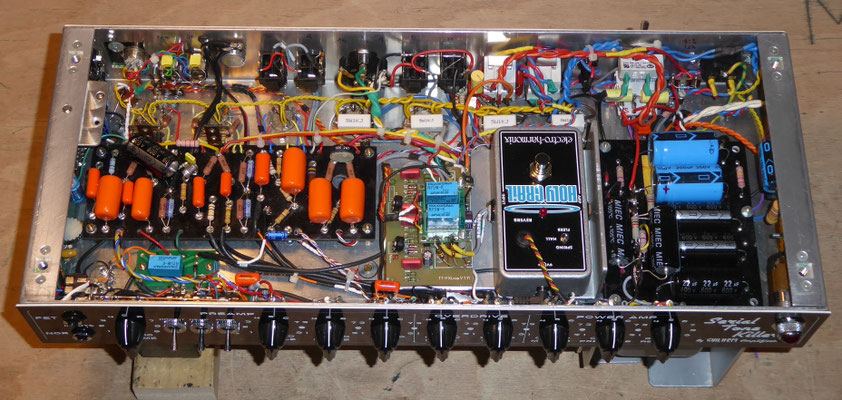

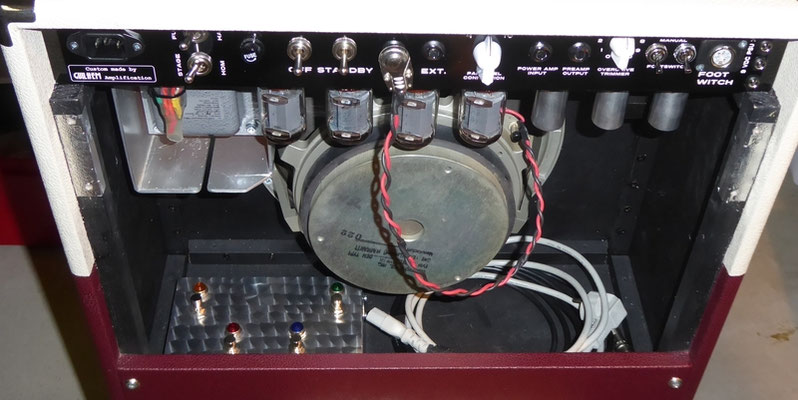

Vues du châssis - Chassis views :

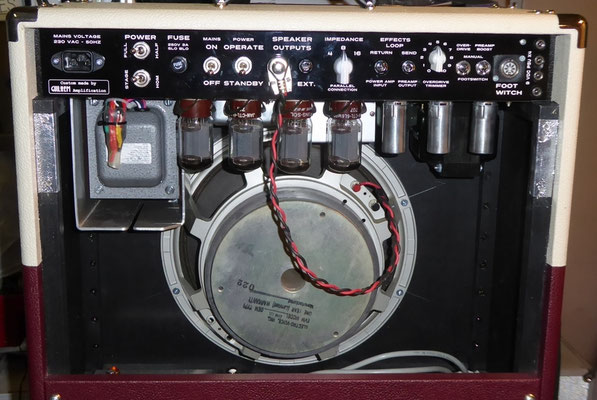

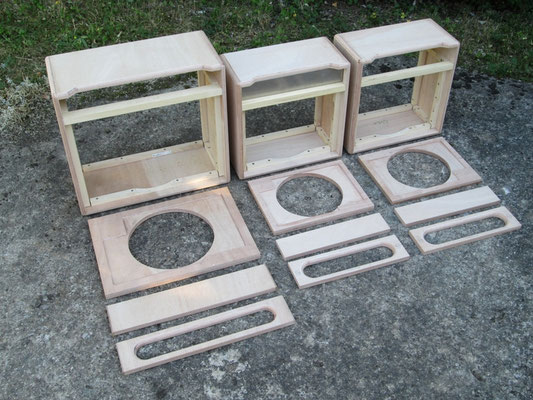

Vues du cabinet et de l'amplificateur terminé - Cabinet and finished amp views :

Ci-dessous une série de samples courts pour donner une idée des possibilités sonores du Serial Tone Killer :

Below a group of short samples to give you an idea of the tonal possibilities of the Serial Tone Killer :

Surf  style with Danelectro Orange Blossom Special LH - a Carl Martin Red Repeat was in the FX loop :

Santana style with Epiphone LPSII LH n°2 :

Soul style with Squier Telecaster CV50 LH :

Rock'n'Roll style with Gretsch G6119LH Tennessee Rose :

Rock Rhythm style with SuperCharger LH :

Rock Lead style with SuperCharger LH again - a Carl Martin Red Repeat was in the FX loop :

Jazz style with Gretsch G100 Synchromatic (LH converted) fitted with Kent Armstrong "Monkey-on-a-Stick" pickup :

Deep Purple style with 2005 modded Squier Standard Stratocaster LH :

Blues style with 1980 Gibson ES-335TD LH :

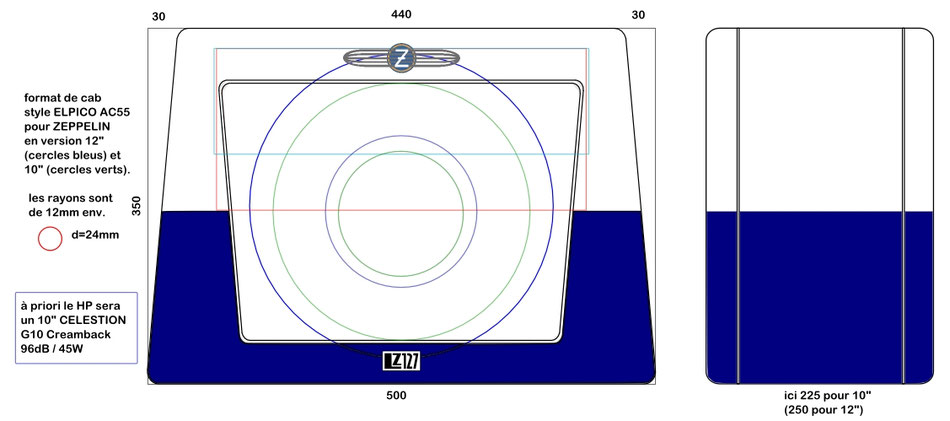

Prochain projet... A venir ! / Next project... To come !

Prochain projet... A venir aussi ! / Next project... To come also !

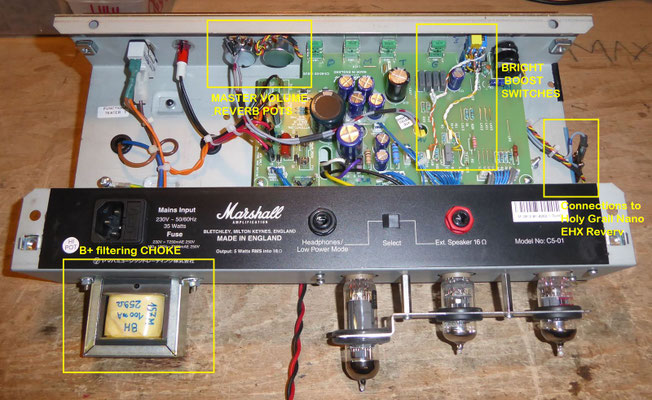

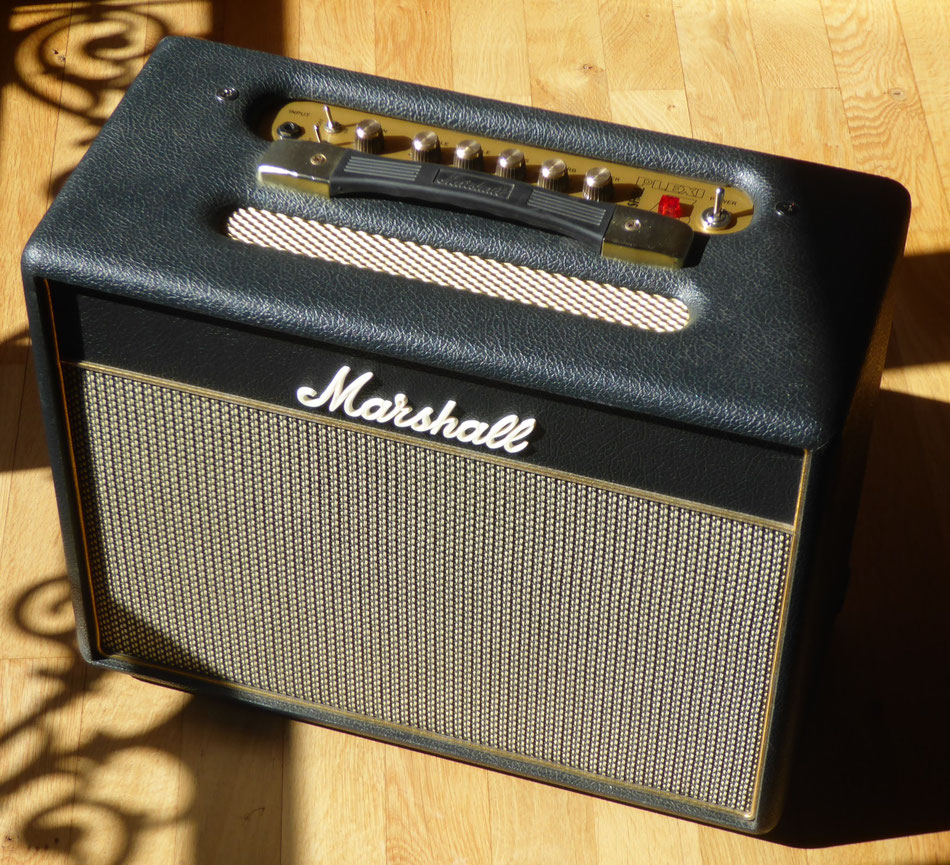

Le MARSHALL PLEXI 5 n'est rien d'autre qu'un Marshall Class 5 modifié...

Le Marshall Class5, produit de 2009 à 2012, a connu trois évolutions successives :

- La version I, avec panneau arrière tout bois et fente basse, était sujette à des vibrations mécaniques inacceptables dues à un manque de rigidité de l'assemblage, qui ont hélas nuit à la réputation du modèle.

- La version II, avec panneau et grille arrières, corrige ce défaut et introduit un atténuateur de puissance 0.1W.

- La version III offre en plus le montage vertical des tubes, encore moins soumis aux vibrations, de fait.

Il s'agit ici d'une version III, datée de 2012.

The MARSHALL PLEXI 5 is nothing else than a modified Marshall Class 5...

The Class 5, produced from 2009 to 2012, endured three successive revisions :

- Version I, with full wood back panel and low vent, was inacceptably ridden with mechanical vibrations and adverse noises due to a lack of rigidity of the assembly, which entailed the reputation of the model.

- Version II, with back panel and back grille, corrected that flaw and introduced the Lo 0.1W feature.

- Version III offered moreover the vertical mounting of the tubes, reducing furthermore the influence of vibrations.

Here we have a version III, dated from 2012.

SPECS :

- selectable power output modes : 5W / 0.1WRMS.

-  BOOST and BRIGHT SW.

- integrated EXH Holy Grail Nano reverb unit.

- MASTER VOLUME control.

- choke added on HV supply

-  2x 12AX7/ECC83 + 1x 6BQ5/EL84.

- Celestion G10M "Green Back" loudpseaker 16ohms.

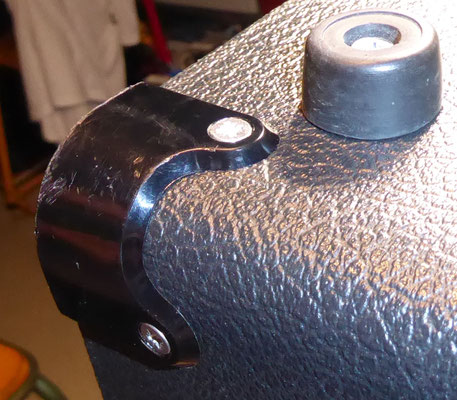

- protection corners on lower back of the cab.

- dimensions WxHxD= 495x415x230mm.

- weight : 13.7kg.

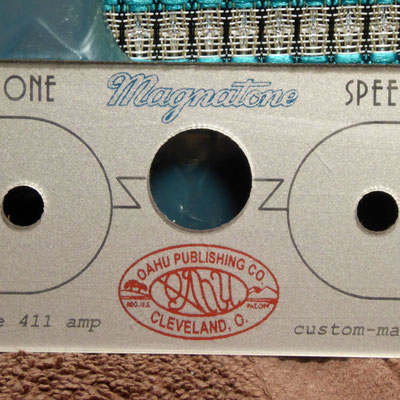

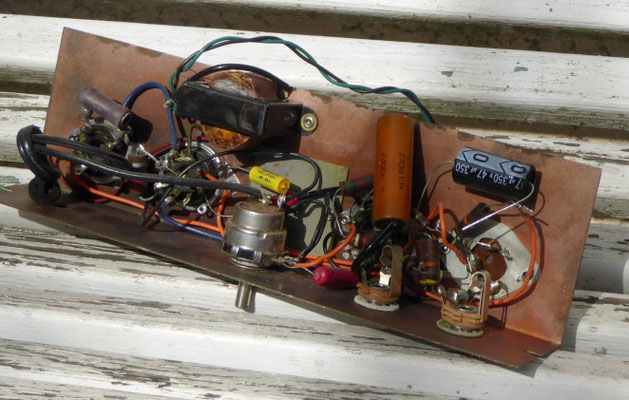

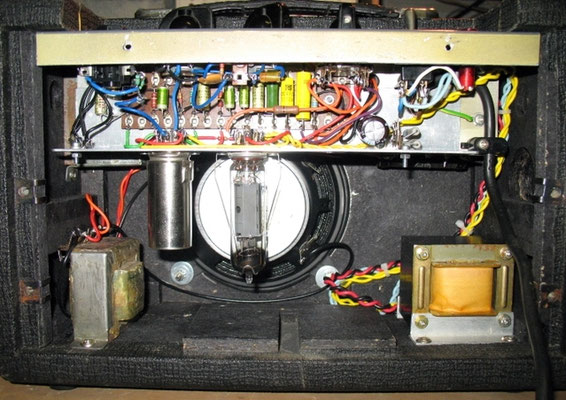

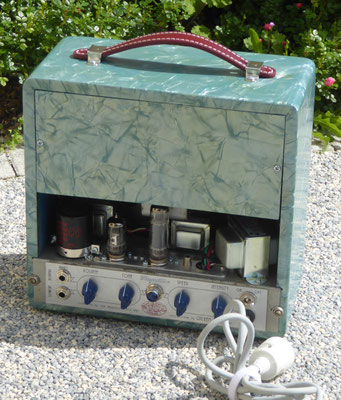

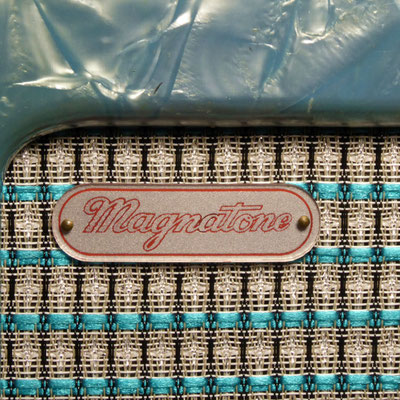

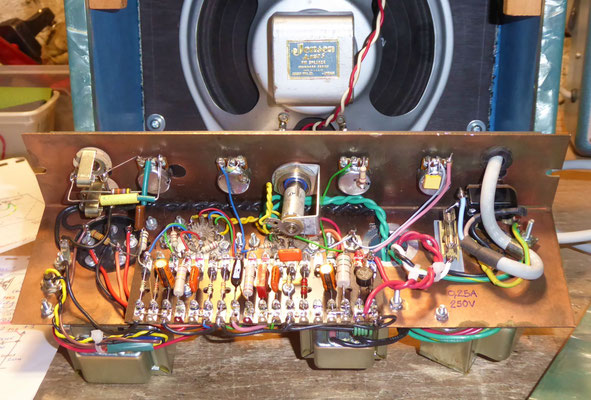

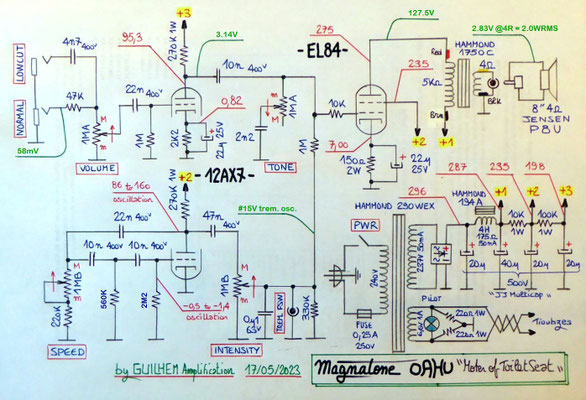

C'est une restauration-modification d'un amplificateur OAHU / Magnatone des années 50, recouvert de ce fameux gainage "MOTS" (Mother Of Toilet Seat), qui était en général vendu avec un Lap Steel guitar assorti, de la marque. Le circuit original sans transformateur et sous 117V a été remplacé par un mélange de Magnatone model 411 et de Danelectro DM-10...

This is a restoration-modification of a 50s OAHU / Magnatone "Mother of Toilet Seat" covered, which was usually sold as a set with an assorted Lap Steel of the brand. The original no-transformer / 117V circuit has been replaced by a mix of a Magnatone 411 and a Danelectro DM-10...

SPECS :

- Power output 2WRMS clean / 4WRMS fully cranked

- VOLUME / TONE / SPEED / INTENSITY controls.

- Bias vary tremolo.

-  1x 12AX7/ECC83 + 1x 6BQ5/EL84.

- 1950 original JENSEN G10M P8U "Standard Series" loudpseaker 4ohms.

- dimensions WxHxD= 280x270x150mm.

- weight : 6.0kg.

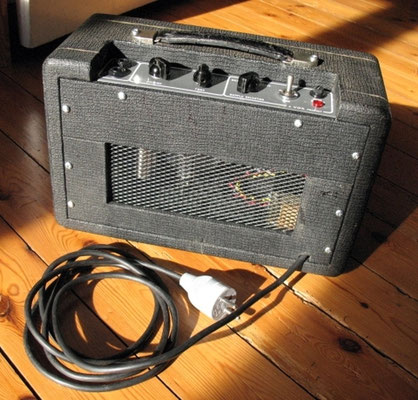

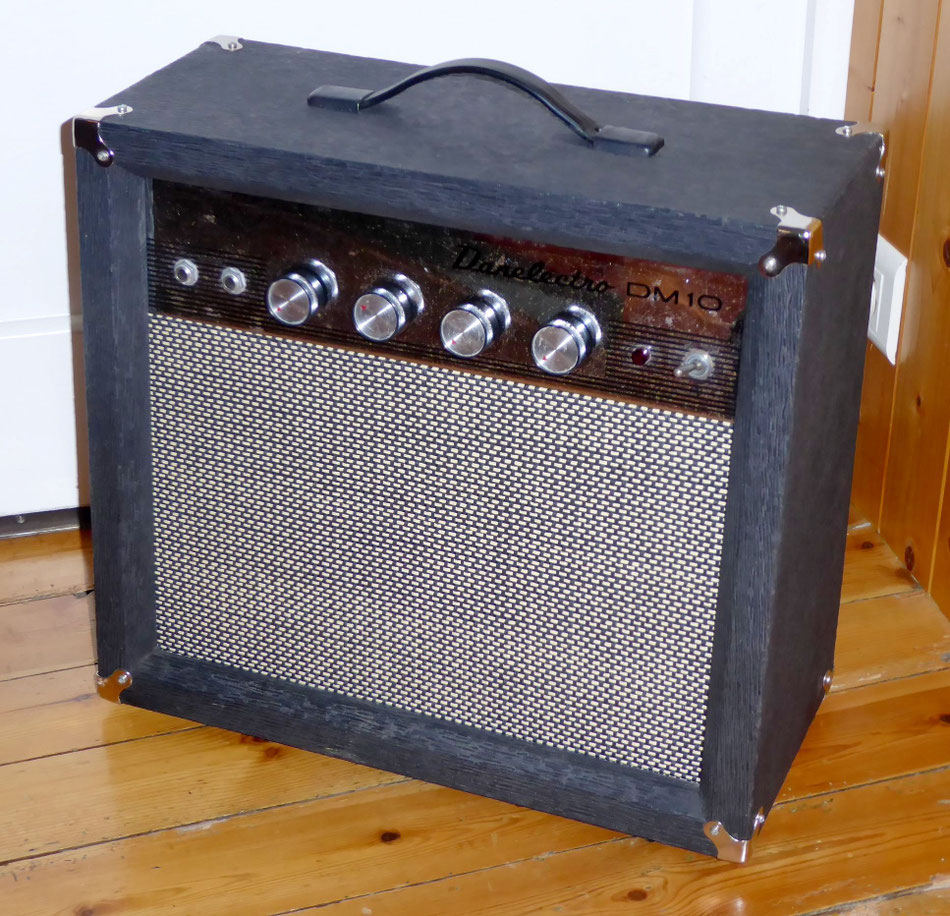

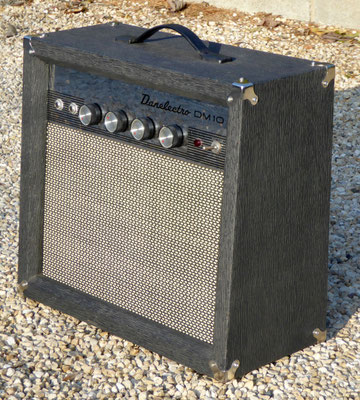

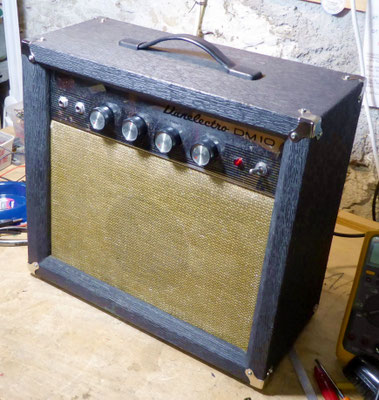

Une autre restauration-modification d'un amplificateur vintage de 1964, un DANELECTRO DM-10, un des concurrent du fameux FENDER Vibro-Champ... L'alimentation originale en 117V a été remplacée par une en 240V, avec un filtrage sérieux par self. Le transformateur de sortie était HS et remplacé également. Quelques rares autres composants ont été changés, mais sans plus...

Here's another restoration-modification of a 1964 DANELECTRO DM-10, one of the numerous challengers to the famous FENDER Vibro-Champ. The original PSU has been replaced for a 240V one, with a serious fiiltering by choke. The output transformer was dead and has been replaced too. Very few other parts needed to be changed to resurrrect this little amp...

SPECS :

- Power output 2WRMS clean / 4.5WRMS fully cranked

- VOLUME / TONE / VIB. STRENGTH / VIB. SPEED controls.

- Bias vary tremolo.

-  2x 12AX7/ECC83 + 1x 6V6GTA + 1x6X4.

- JUPITER 8SC loudpseaker 4ohms.

- dimensions WxHxD= 435x380x195mm.

- weight : 8.0kg.
