Audio Amplifiers

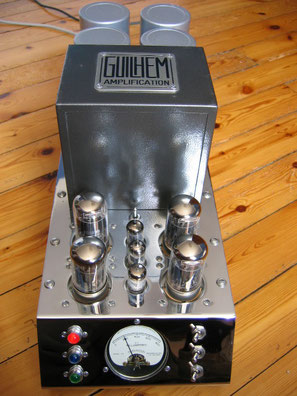

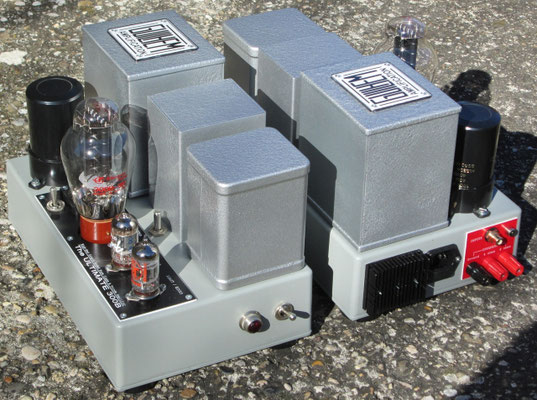

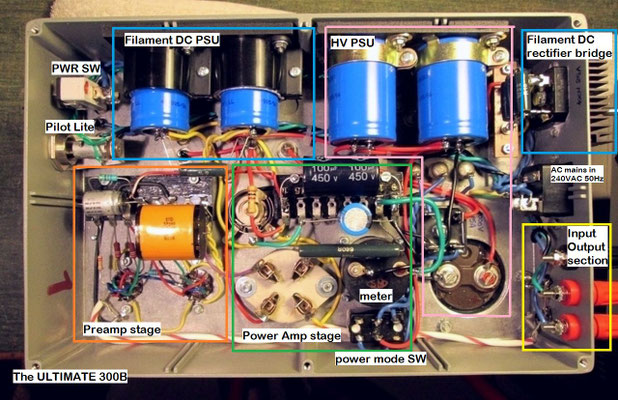

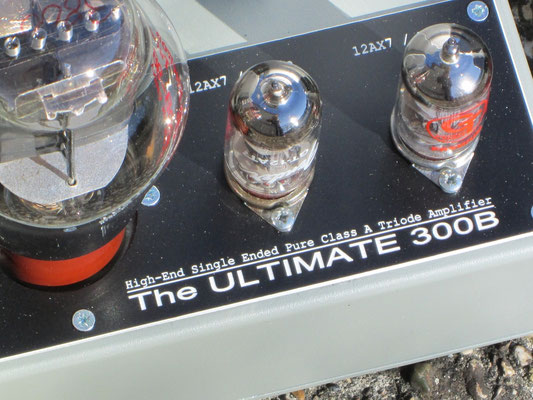

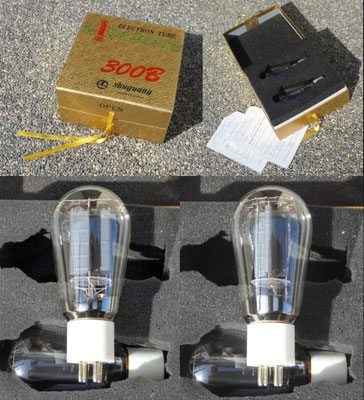

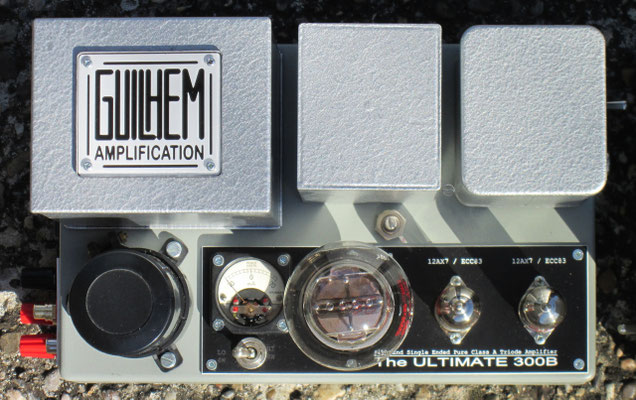

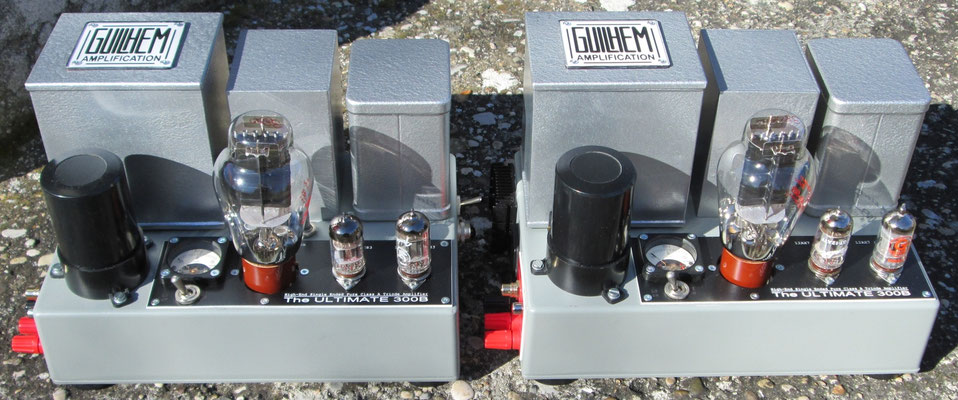

The ULTIMATE 300B

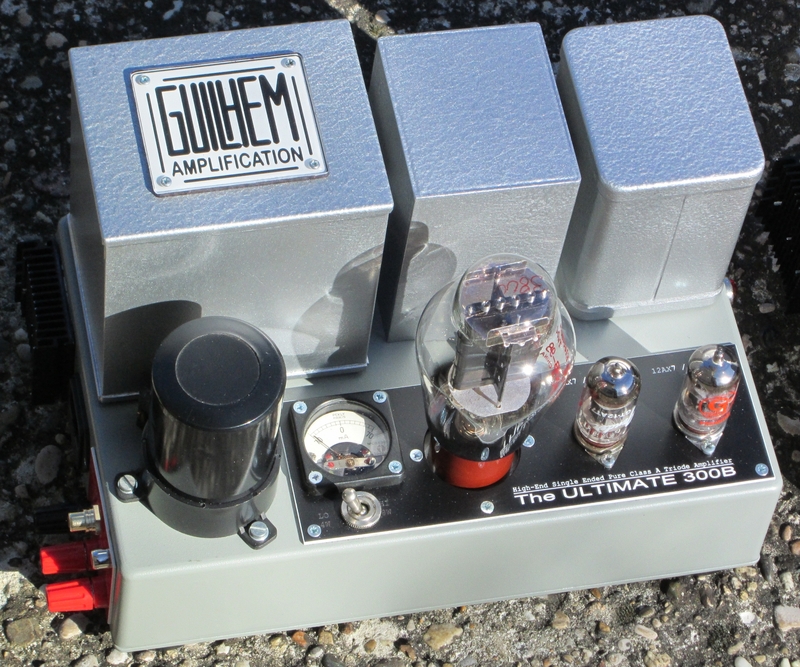

Le ULTIMATE 300B est un ensemble de deux blocs mono compacts utilisant la fameuse triode 300B, précédée par un  seul étage préamplificateur de type SRPP (Shunted Regulated Push-Pull) utilisant deux 12AX7/ECC83.



The ULTIMATE 300B consists in 2 compact mono block amps using the famous 300B power triode, driven by an unique SRPP preamp stage with 2x 12AX7/ECC83.



SPECS :

- dual power mode : 4WRMS (LO) and 8WRMS (HI) by shifting the HV supply.

- input sensivity = 0.8V for 8W output.

- THD = 3% @ 8WRMS 8R 440Hz sinus.

- bandwidth = 10hz-32KHz @-3dB 8WRMS 8R.

- no feedback loop.

- pure class A cathode bias operation.

- die-cast aluminium chassis 275x175x66mm.




The ULTIMATE OTL6080



Le ULTIMATE OTL6080 est également un ensemble de deux blocs mono compacts, utilisant chacun 3x 6080WA en étage final OTL (Output Transformer Less = sans transformateur de sortie), précédées par un étage préamplificateur SRPP 12AX7/ECC83, lequel est suivi d'un inverseur de phase Cathodyne 12AU7/ECC82.



The ULTIMATE OTL6080 also consists in 2 compact mono block amps, each using 3x 6080WA in OTL configuration (Output Transformer Less), driven by a SRPP 12AX7/ECC83 preamp stage, followed by a Cathodyne 12AU7/ECC82 phase inverter.



SPECS :

- nominal power output 10WRMS 16R.

- input sensivity = 0.675V @10W.

- THD = to be measured soon...

- bandwidth = 1Hz-200KHz @-3dB 10WRMS 16R.

- no feedback loop.

- output stage circuit based on the original Julius Futterman 1956 OTL design patent.

- die-cast aluminium chassis 275x175x66mm.

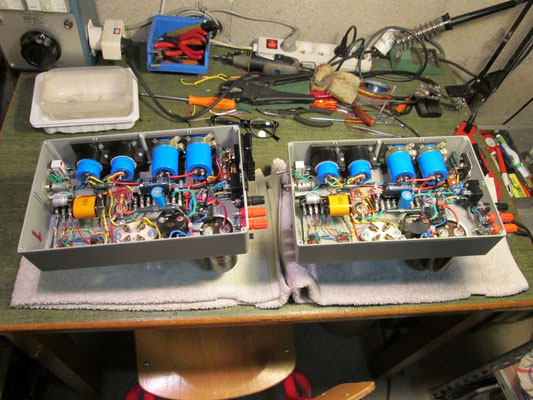

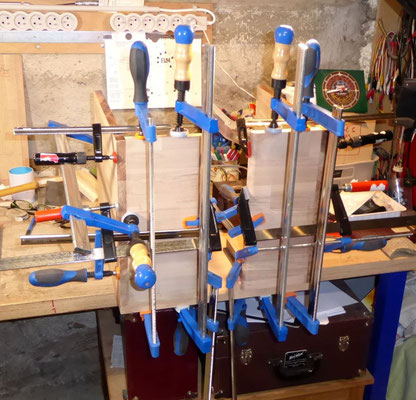

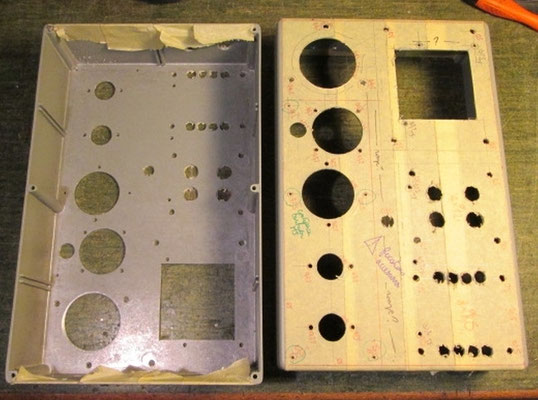

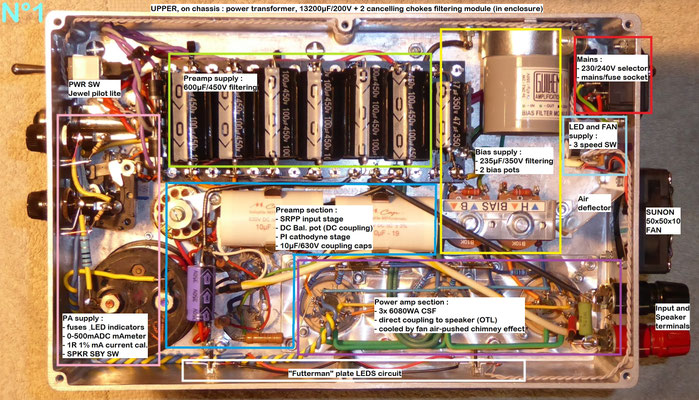

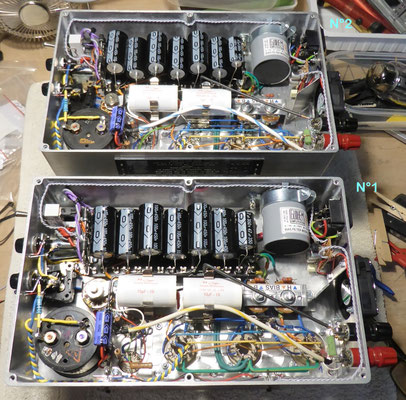

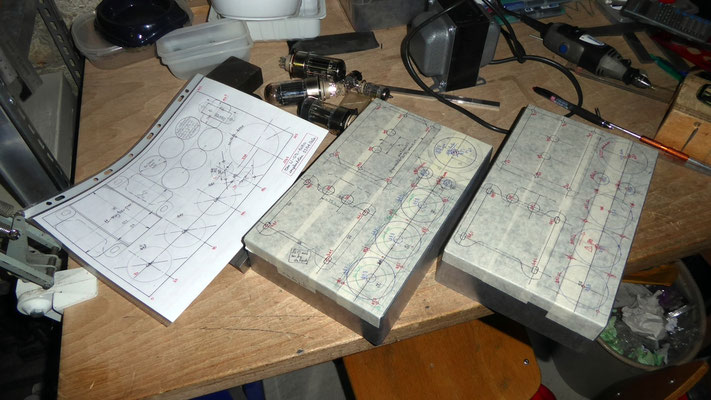

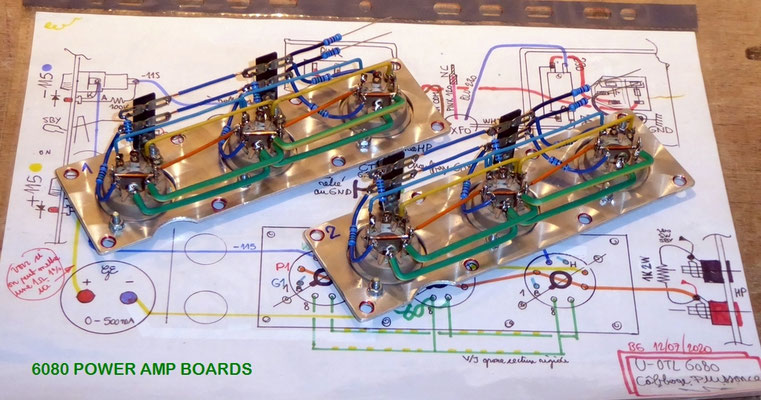

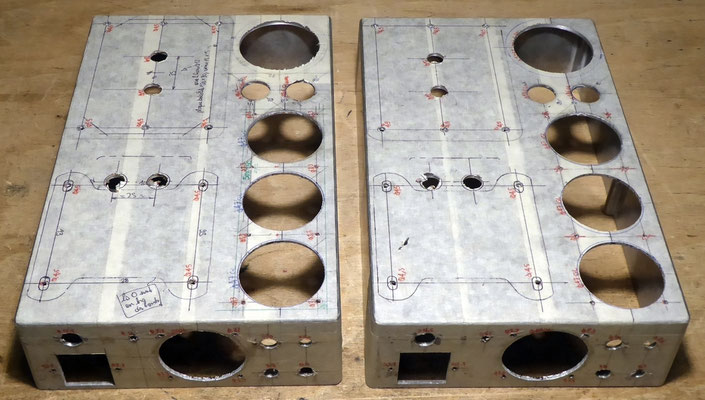

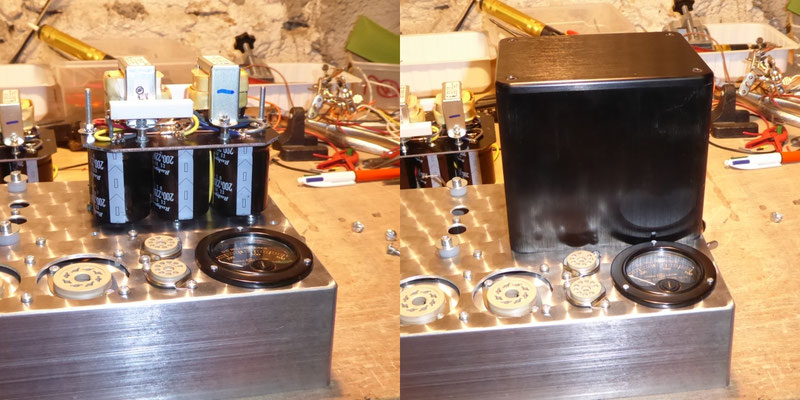

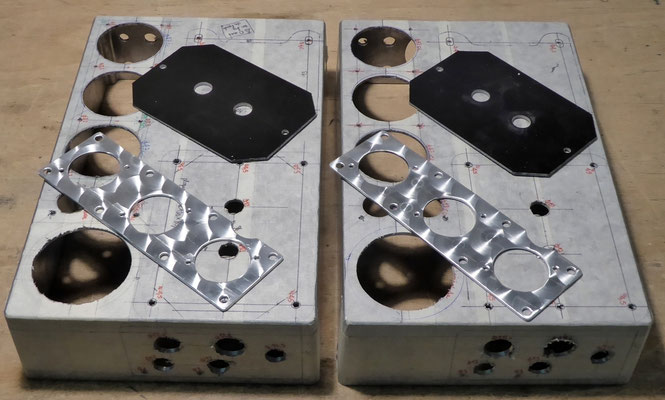

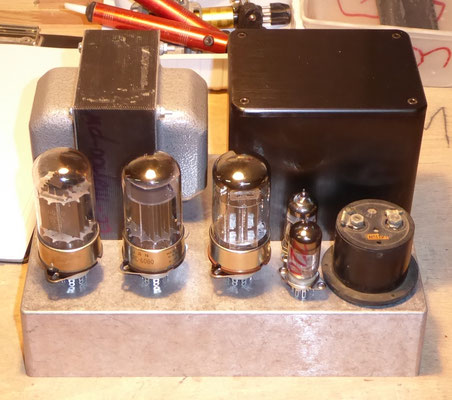

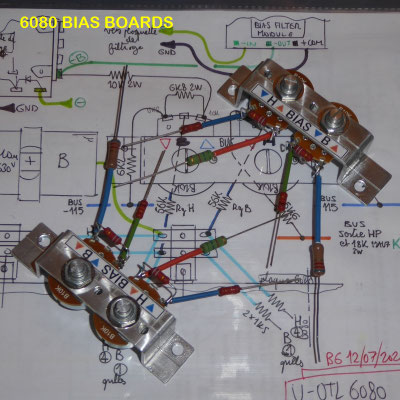

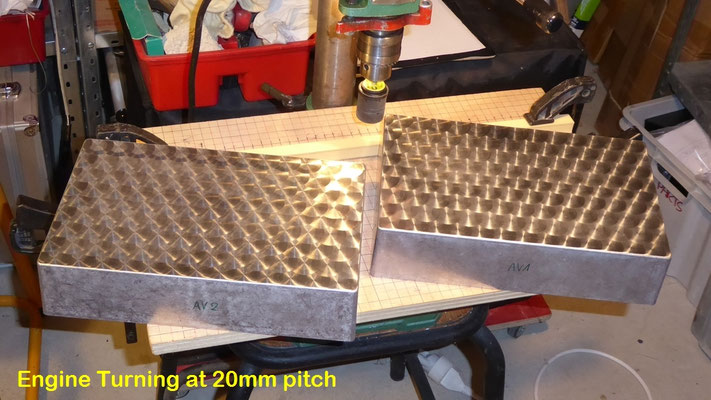

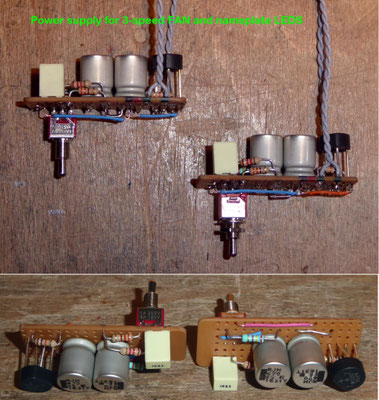

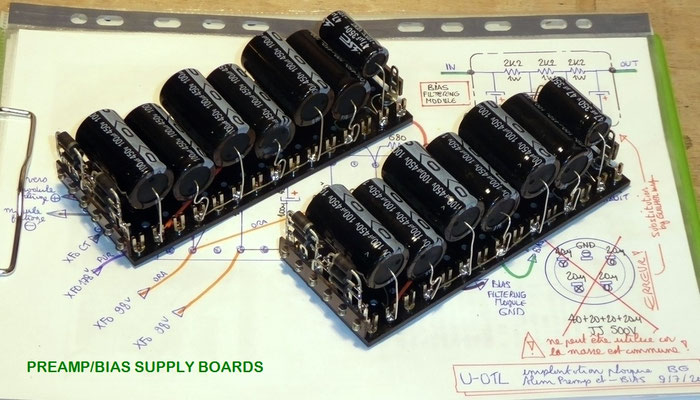

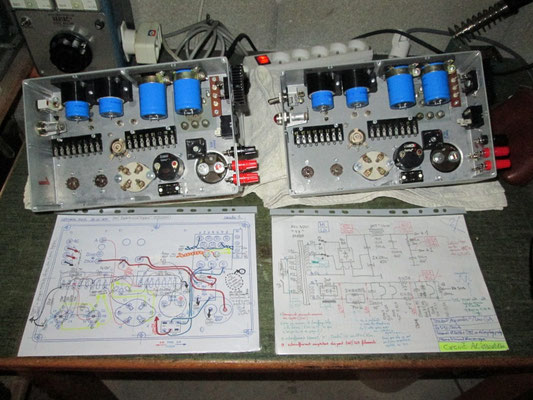

Détails de la construction - Building details :

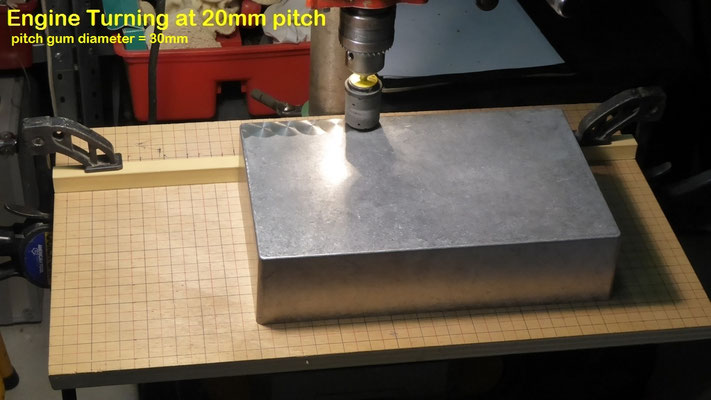

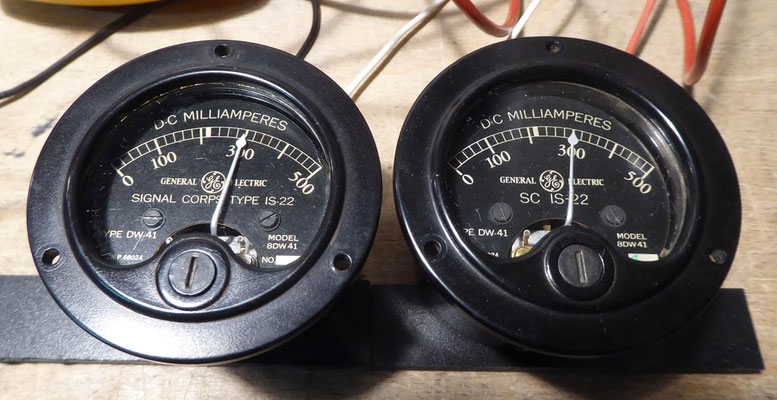

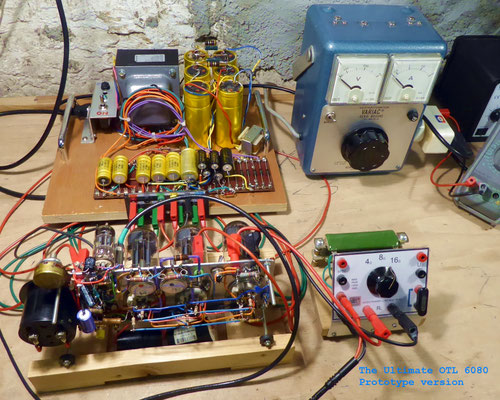

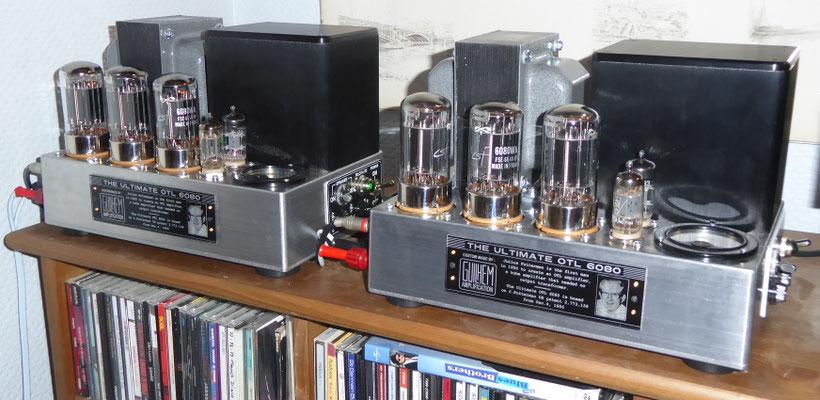

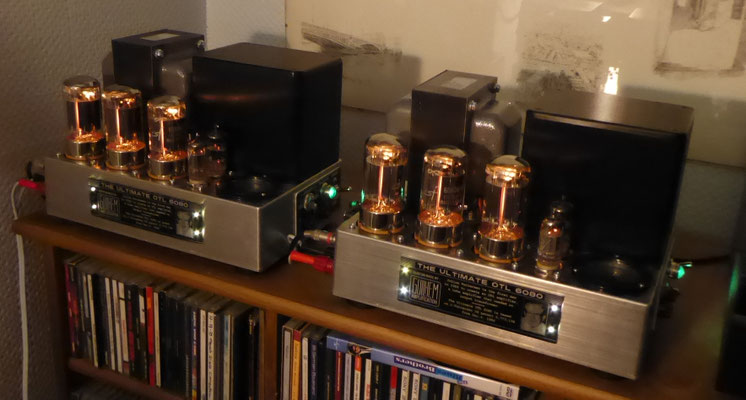

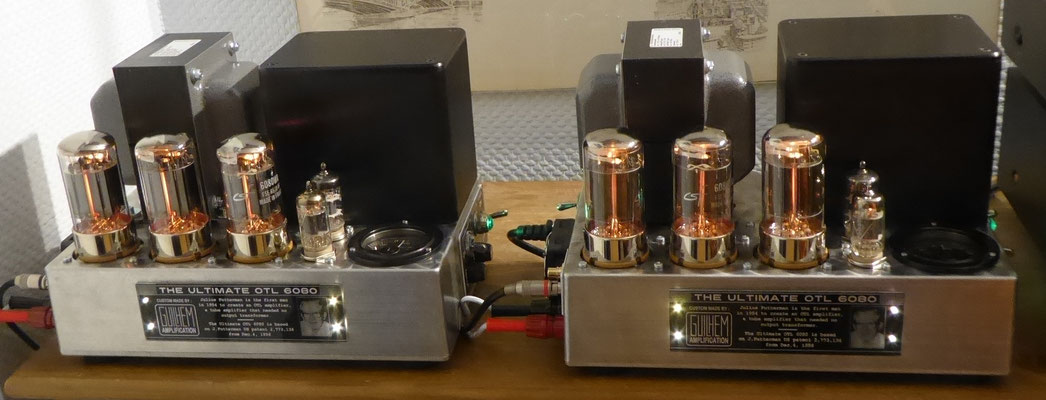

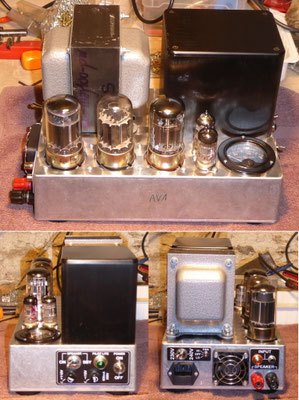

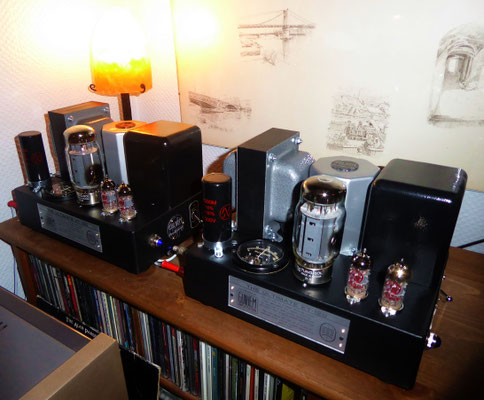

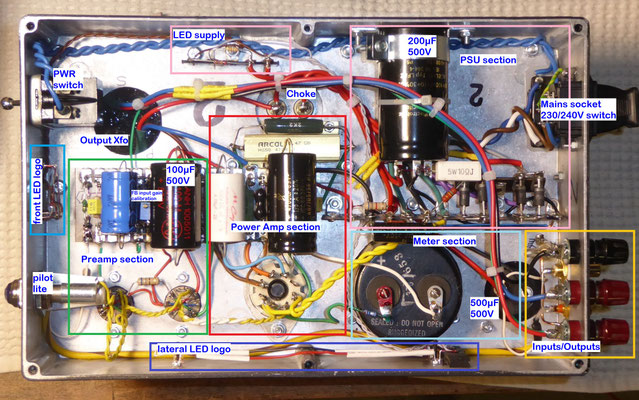

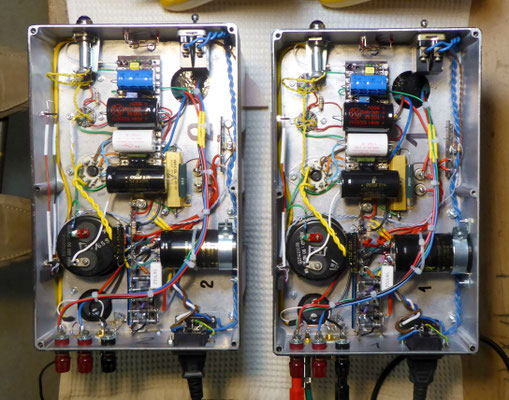

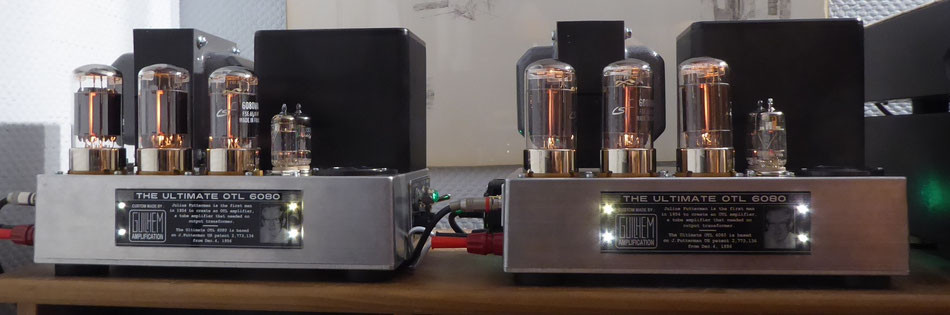

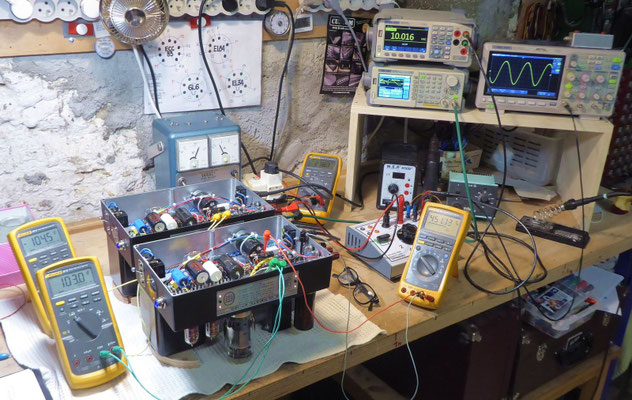

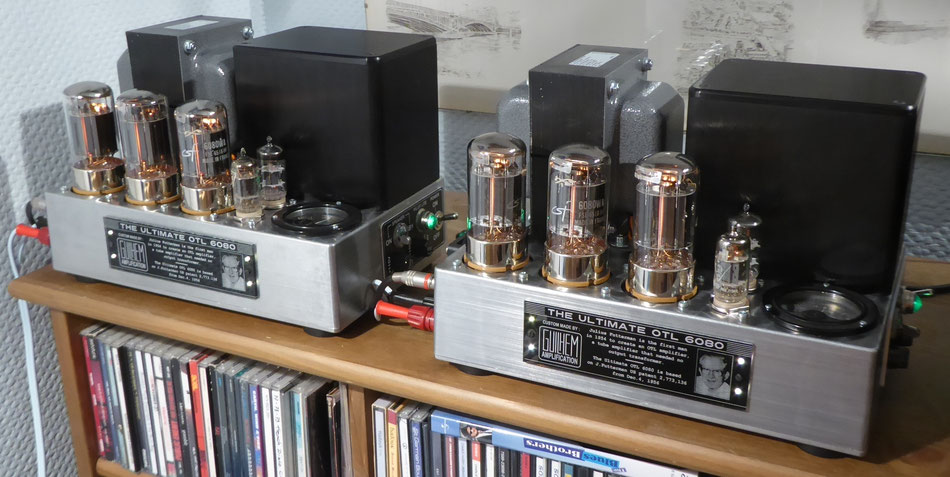

Les ULTIMATE OTL 6080 terminés et opérationnels - The ULTIMATE OTL finished and operating :

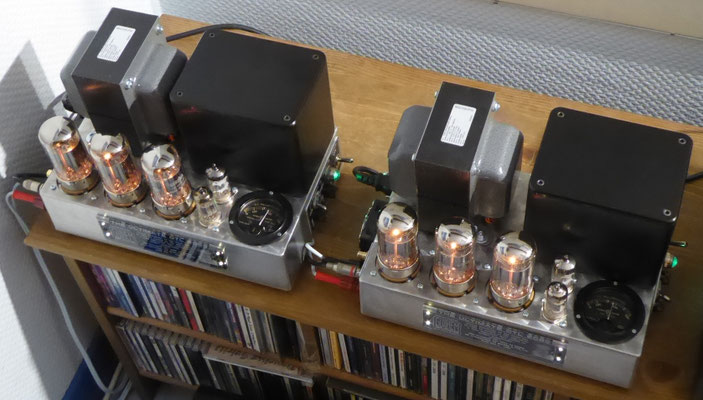

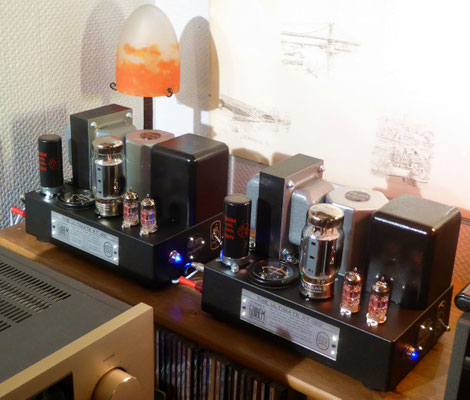

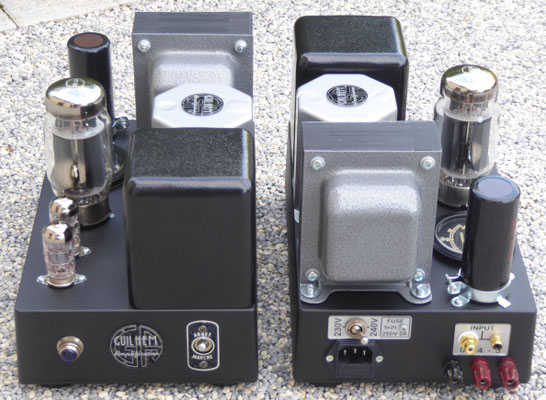

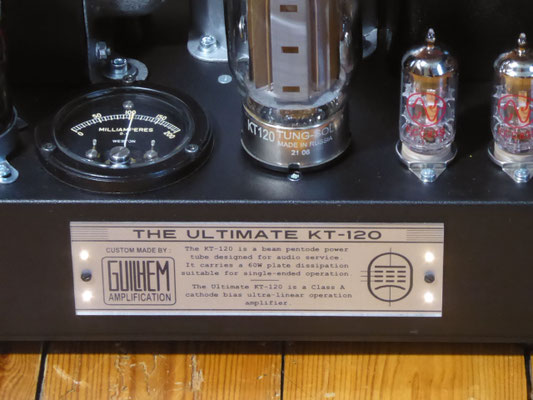

The ULTIMATE KT120

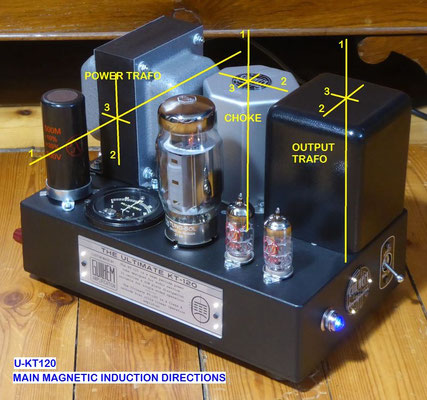

Le ULTIMATE KT120 est une déclinaison de l'ULTIMATE 300B mais avec une tétrode Tung-Sol KT120 montée en Ultra-Linéaire à 35%, précédée par le même étage préampli 2x 12AX7/ECC83 SRPP.



The ULTIMATE KT120 is a variation of the ULTIMATE 300B based on a Tung-Sol KT120 tetrode connected in Ultra-Linear operation with screen at 35% tap, and It is driven by the same SRPP 2x 12AX7/ECC83 preamp stage.



SPECS :

- nominal power output 12.5WRMS 8R @440Hz sinus.

- input sensivity = 0.8V @10.00V output (12.5W).

- THD = to be measured soon...

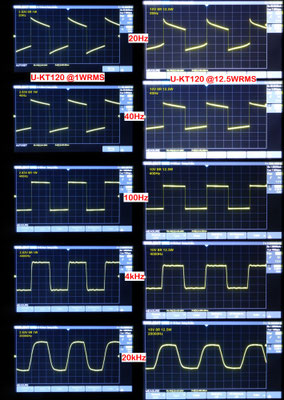

- bandwidth @12.5WRMS : 10Hz-40kHz@-3dB, 16Hz-23kHz@-1dB

- bandwidth @1.0WRMS : 4Hz-42kHz@-3dB, 7Hz-24kHz@-1dB

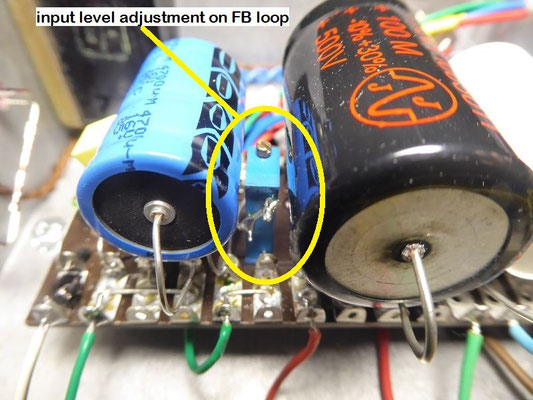

- 6dB feedback loop (fine-tunable for calibrating input gain at 800mV ---> 10.00V output).

- pure Class A Cathode Bias Ultra-Linear operation.

- die-cast aluminium chassis 275x175x66mm.



Détails de la construction :

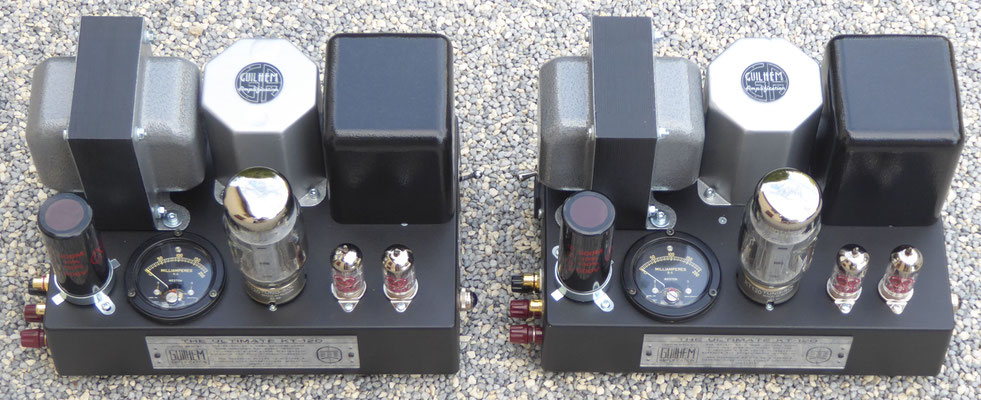

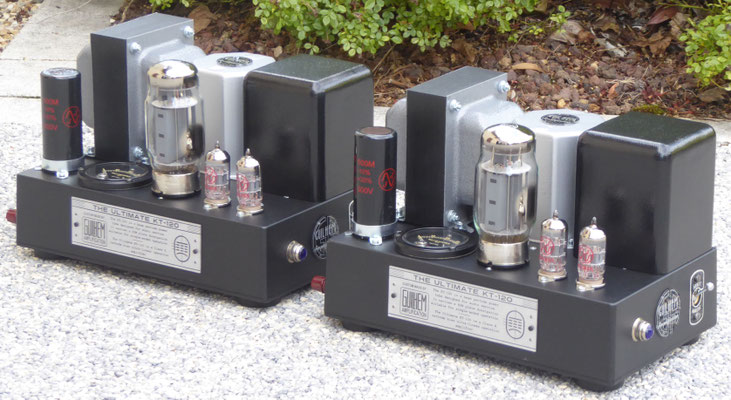

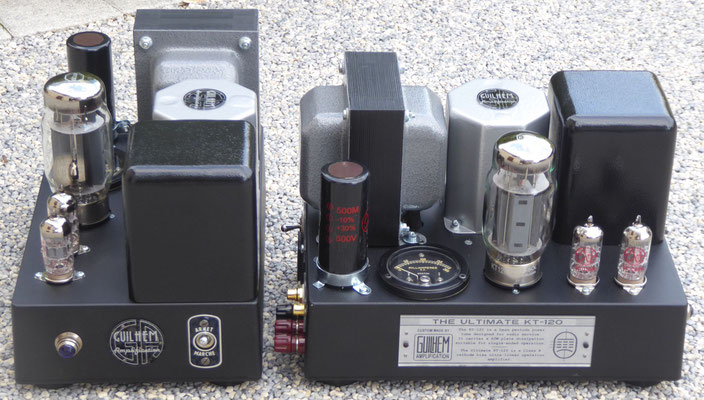

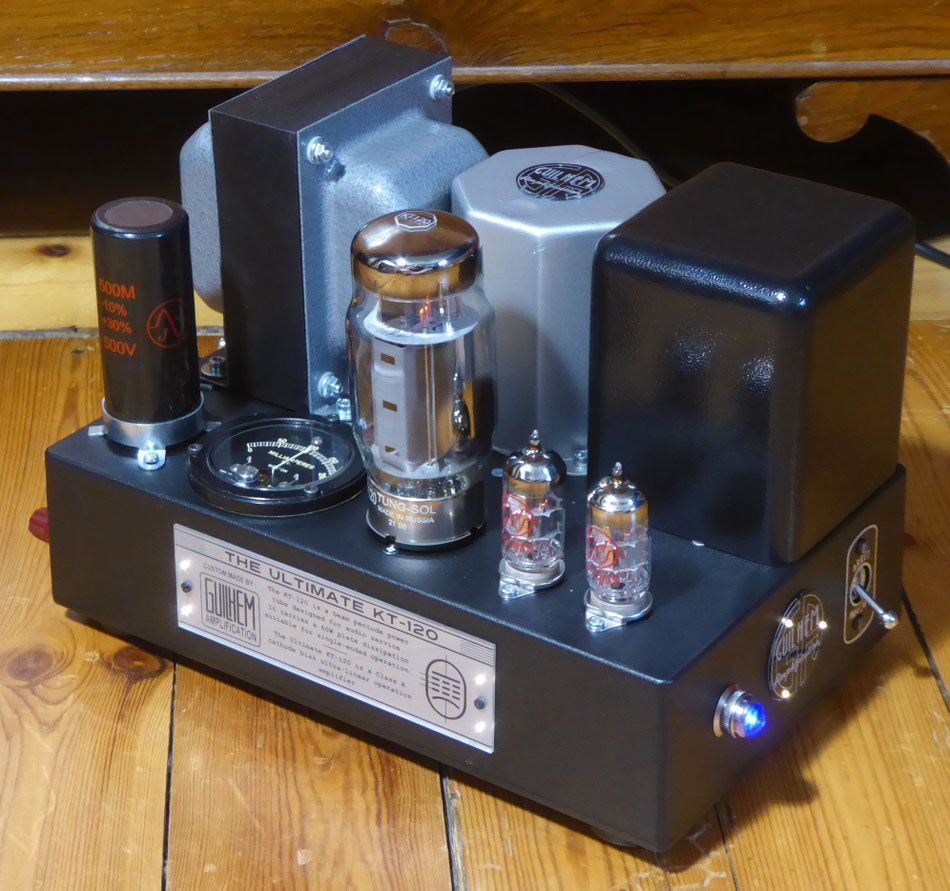

Les ULTIMATE KT120 terminés - the ULTIMATE KT120 finished :

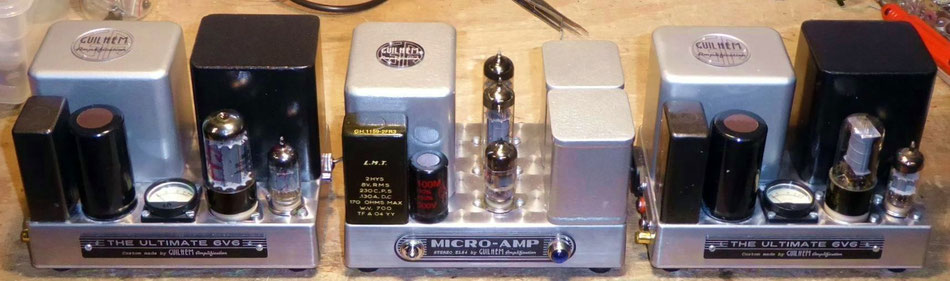

The ULTIMATE 6V6



Le ULTIMATE 6V6 est une version réduite de l'ULTIMATE KT120 mais avec une 6V6GTA montée en Ultra-Linéaire à 25%, précédée par un étage préampli 12AX7/ECC83 SRPP. L'amplificateur est encore à l'état de prototype et... Je suis à la recherche d'un chassis en aluminium compact de dimensions adéquates !



The ULTIMATE 6V6 is a mini-version of the ULTIMATE KT120 based on a 6V6GTA connected in Ultra-Linear operation with screen at 25% tap, and It is driven by  a SRPP 12AX7/ECC83 preamp stage. The amp is still in prototype condition and... I am in search of a compact die-cast aluminium chassis of convenient dimensions !



SPECS :

- nominal power output 2WRMS 8R @440Hz sinus.

- 1x12AX7 + 1x6V6GTA/5992.

- input sensivity = 0.68V @2W.

- THD = to be measured soon...

- bandwidth = 10Hz-40KHz @-3dB 2WRMS.

- 10dB feedback loop.

- pure Class A Cathode Bias Ultra-Linear operation.

- die-cast aluminium chassis Hammond 1590DD (188x120x37mm).



Le projet avance, petit à petit... Combiné avec un autre...

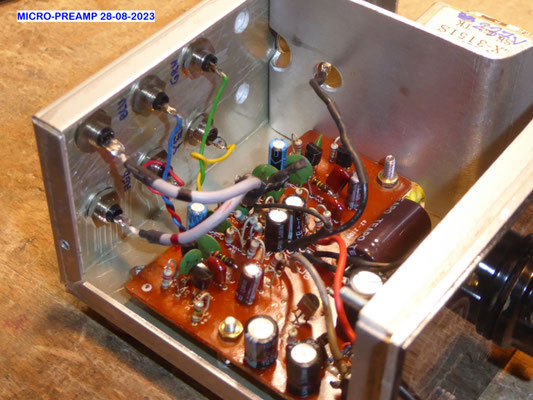

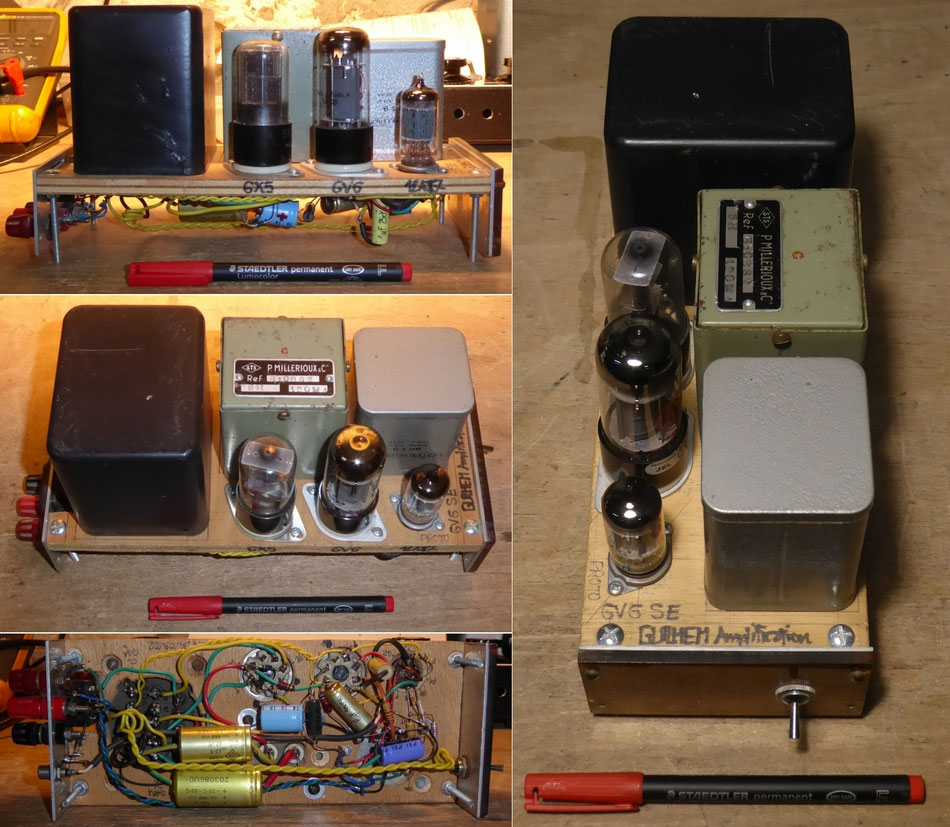

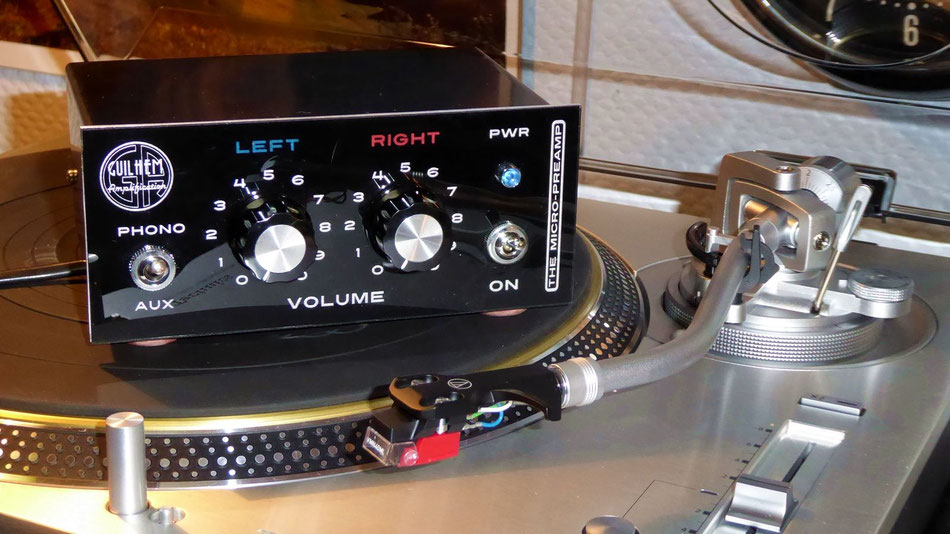

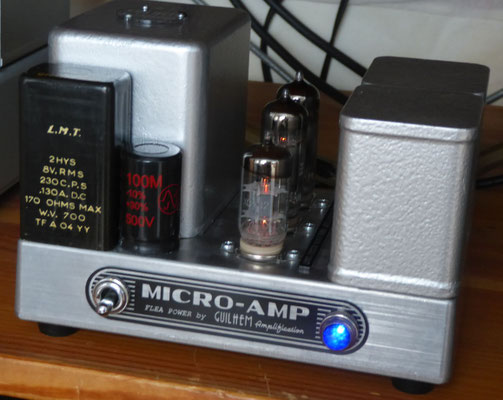

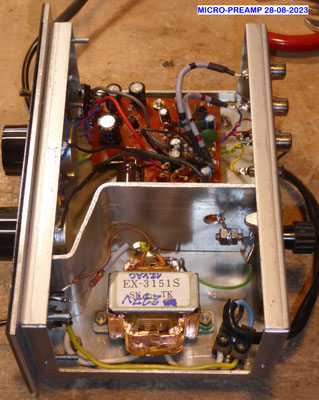

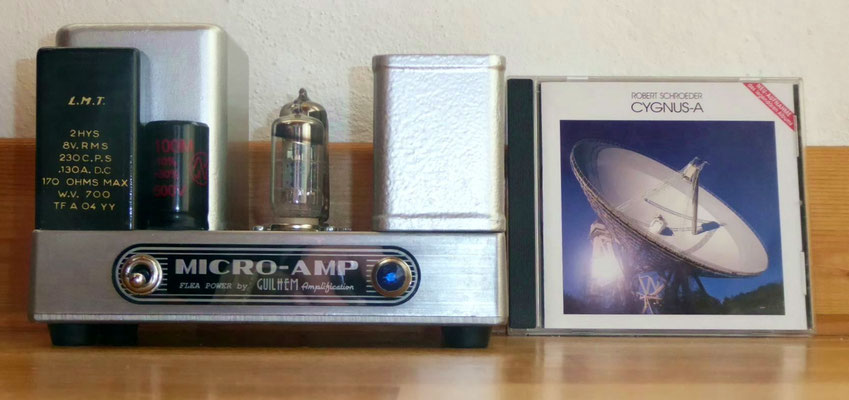

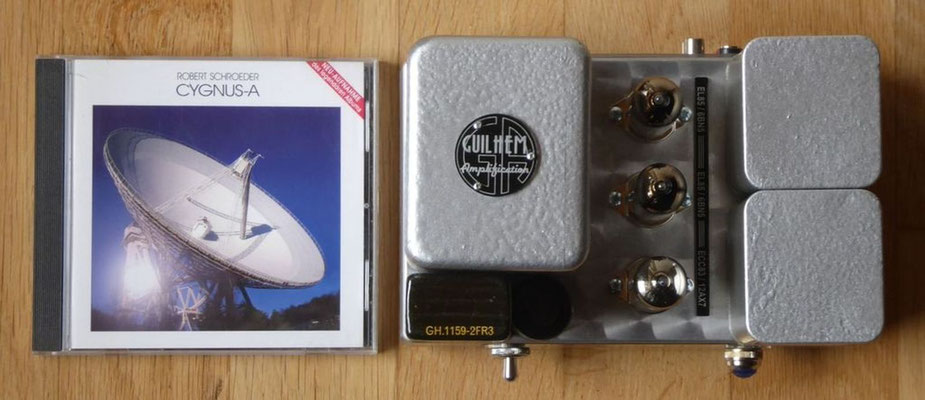

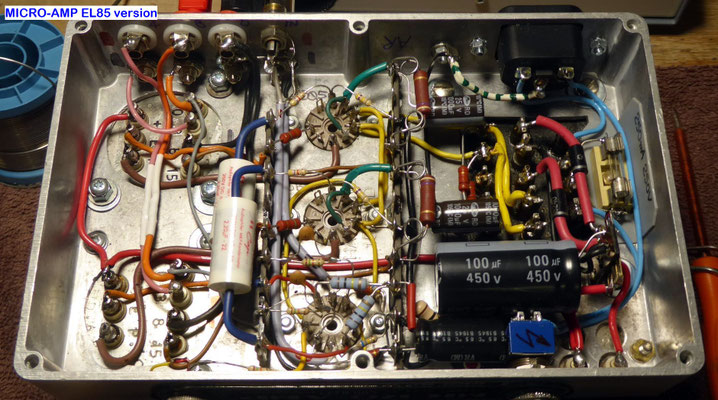

MICRO-AMP & MICRO-PREAMP

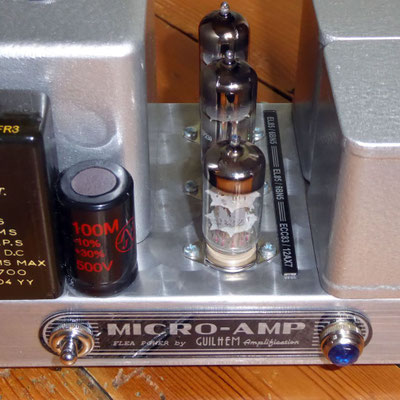

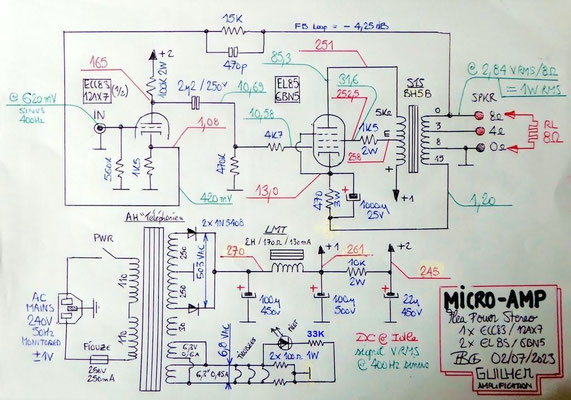

Le MICRO-AMP et le MICRO-PREAMP portent bien leur nom, eu égard à leur taille... Le premier est à tubes et le second à transistors. Deux circuits très simples mais performants, pour prouver qu'il n'est pas nécessaire de faire "gros, lourd et compliqué" pour que cela soit "bien" !



The MICRO-AMP and MICRO-PREAMP are probably one of the smallest standalone units in that category... The MICRO-AMP is tubes and the MICRO-PREAMP is solidstate. Two very simple circuits offering nonetheless serious performances, just to proove that "big, heavy and complicated" are not necessary for "good gear" !



SPECS MICRO-AMP :

- nominal power output 2x 1WRMS 8R @440Hz sinus.

- input sensivity = 0.62V @1W.

- THD = to be measured soon...

- bandwidth = 16Hz-35KHz @-3dB 1WRMS.

- 4.25dB feedback loop.

- pure classe A cathode bias Ultra-Linear operation.

- 1xECC83/12AX7 + 2xEL85/6BN5

- chassis Hammond 1590DD.

- weight = 4.5kg

- dimensions = 120x130x185mm (DxHxW)

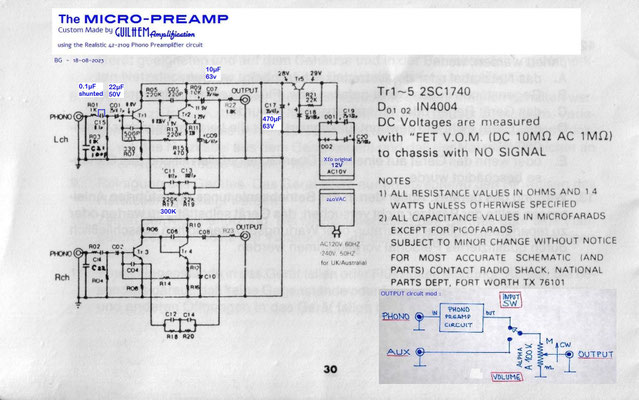

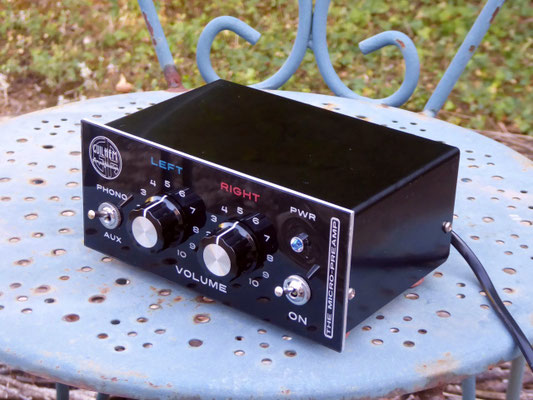

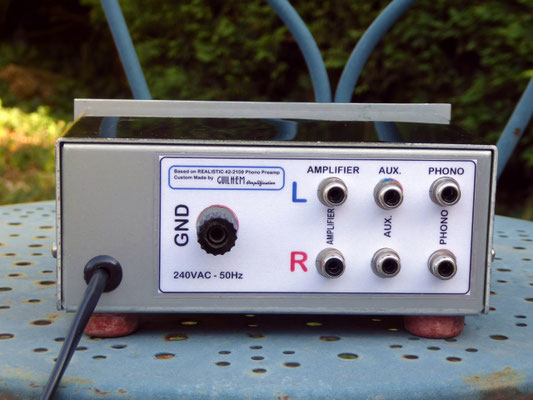

SPECS MICRO-PREAMP

- RIAA accuracy : 20Hz-1kHz = +/-0.5dB ; 1kHz-20kHz = +/-1dB

- input/output Phono MAX levels : 20Hz/30mV/9.0V - 1kHz/100mV/8.2V - 20kHz/650mV/4.0V.

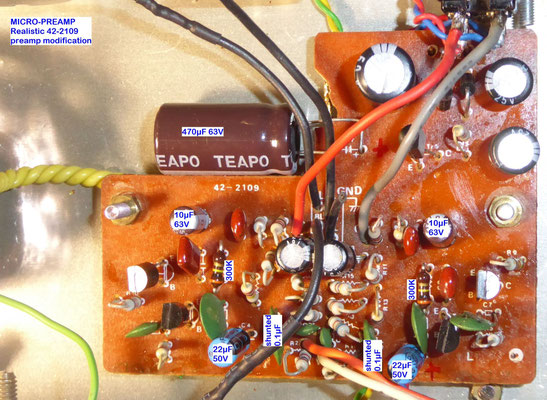

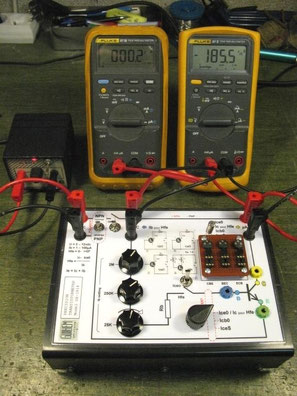

- 5 2SC1740 transistors (improved/modified Realistic 42-2109 Phono Preamp circuit from 1980).

- AUX passive input.

- THD = to be measured soon...

- weight = 1kg

- dimensions = 110x75x160mm (DxHxW)



Loudspeaker Systems

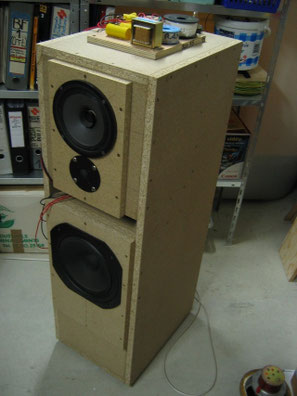

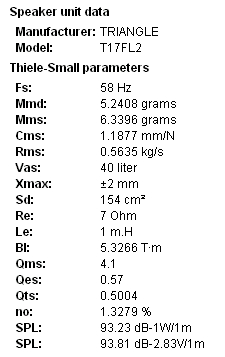

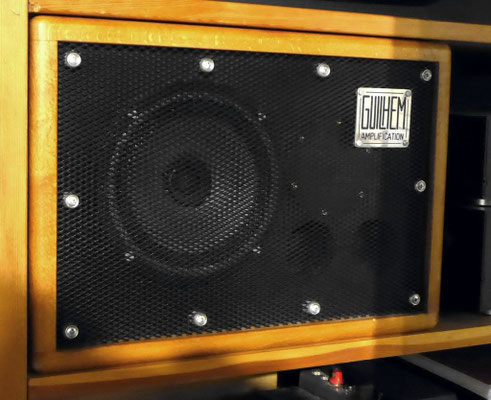

The TRIANGLE T17FL2 Monitors



Les TRIANGLE T1FL2 Monitors ont été construits à la fin des années 80. Après avoir été convertis un temps en enceinte à deux voies utilisant d'autres haut-parleurs, je les ai retournés dans leur configuration initiale de monitor à haut-parleur large-bande, reprenant le TRIANGLE T17FL2 qui les équipait à l'origine.  Leur accordage bas par un évent de grandes dimensions autorise une réponse transitoire, un amortissement et une extension basse intéressantes.



The TRIANGLE T17FL2 Monitors have been built at the end of the 80s. After a conversion in a 2-way enclosure with other speakers, I returned them to their initial Wide-Band speaker configuration, reusing the TRIANGLE T17FL2 original speakers. A low tuning via a large port allows a good transient response and damping, alongwith interesting bass extension.



SPECS :

- solid Beech wood cabinet (planche de Hêtre) 18mm thick.

- Waxed Amber tint satin finish.

- cotton wool full stuffing/damping.

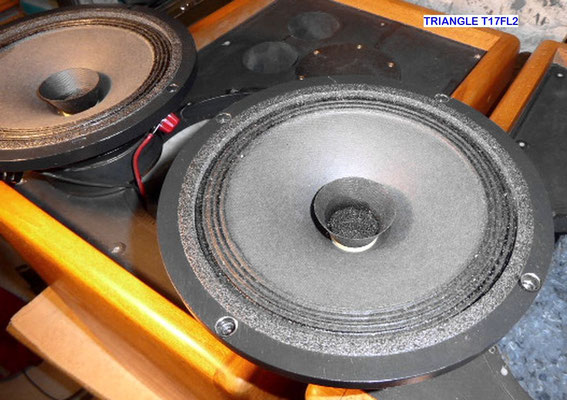

- TRIANGLE T17FL2 Bicone Wide Band loudspeaker (7")

- V=32L net (36L acoustical with stuffing), tuned at 33Hz.

- n=3.2 (overdamped operation)

- LV=320mm, SV=51cm2 (in 2 ports)

- EFF=94.5dB/w/m.

- PWR=25/30WRMS.

- F3=63Hz, F6=50Hz, F10=35Hz.

- dimensions WxDxH : 425x375x300mm.

- weight = 12.5kg

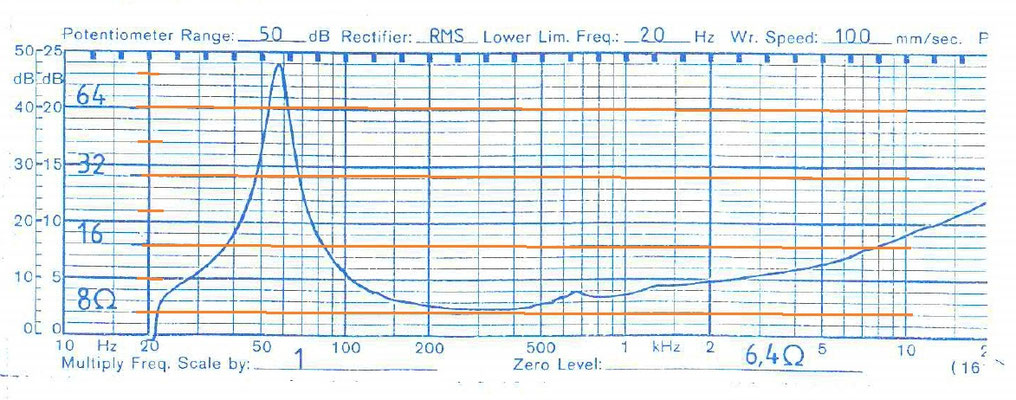

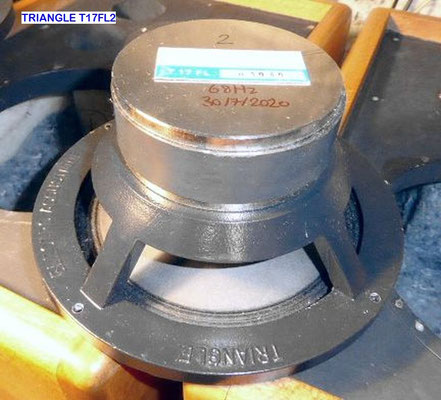

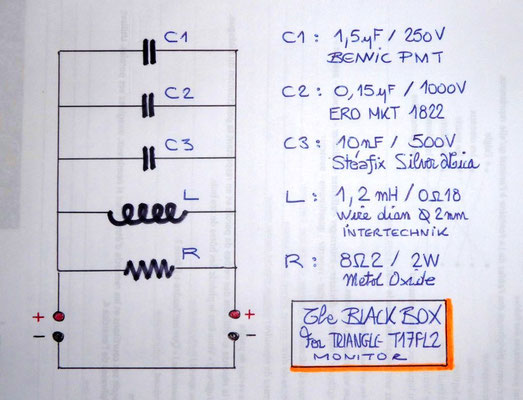

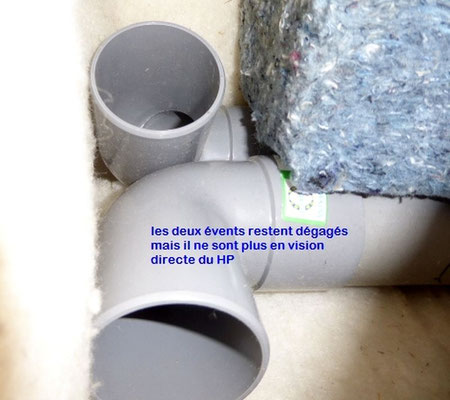

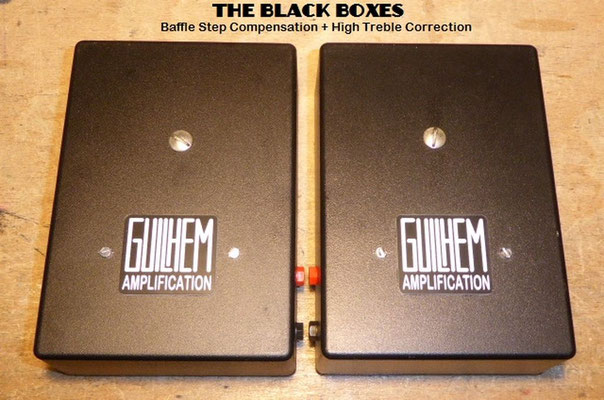

Les T17FL2 sont des haut-parleurs large-bande remarquables, mais ils présentent un relèvement de leur réponse de +5dB entre 1kHz et 10kHz, ce qui tend à les rendre brilliants, avec un médium-aigu en avant. Le filtre externe RLC "BLACK BOX" vient rétablir la situation en corrigeant la réponse. Sa mise au point à été faite à l'écoute.

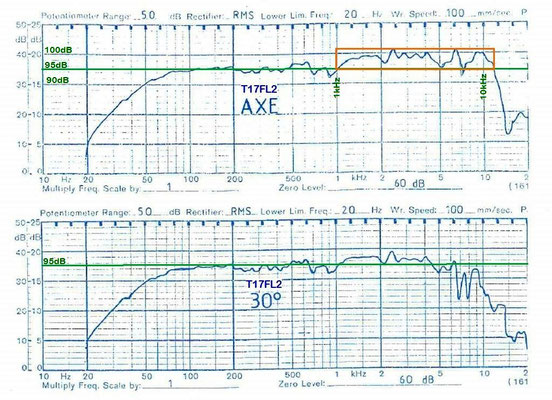

The T17FL2 are amazing speakers, but they do show a +5dB response boost between 1kHz and 10kHz, which tends to make the loudspeakers bright, with a forwarded mid-high. The external RLC "BLACK BOX" filter restores the situation by correcting suitably the response. Its development was made by listening tests.

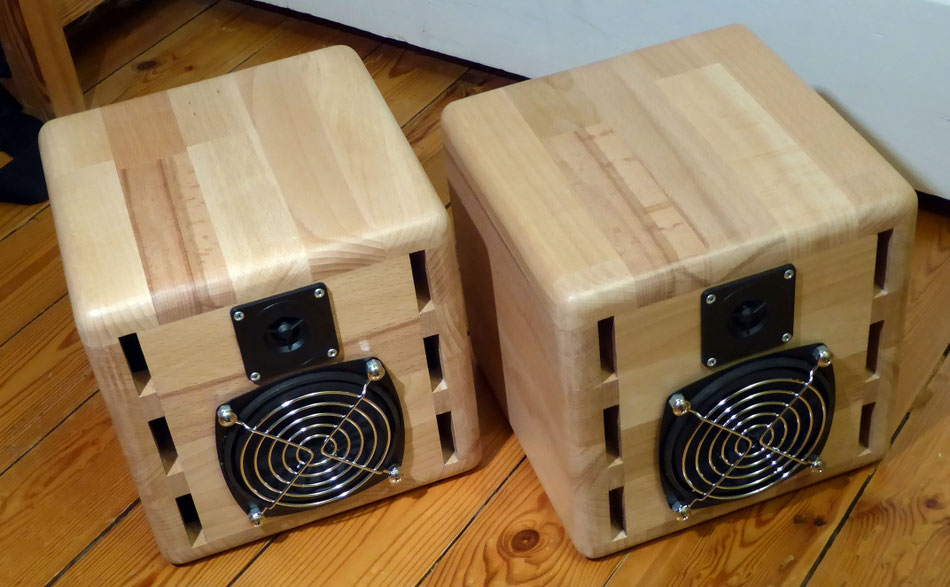

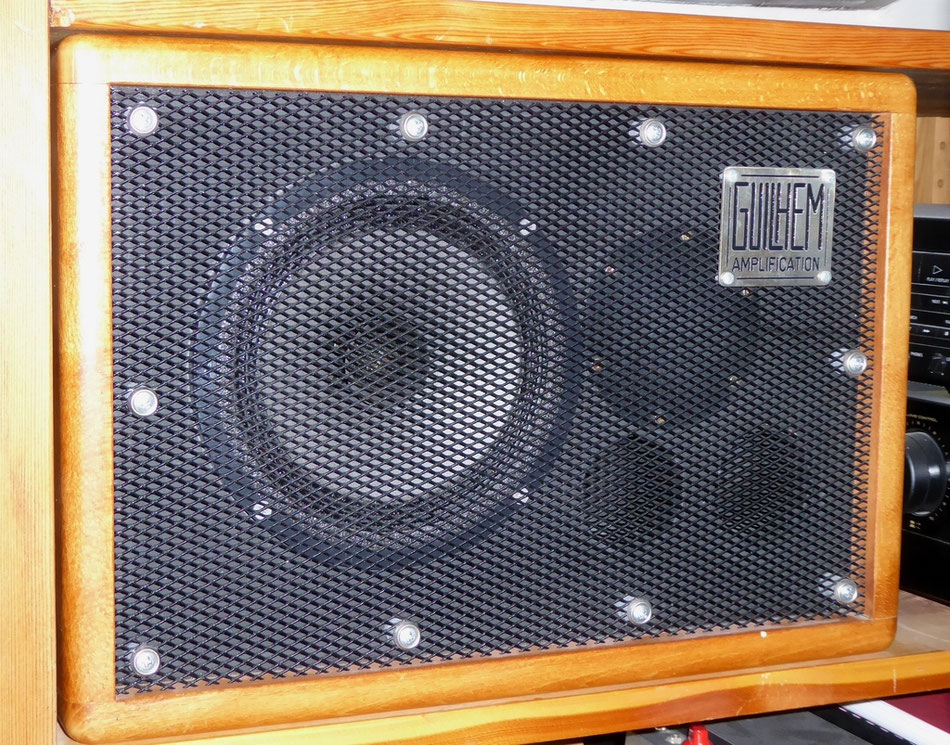

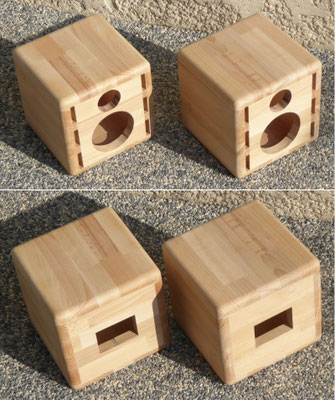

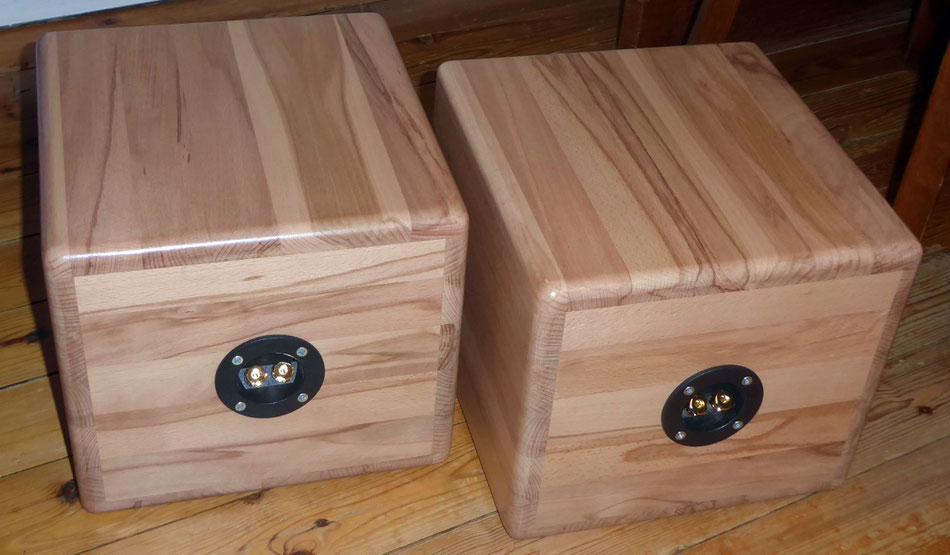

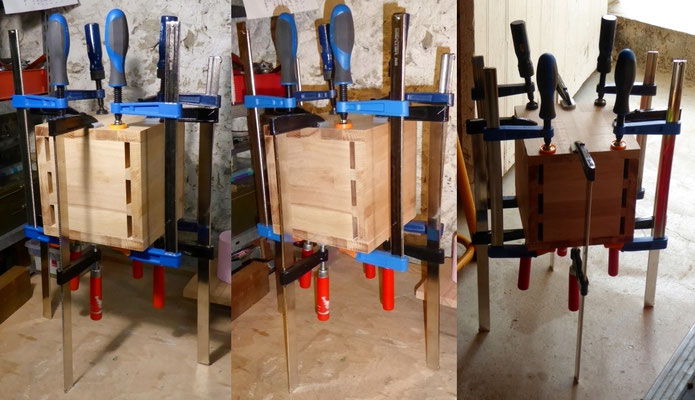

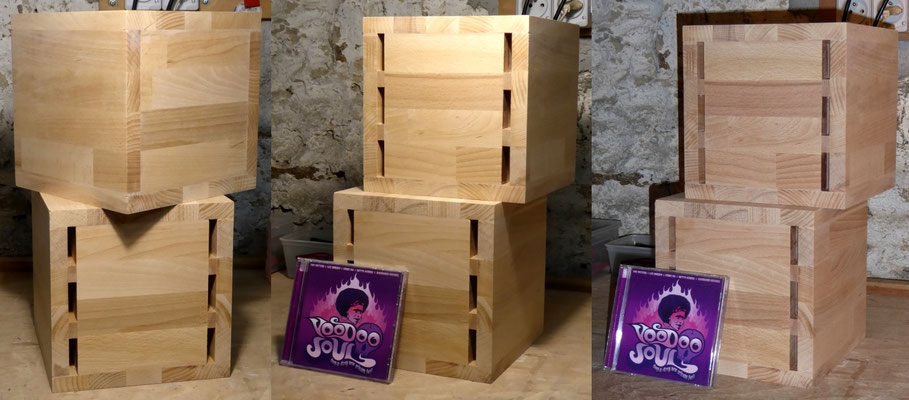

The CUBE

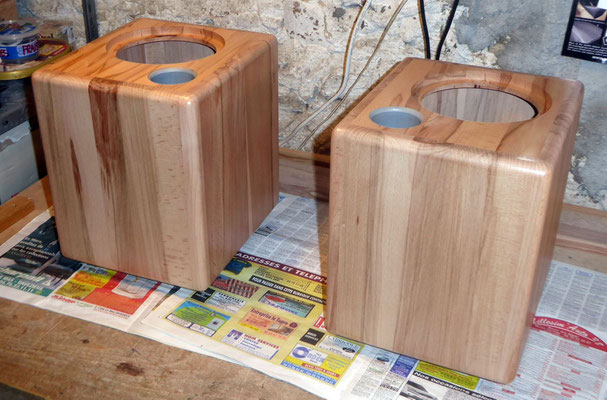

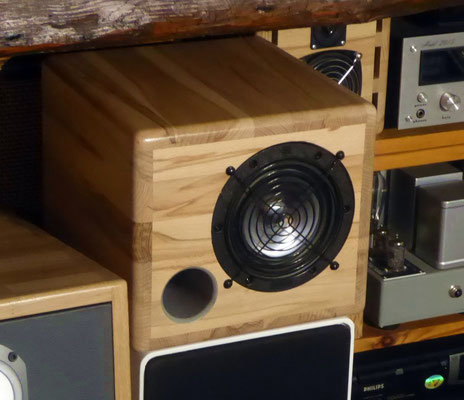

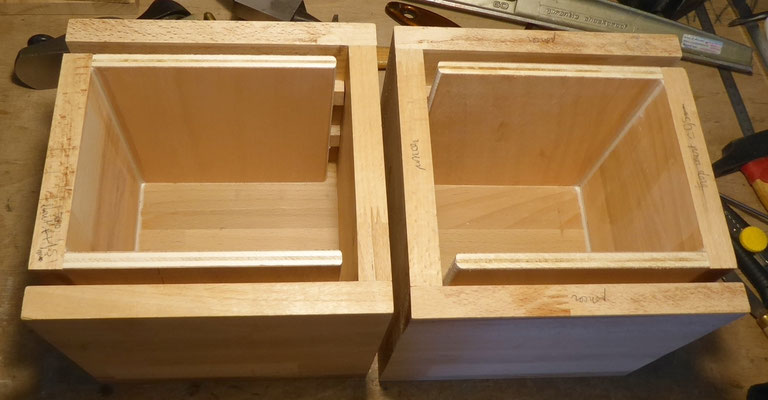

The CUBE est une paire d'enceinte compactes "de bilbliothèque" à 2 voies, de type Bass-Reflex amorti, à décompression laminaire. Elles sont prévues pour une utilisation en encoignure, en étageres ou sur un bureau, dos près du mur. Surprenantes, elles sonnent plus gros que leur taille...



The CUBE is a pair of compact "bookshelf" 2-ways loudspeakers, from the Bass-Reflex type, fully stuffed with lateral laminary decompression. They do sound bigger than their size, surprisingly...



SPECS :

- glued-laminated Beech wood cabinet (Hêtre lamellé-collé) 18mm thick.

- oiled natural satin finish.

- cotton wool full stuffing/damping.

- 6dB/Oct Serie type X-over @ Fx = 4500Hz.

- MONACOR SP-100/8 Woofer-Midrange (4", 1" voice coil).

- AUDAX TW51A8 Tweeter (10.5mm voice coil, 19mm reverse dome).

- -4.4 dB Tweeter L-PAD with non-inductive resistors.

- V=3.8L net, tuned at 63Hz.

- LV=192mm, SV=11.35cm2.

- EFF=88dB/w/m.

- PWR=25/30WRMS.

- F3=63Hz, F6=55Hz, F10=50Hz.

- dimensions : 200x200x200mm.

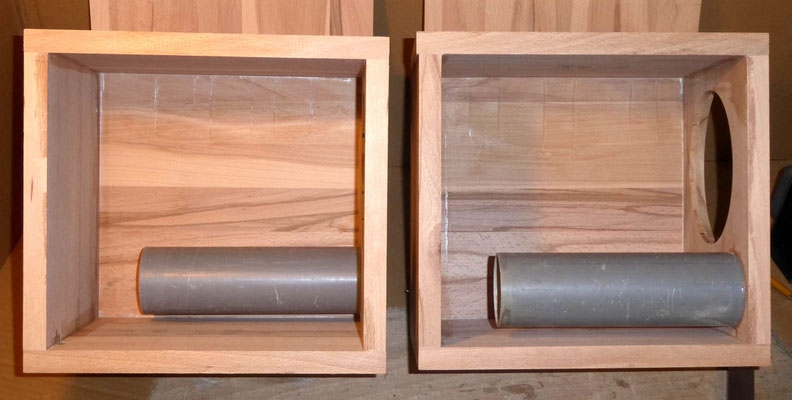

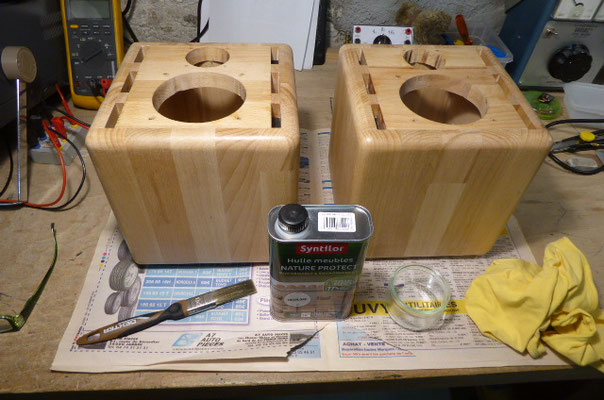

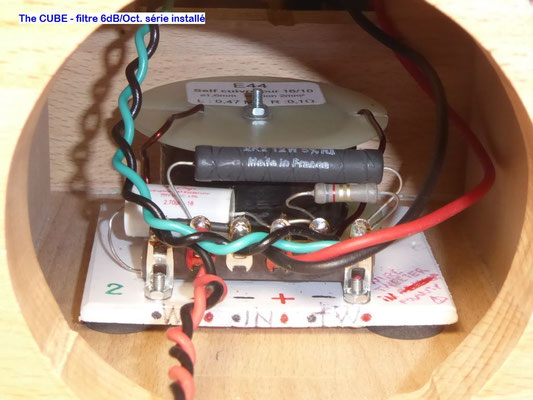

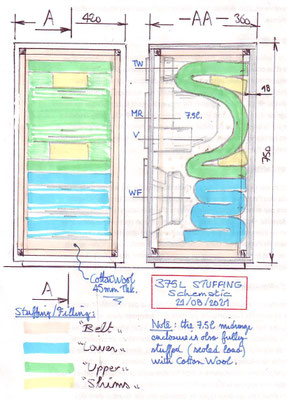

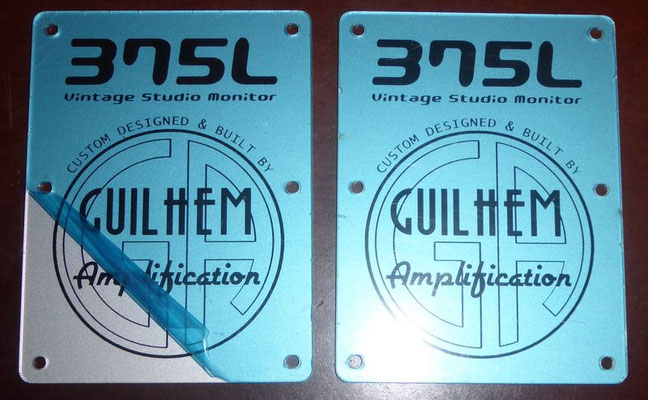

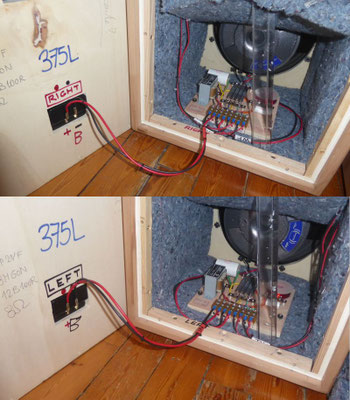

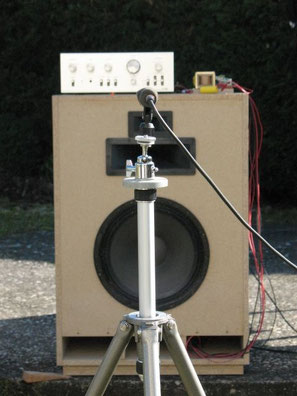

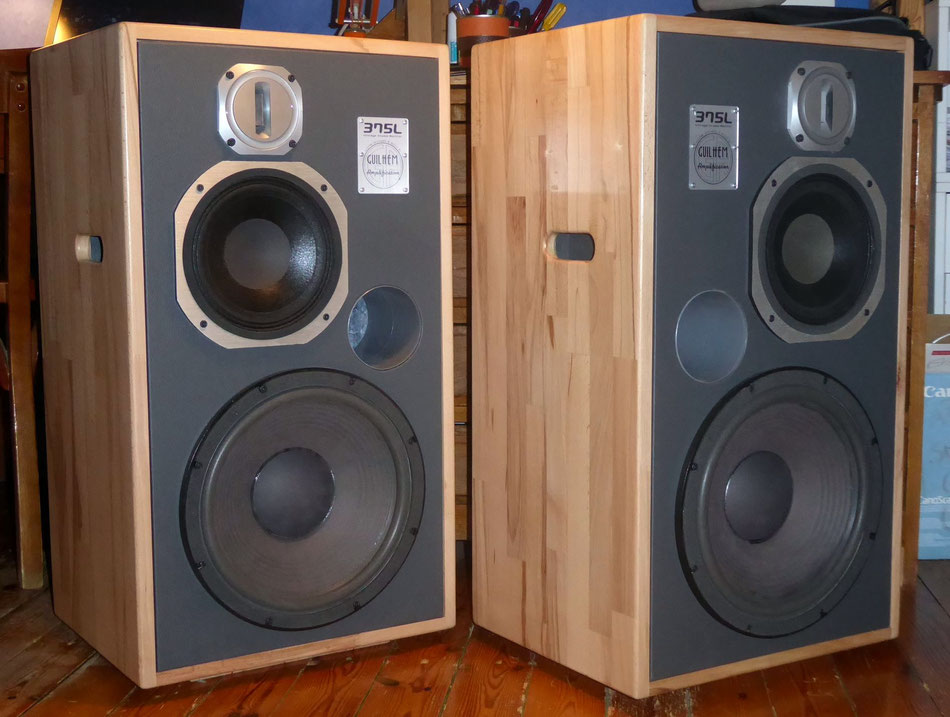

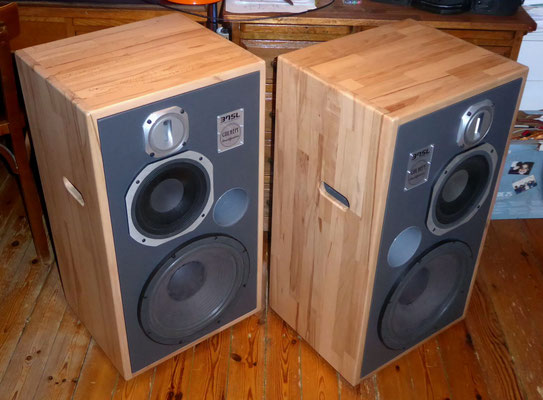

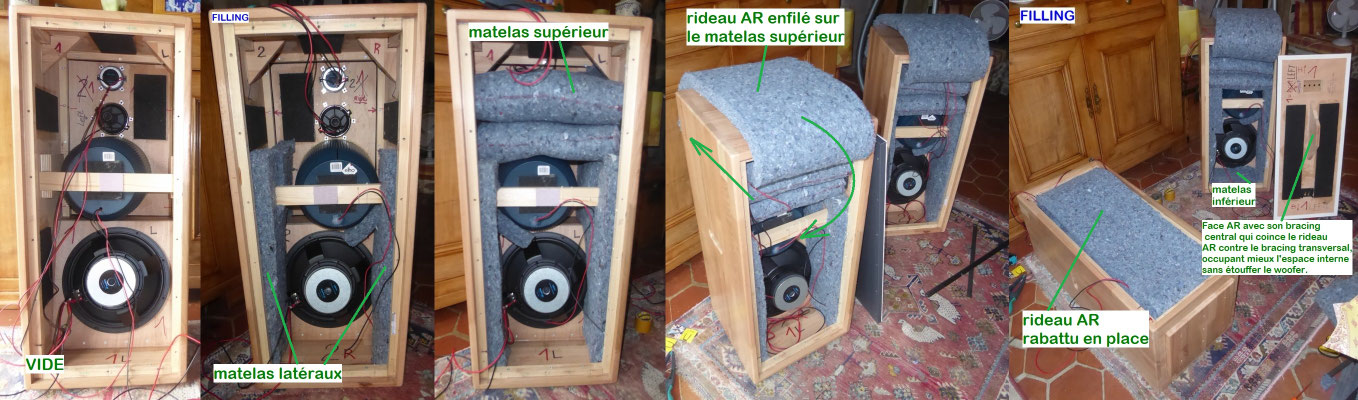

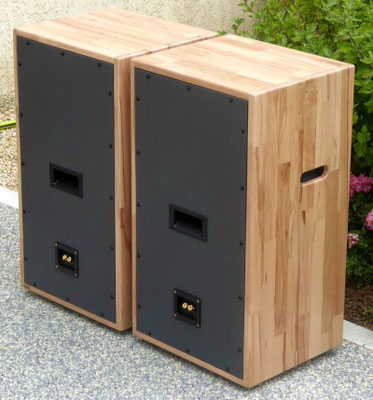

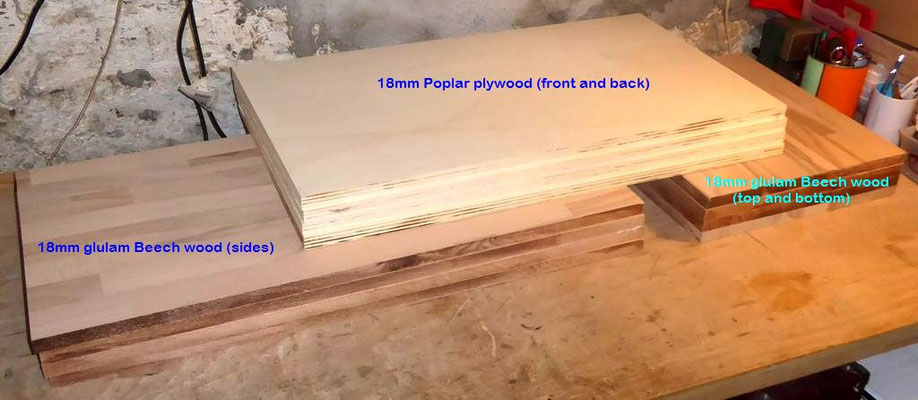

The 375L

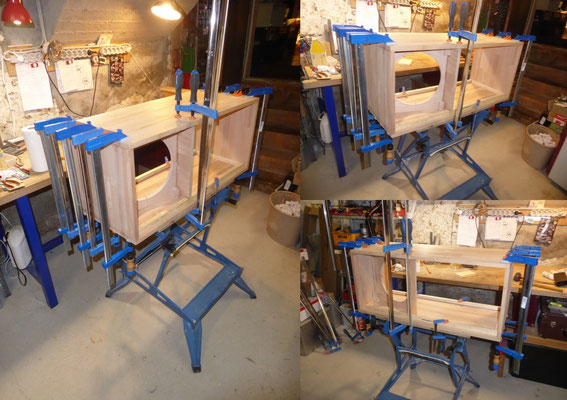

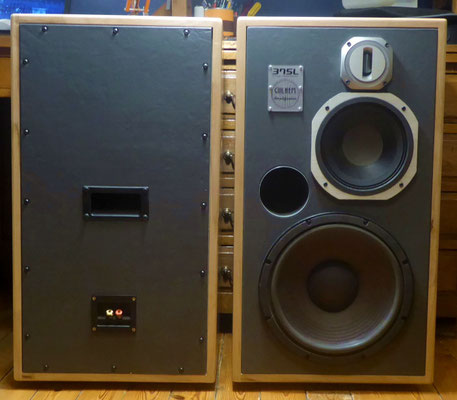

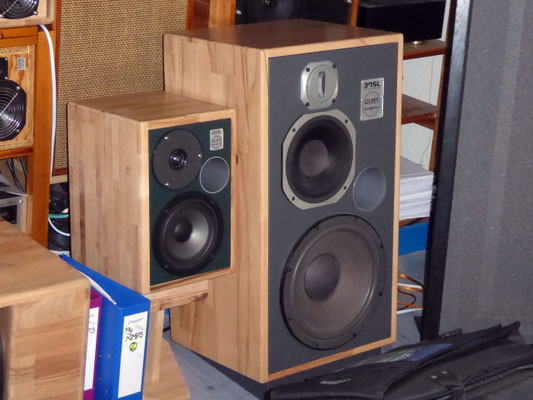

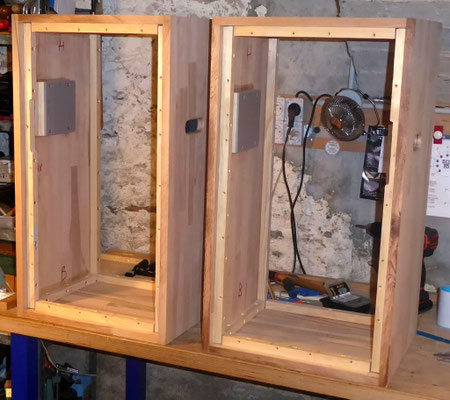

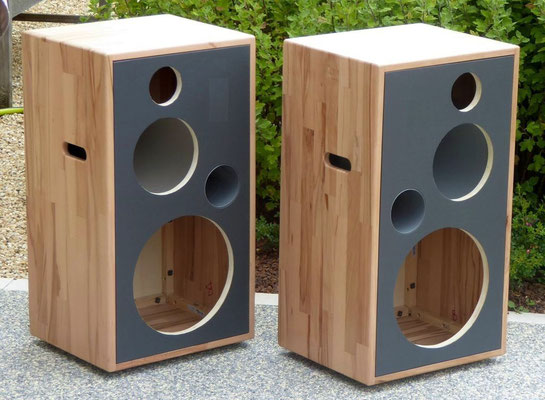

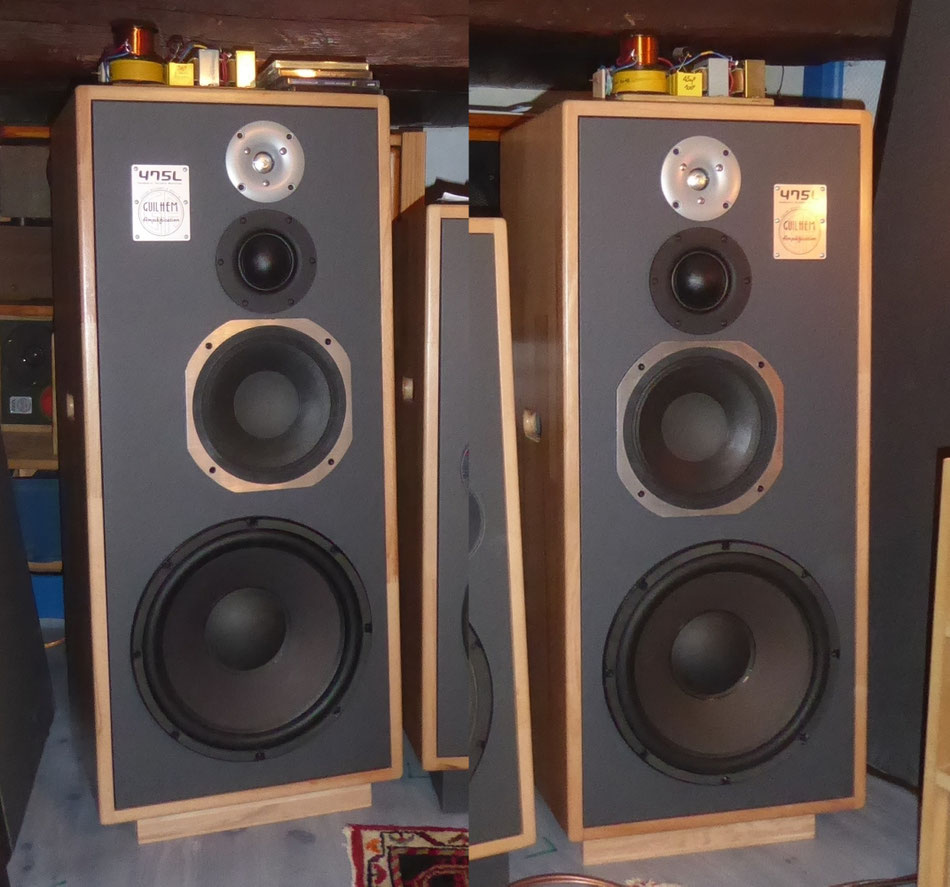

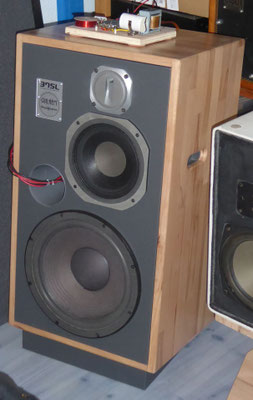

The 375L est une paire d'enceintes "Vintage Studio Monitor" à 3 voies, de type Bass-Reflex avec amortissement interne 100%. Elles peuvent être installées sur des "Riser Bases" leur donnant une inclinaison de 8.3°, correspondant à l'axe d'un auditeur assis dans un sofa à la distance d'écoute de 2.50m environ.



The 375L (3-ways / 75L)  is a pair of "Vintage Studio Monitor" 3-ways loudspeakers, from the Bass-Reflex type, 100% filled. These can be put on riser bases giving them a 8.3 degree backward inclination, suitable for a listener in a sofa at a distance of circa 2.50m.

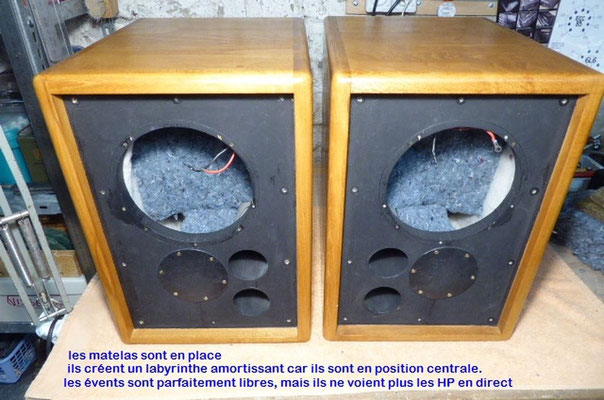

SPECS :

- glued-laminated Beech wood cabinet (Hêtre lamellé-collé) 18mm thick.

- oiled natural satin finish.

- dark grey tumbled simili leather on front and rear faces.

- cotton wool full filling/damping.

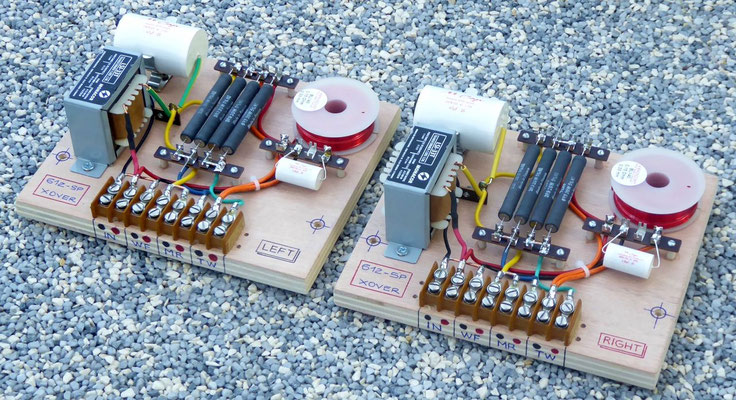

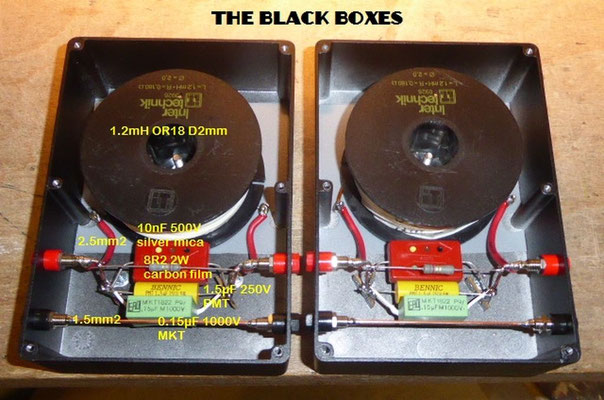

- "612SP" 6-12dB serial crossover, LPF = 400Hz, HPF = 5000Hz

- BEYMA 12B100R Woofer (12",  4" voice coil)

- BEYMA 8M60N Midrange (8", 1"1/2 voice coil).

- BEYMA CP21/F "horn-blade" Tweeter (1"1/2 voice coil).

- V=75L net (88L acoustic with stuffing), tuned at 35Hz.

- LV=140mm, SV=78.6cm2.

- n=5.4 (slightly overdamped operation)

- EFF=93dB/w/m.

- PWR=40-50WRMS.

- F3=36Hz, F6=29Hz, F10=25Hz.

- dimensions : 750x420x360mm.

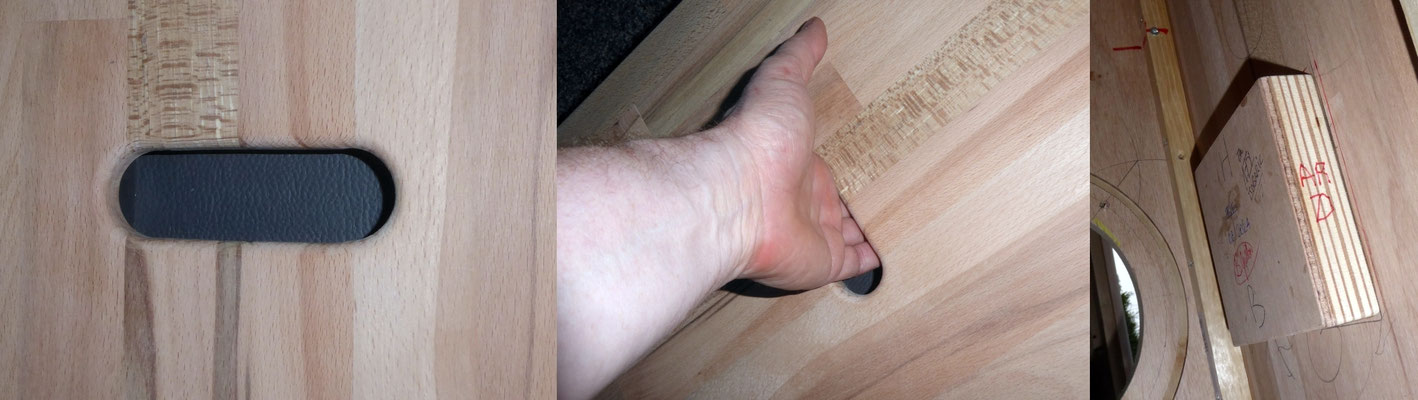

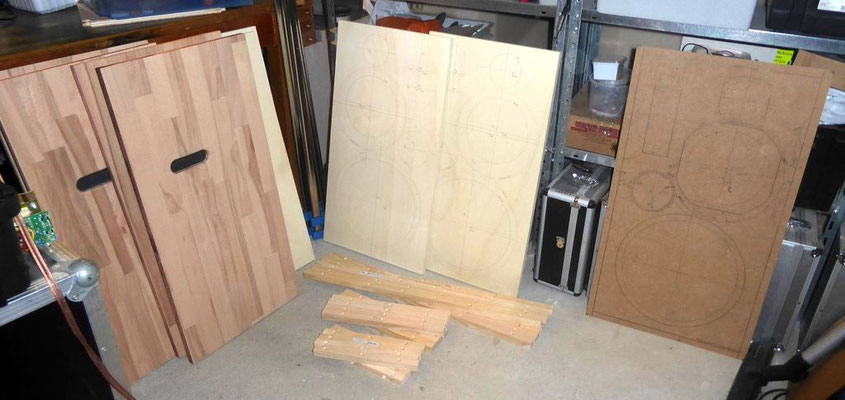

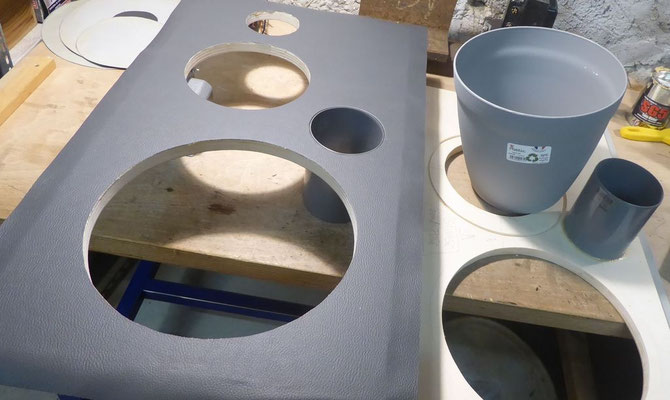

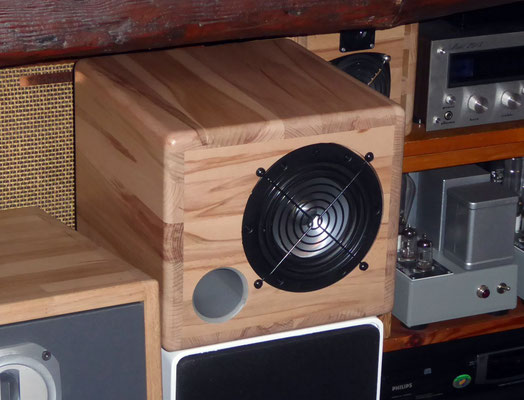

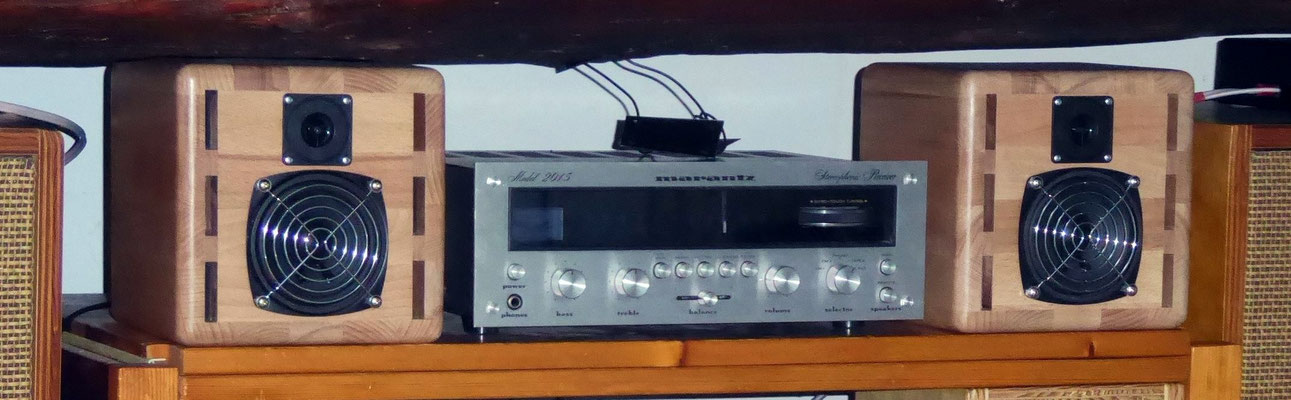

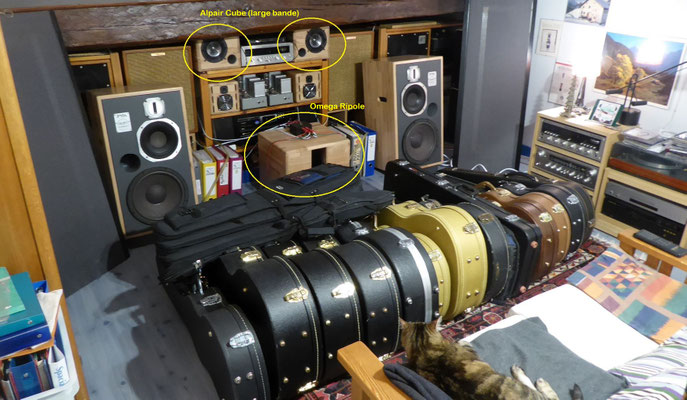

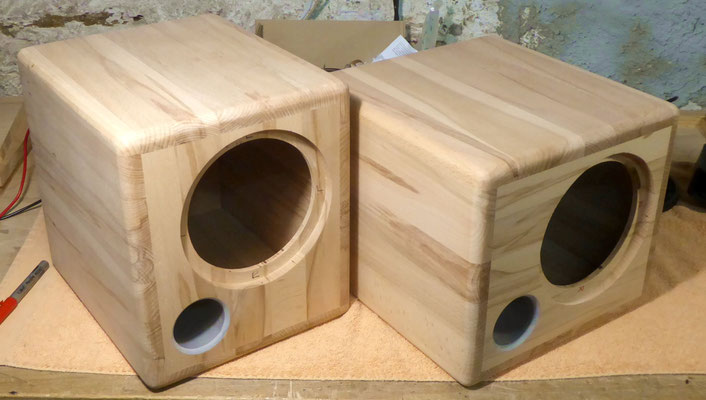

The ALPAIR CUBE

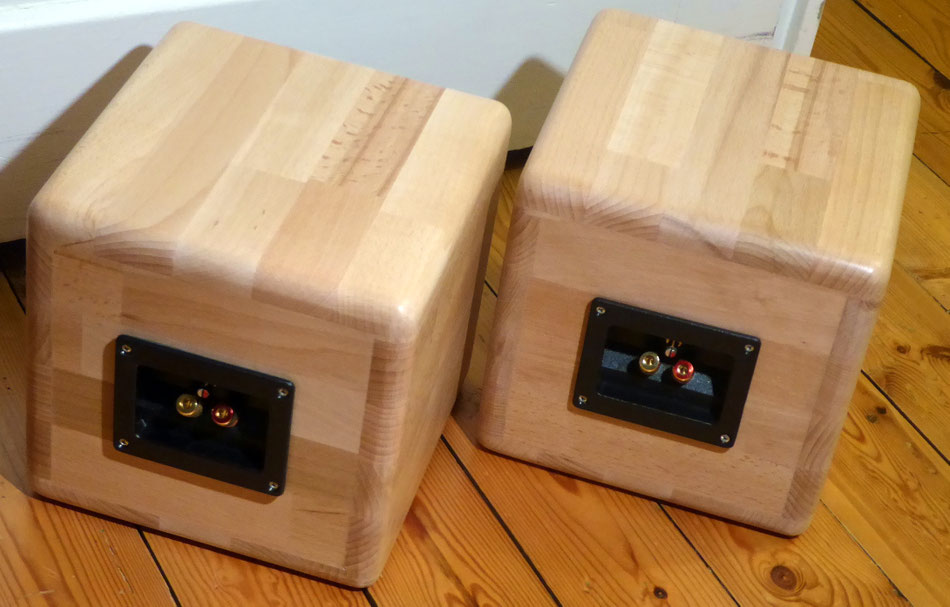

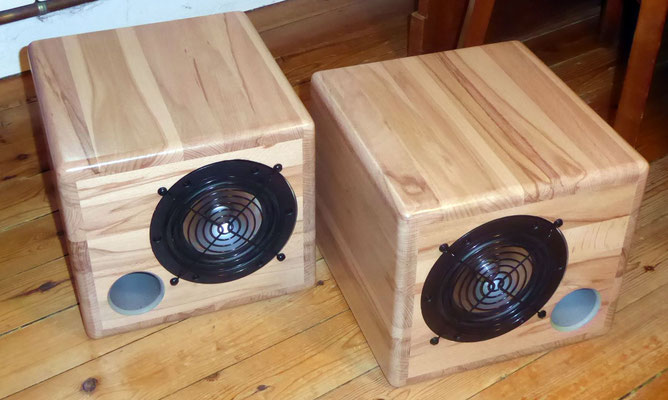

The ALPAIR CUBE est une paire d'enceinte compactes "de bilbliothèque" dans le même esprit que le modèle The CUBE, mais avec un seul haut-parleur Large Bande, de type Bass-Reflex avec remplissage interne. Comme les CUBE, Elles sont prévues pour une utilisation en encoignure, en étageres ou sur un bureau, dos près du mur.



The ALPAIR CUBE is a pair of compact "bookshelf"  loudspeakers, from the Bass-Reflex type, fully stuffed , fitted with a single Wide-Band loudspeaker.



SPECS :

- glued-laminated Beech wood cabinet (Hêtre lamellé-collé) 18mm thick.

- oiled natural satin finish.

- cotton wool full stuffing/damping.

- No crossover nor compensation.

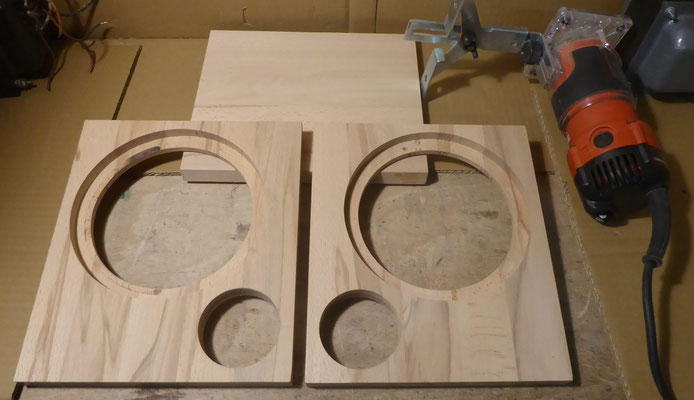

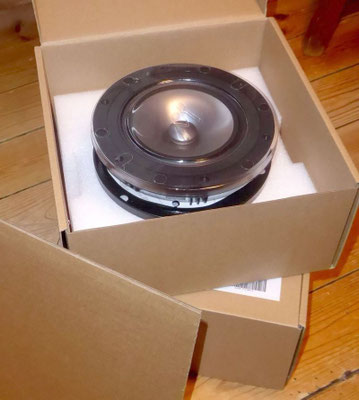

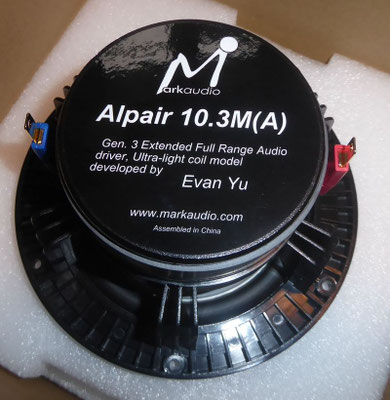

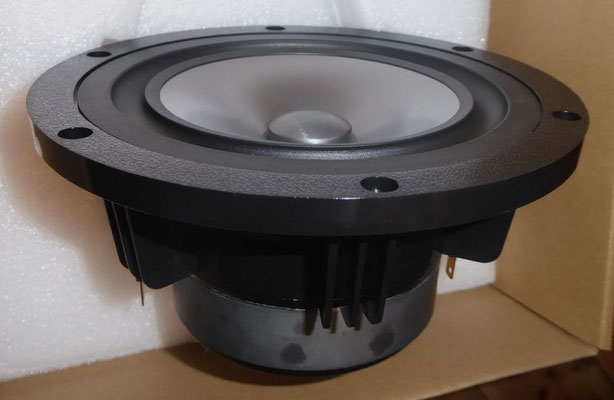

- MarkAudio ALPAIR 10.3M (A) wide-band loudspeaker (4").

- V=12.5L net, tuned at 48Hz.

- LV=220mm, SV=25.52cm2.

- EFF=88dB/w/m.

- PWR=25/30WRMS.

- F3=50Hz, F6=45Hz, F10=38Hz.

- dimensions HxWxD : 275x240x290mm.

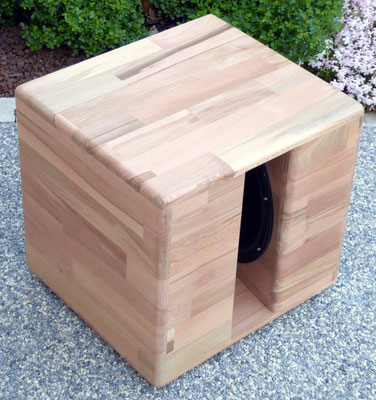

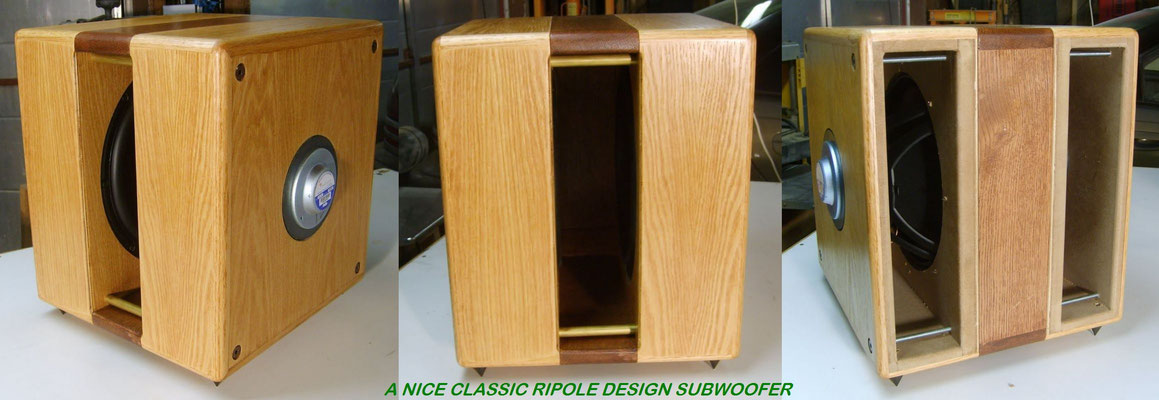

The OMEGA RIPOLE

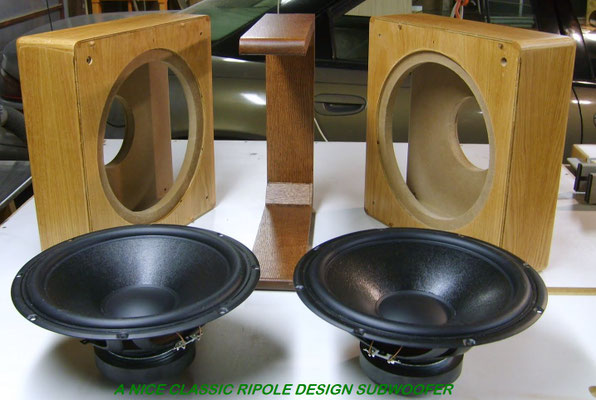

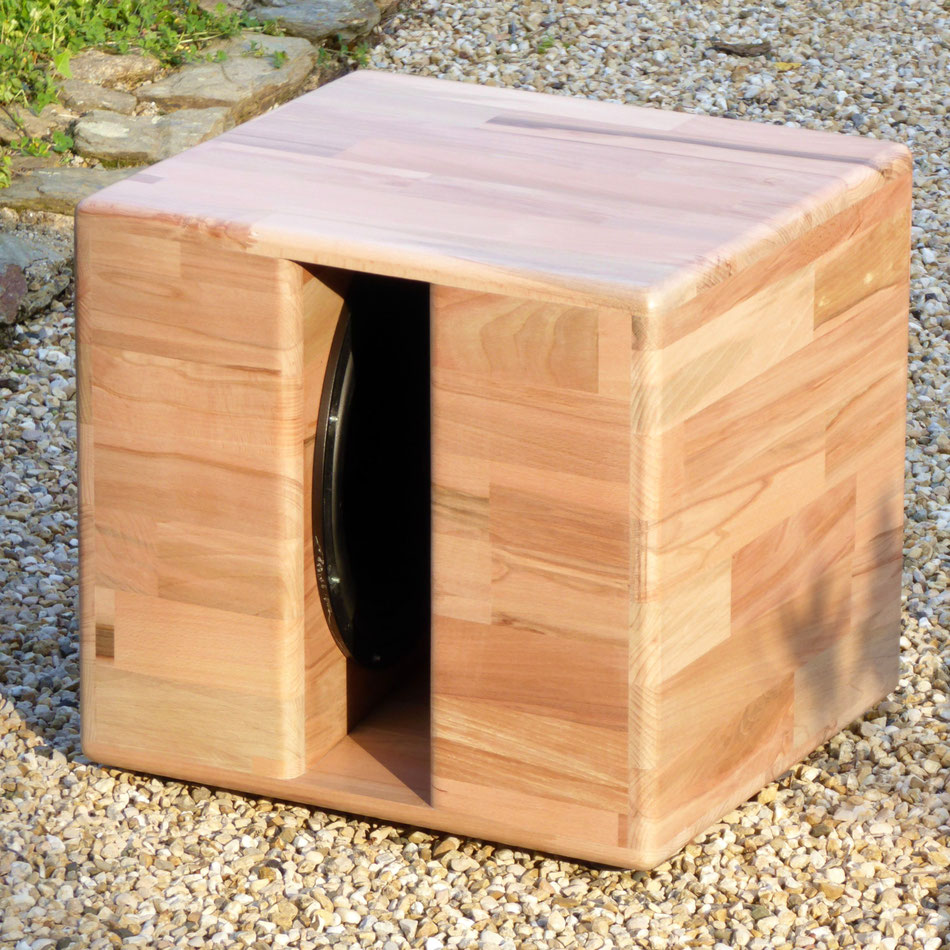

Le Ripole est un subwoofer d'un design particulier, dont le principe a été inventé en 2000 par un ingénieur audiophile Allemand, Axel Ridentahler.



Ses avantages sont très intéressants :



- compacité de l'ensemble, par rapport à un subwoofer classique de performances voisines.

- absence de résonnance de boîte, de coloration : ce n'est pas une charge accordée, elle est apériodique.

- fréquence de résonnance du système abaissée de 8 à 10Hz au dessous de celle du HP à l'air libre.

- rapidité de la réponse, sans traînage, comparable à celle d'une charge close bien amortie.

- directivité en 8 avant/arrière dissymétrique, réduisant l'excitation des résonnances du local d'écoute.

- possibilité de produire des basses très profondes (infra bass).



Il y a cependant quelques inconvénients :



- rendement du système plus faible de 5 à 10dB au dessous du rendement nominal du HP.

- de fait, pour un niveau sonore élevé, nécessité d'utiliser de grands HP (15" ou 18") acceptant une forte puissance et un débattement important (Xmax élevé, supérieur à +/- 10mm).

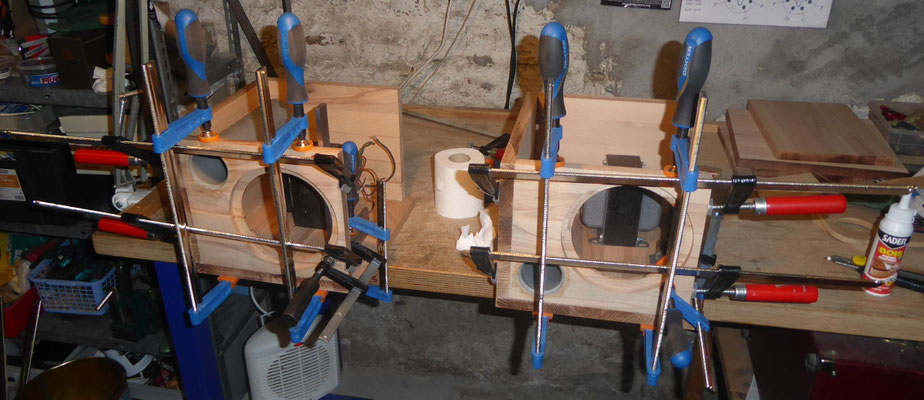

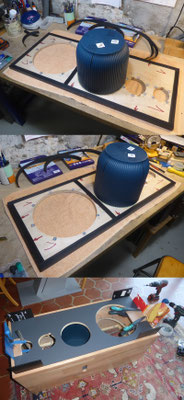

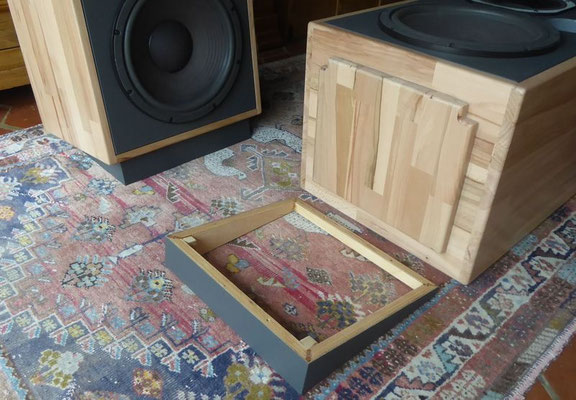

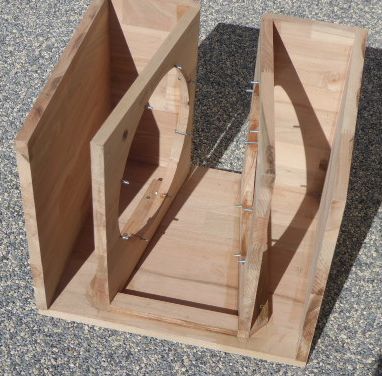

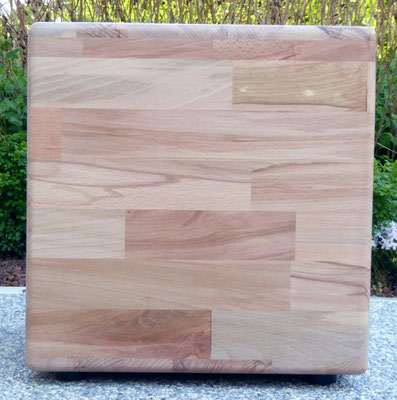

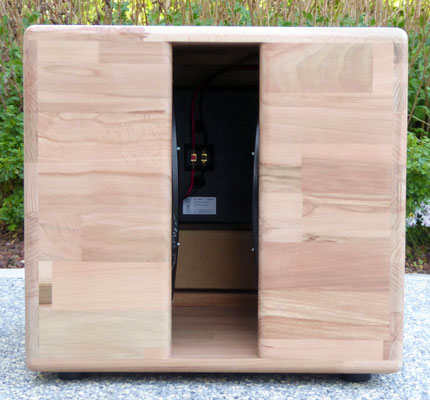

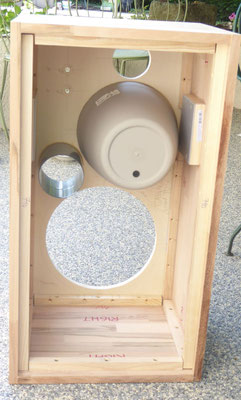

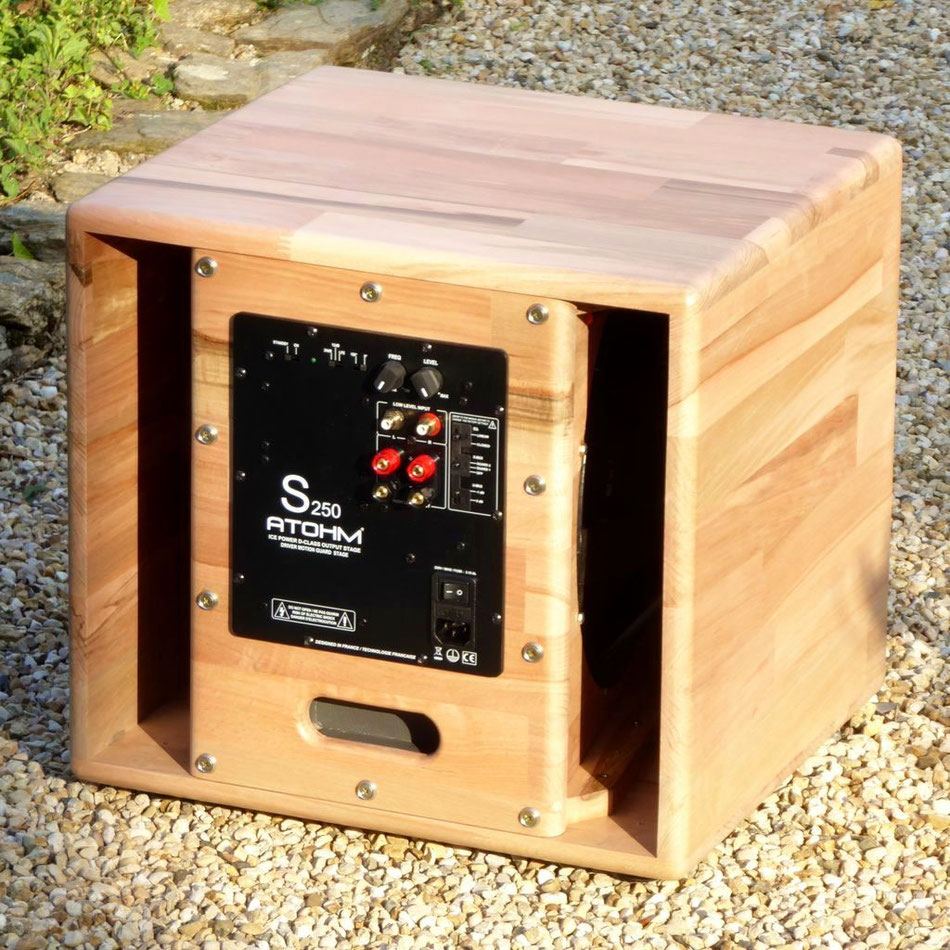

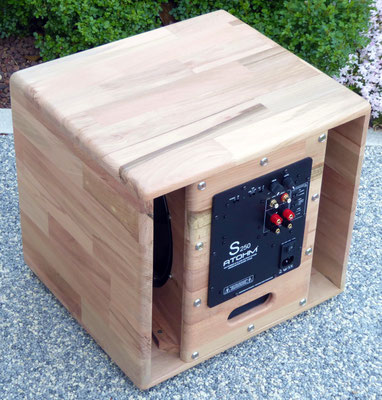

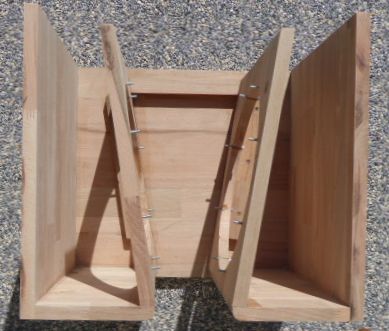

L'OMEGA RIPOLE est un variante de conception avec les panneaux internes non parallèles, formant un "Oméga". Ceci permet d'obtenir les surfaces de bouches requises tout en évitant d'avoir les aimants des HP apparents (ce qui est inésthétique et demande un traitement d'étanchéïté supplémentaire). De plus, cela permet de ménager la place pour embarquer le module d'amplification subwoofer dans le volume.



Et en plus, cela fonctionne tout à fait comme attendu : parfait pour compléter discrètement dans l'infra grave une paire d'enceintes, en deçà de leur coupure basse naturelle, et sans inteférer avec elles (réglage filtre amplificateur subwoofer : FC=40Hz / 24dB/Oct.).

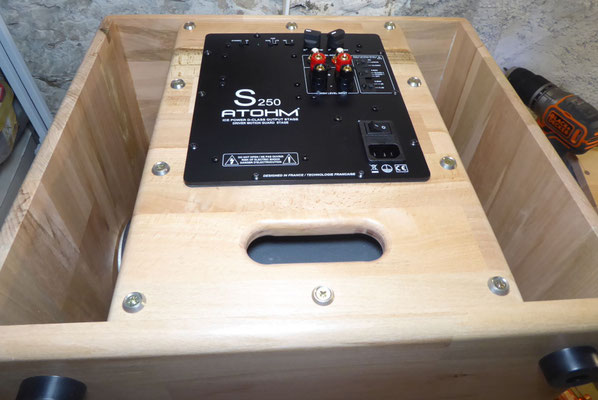

SPECS :

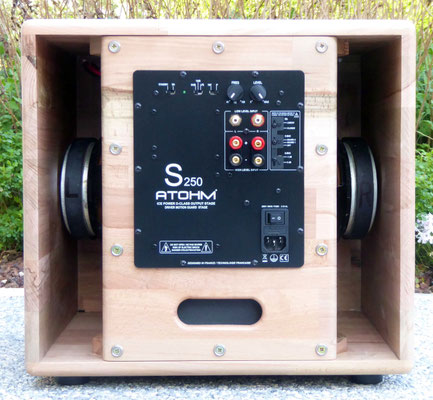

- Subwoofer amplifier module : ATOHM S250-X / 220WRMS @4ohms.

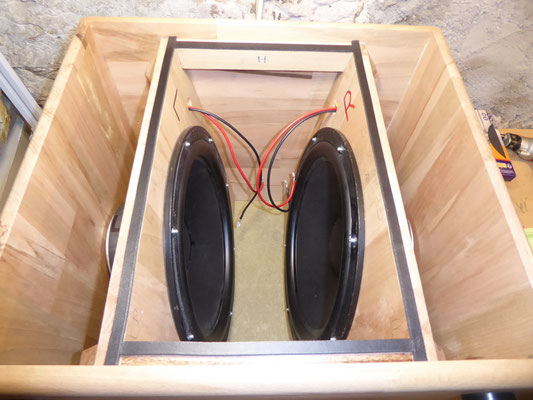

- Speakers : 2X12" BEYMA 12BR70.

- glued-laminated Beech wood cabinet (Hêtre lamellé-collé) 18mm thick.

- oiled natural satin finish.

- removable amplifier panel for access to the speakers.

- external dimensions HxWxL = 400x400x440mm.

- resonant frequency of the system = 19Hz (16 to 22hz hump).

- weight = 21kg.

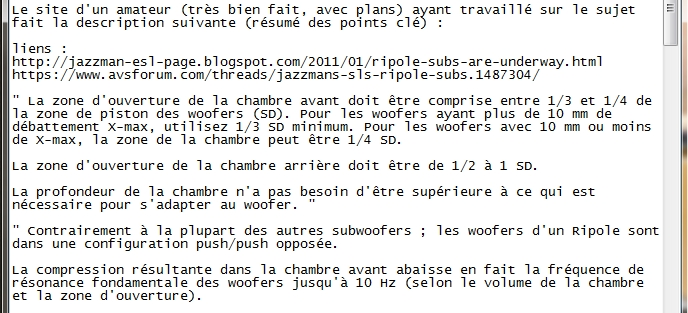

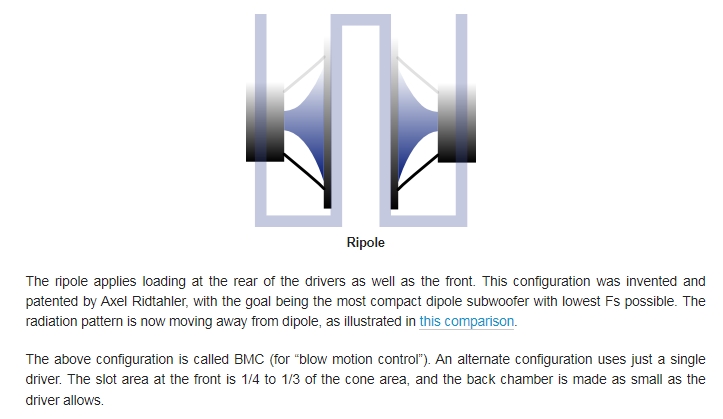

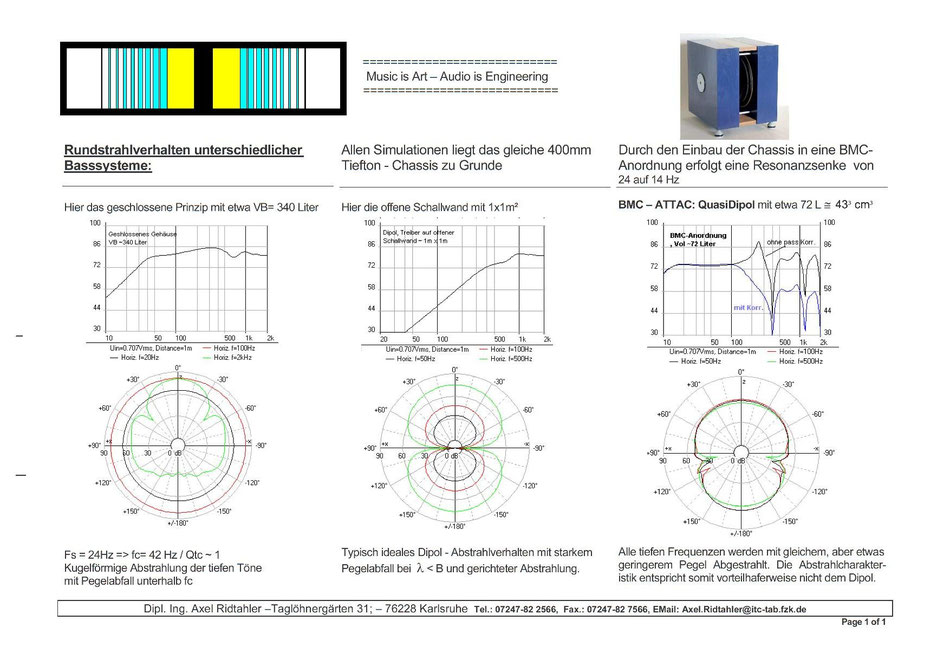

Below, the explanations in English and German about the Ripole subwoofer design :)

No doubt that it is an interesting principle...

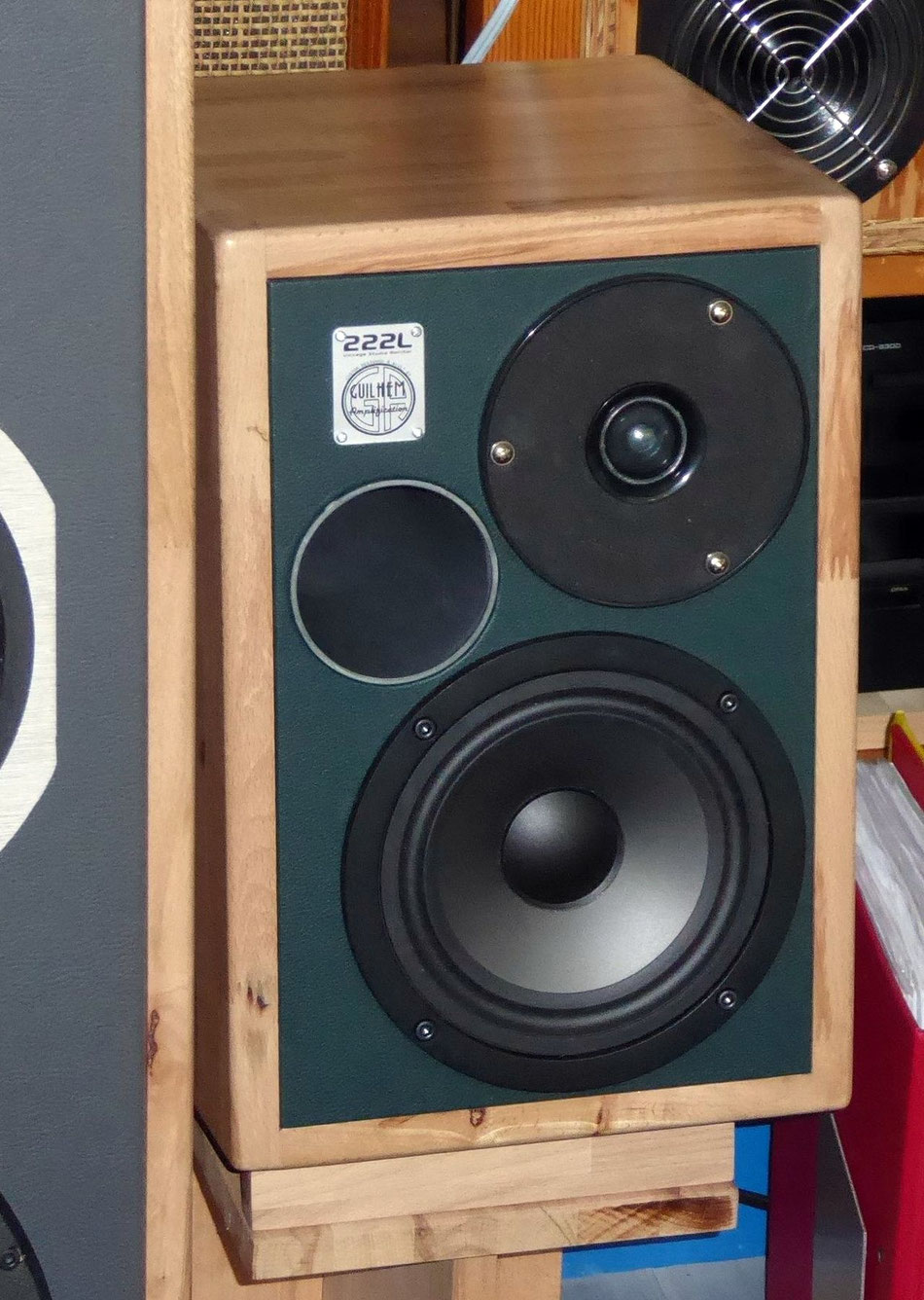

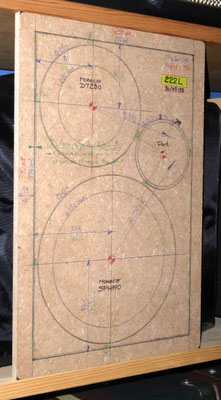

The 222L

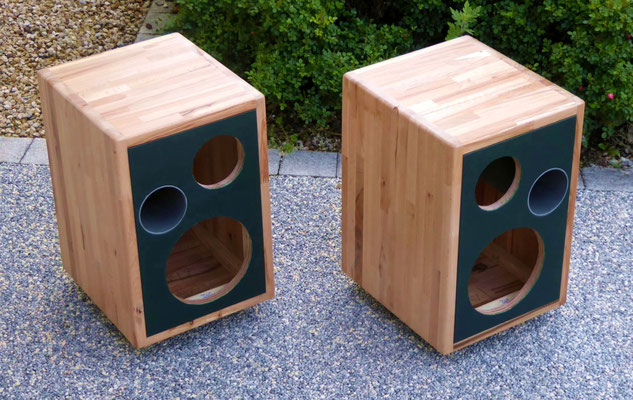

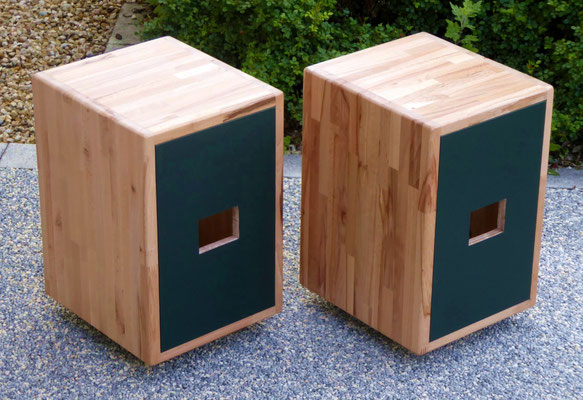

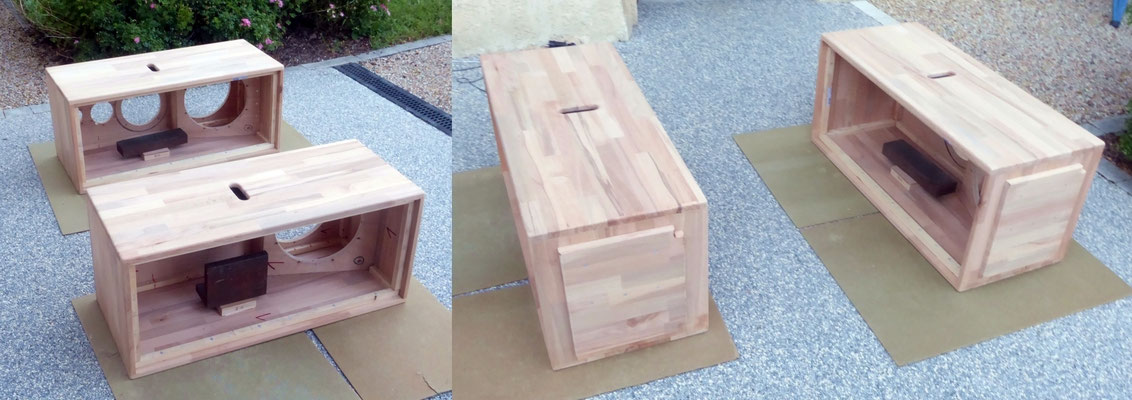

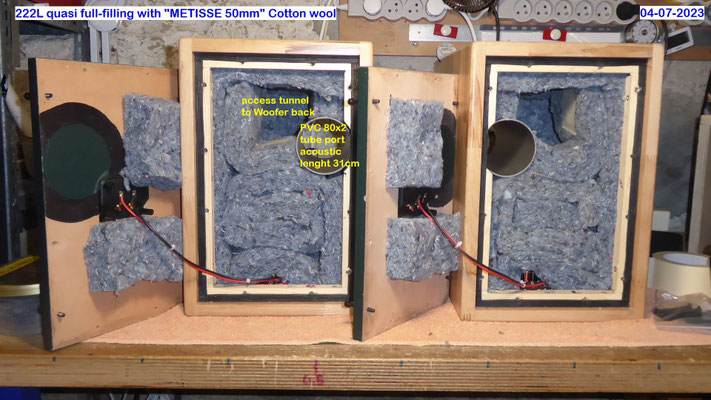

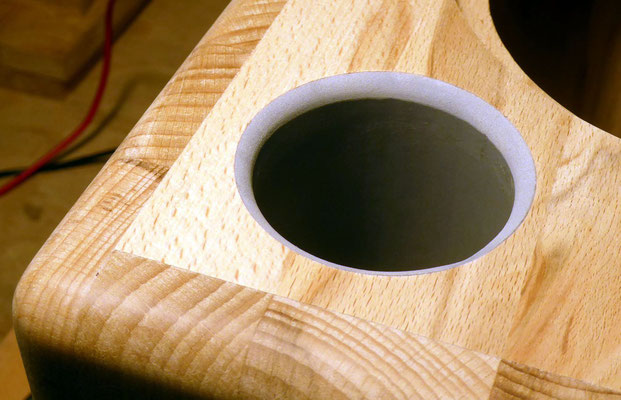

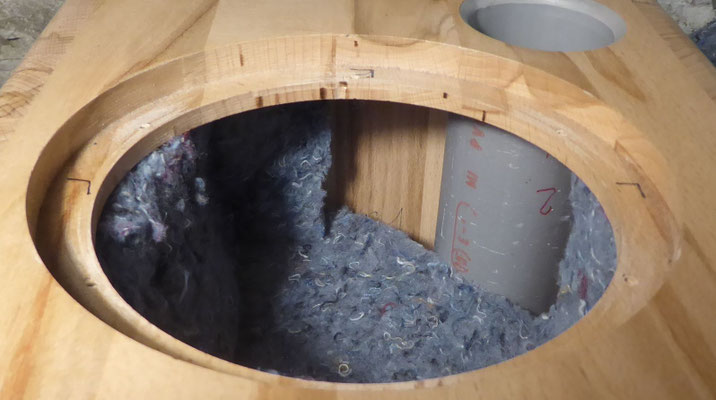

Les 222L sont des enceintes a deux voies Bass-Reflex "semi-compactes", réalisées suivant la même technique de construction que leurs grandes soeurs les 375L.



The 222L are of the Bass-Reflex 2-ways "semi-compact" type. They are assembled following the same construction technique used for their grand-sisters the 375L. A low tuning via a large port allows a good transient response and damping, alongwith interesting bass extension.



SPECS :

- glued-laminated Beech wood cabinet (Hêtre lamellé-collé) 18mm thick.

- oiled natural satin finish.

- dark green tumbled simili leather on front and rear faces.

- cotton wool full stuffing/damping.

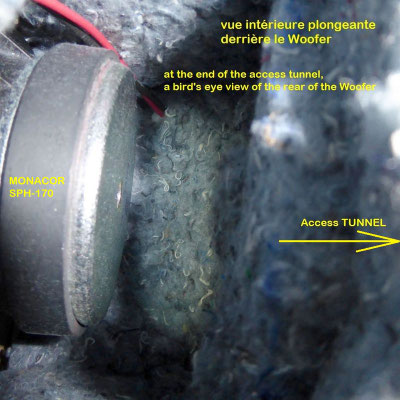

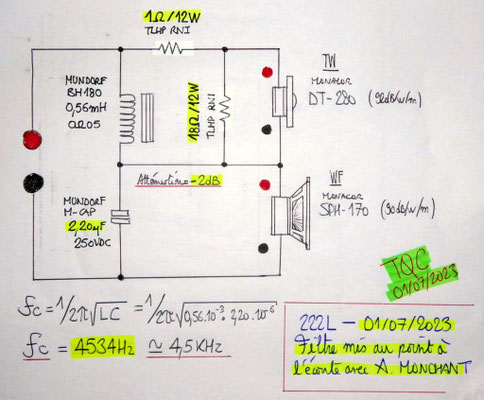

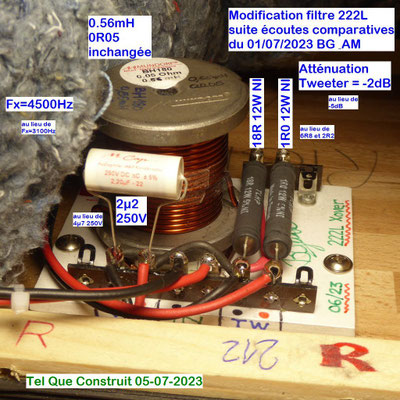

- 6dB/Oct. serial crossover, Fx = 4500Hz, Tweeter L-Pad -2dB.

- MONACOR SPH-170 Woofer-Midrange (7", 1" voice coil)

- MONACOR DT-280 Tweeter (28mm voice coil silk dome).

- V=22L net, tuned at 38.50Hz.

- LV=300mm acoustically compensated, SV=43cm2.

- n=3.1 (overdamped operation, critical value being 5.7)

- EFF=90dB/w/m.

- PWR=20-30WRMS.

- F3=45Hz, F6=37Hz, F10=30Hz.

- dimensions HxWxD : 370x250x280mm.



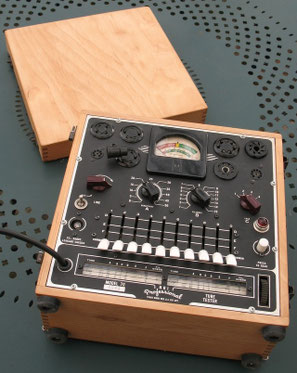

Other Projects...

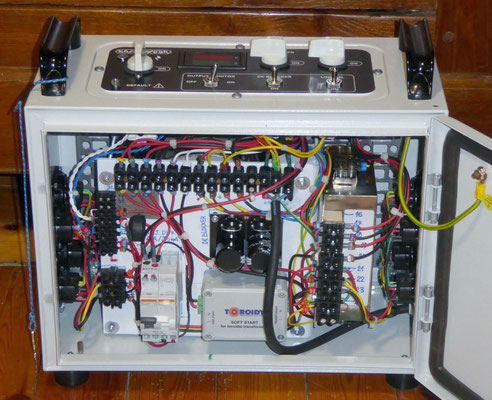

KRAFTWERK Unit

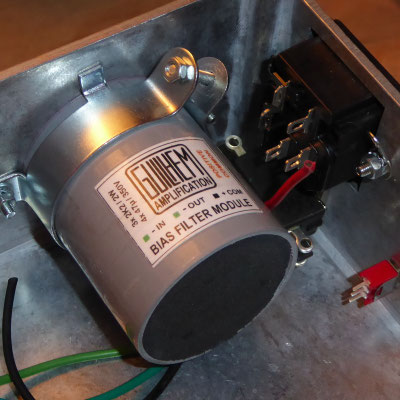

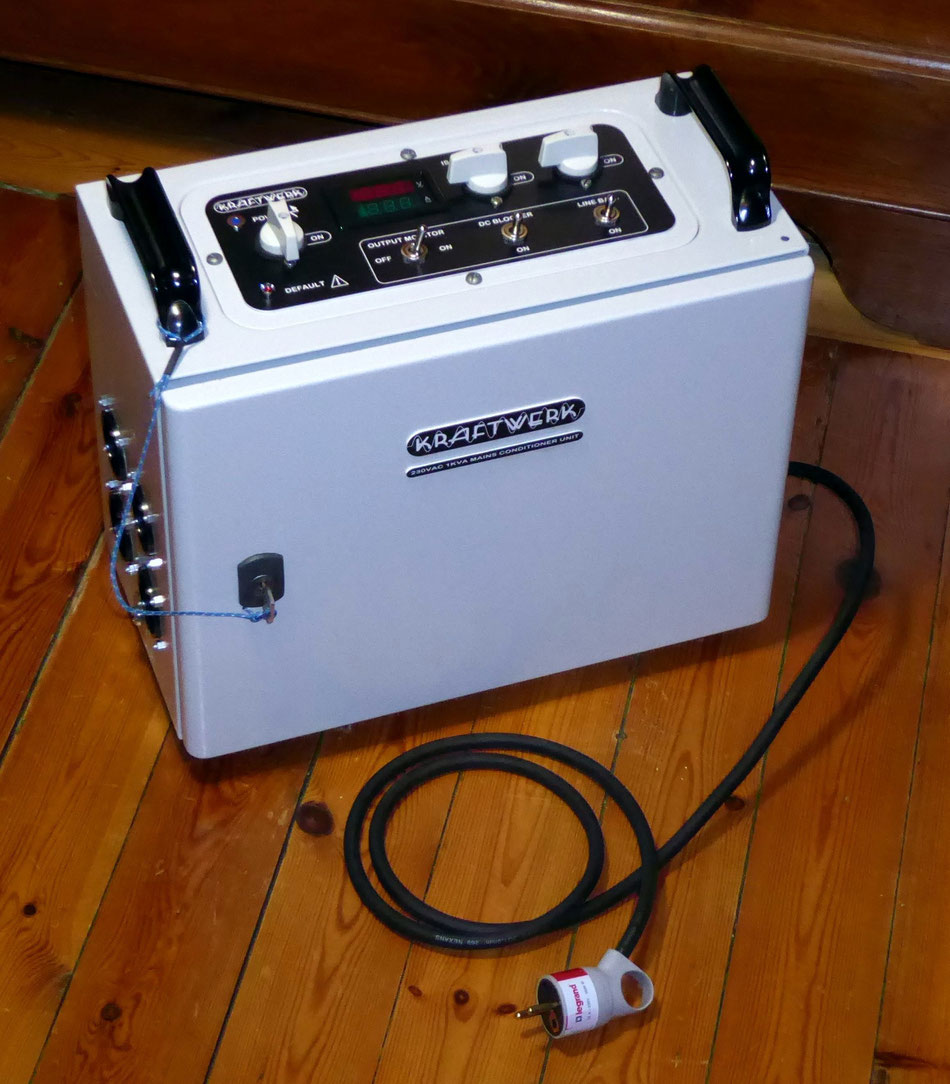

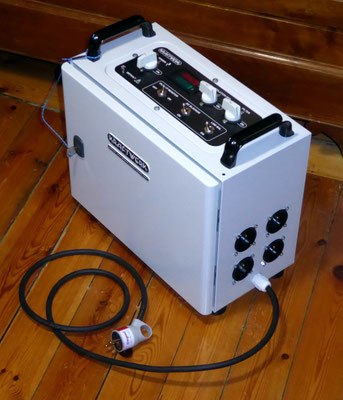

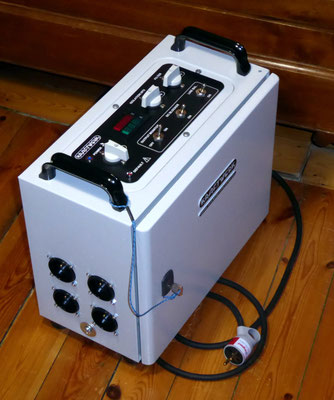

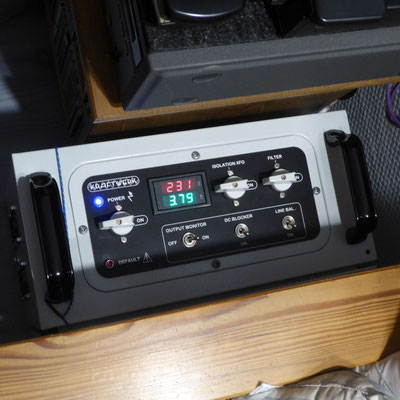

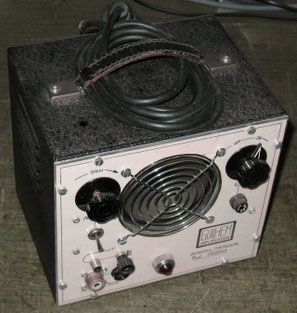

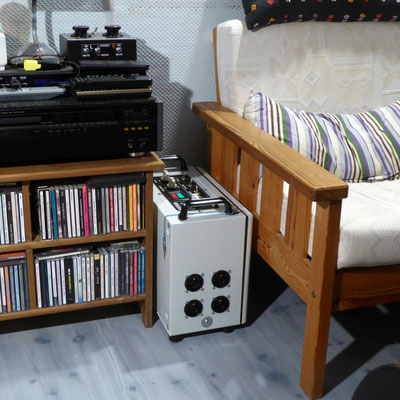

Le KRAFTWERK Unit est un conditionneur secteur qui assure la "dépollution" et la protection de l'alimentation secteur délivrée aux appareils d'une installation Hi-Fi / Audio.



En effet, on sait que le secteur 220-240V 50Hz peut, en certains endroits, être fortement affecté par des parasites à basse et hautes fréquences, par du bruit, des impulsions et du courant continu superposé : ces défauts peuvent nuire aux performances des appareils Hi-Fi / Audio en perturbant leur fonctionnement, voire altérer leur durée de vie...



The KRAFTWERK Unit is mains conditioner which involves the "de-pollution" and the protection of the mains supply delivered to the elements of an Hi-Fi / Audio installation.



Ii is well-known that the mains network can locally be heavily affected by adverse pertubations, like LF and HF interferences, noise, spikes and DC voltage offset : these flaws can harm the performances of the Hi-Fi / Audio gear, even alter their lifespan...



SPECS :



- Bipolar mains ON/OFF switching input with blue "on" pilot light.

- DC offset blocker.

- Inrush current limiter.

- 1000VA separation toroidal shielded encapsuled transformer.

- Electrostatic insulation screen.

- 10VAC voltage drop available for excessive mains voltage.

- Balanced / unbalanced earth line on outputs.

- Schäffner double section high current EMI/RFI filter.

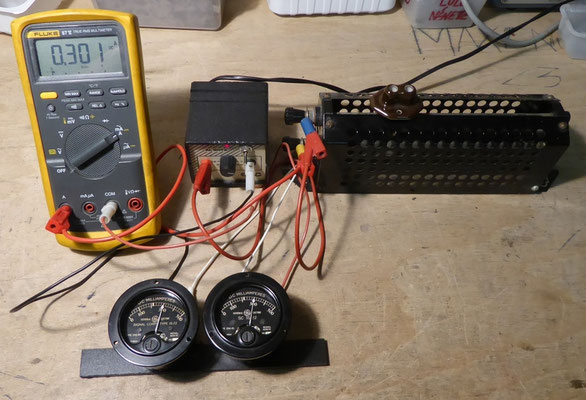

- Voltage and current output monitoring.

- 8 outputs.

- 4A / 30mA differential circuit breaker on output, with red "defaut" pilot light.

- fully encased and Faraday-shielded circuit.

- All features are switchable.




The PRIPRIZZZ

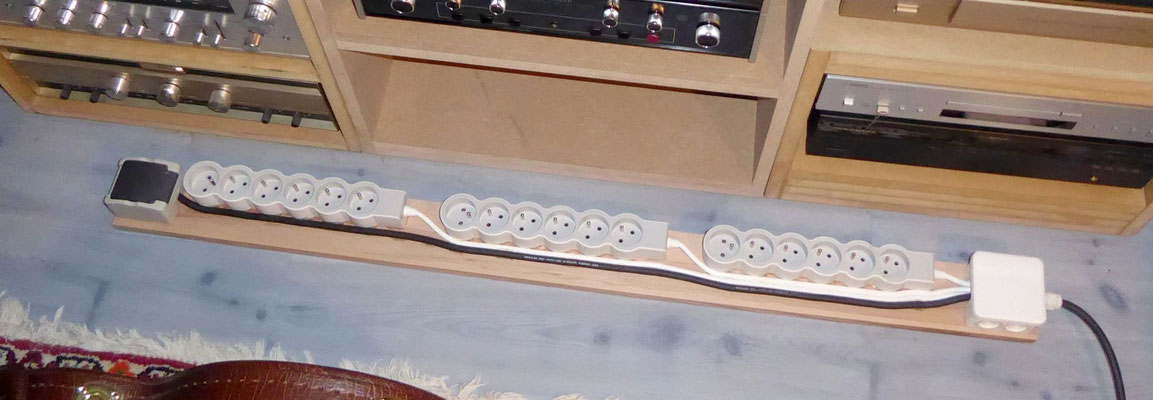

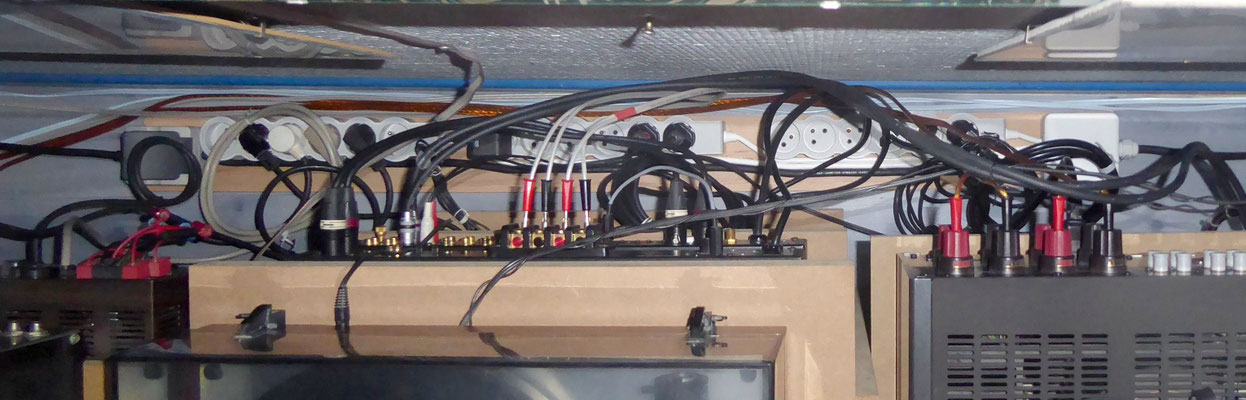

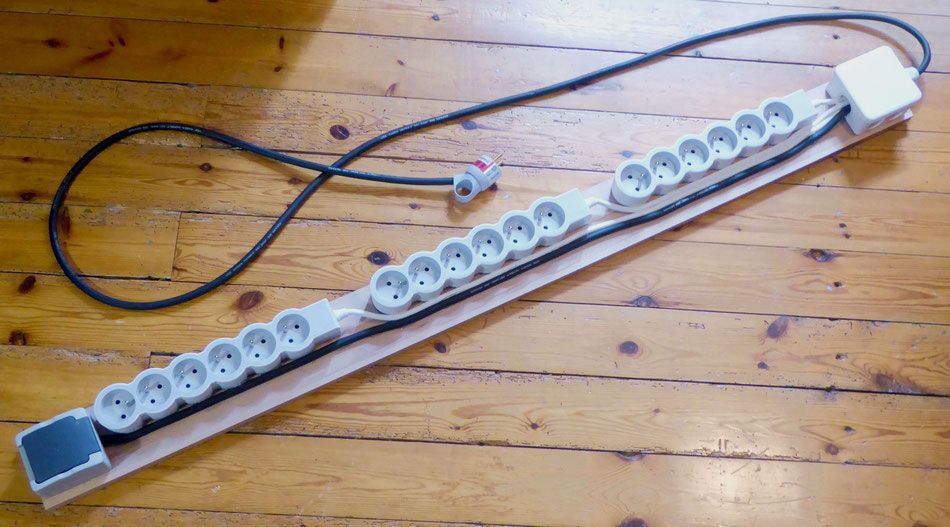

Pour pouvoir alimenter une série d'appareils Hi-Fi / Audio proprement, le plus simple est d'utiliser une barette multiprises adaptée... Et quand elle n'existe pas, eh bien, on la construit soi-même !



For supplying properly all the elements of an Hi-Fi / Audio installation, a dedicated plug ramp is the easiest way... And if the suitable one doesn't exists, then let's DIY it !



SPECS :

- High quality ruggered LEGRAND 6-plugs ramps in parallel, offering 18 connection points.

- separate additional plug.

- 1.5mm2 cable for plugs and 2.5mm2 cable for ramp input.

- soldered contacts between plugs and cables.

- 18mm Glulam Birch wood socket.
